Saturn
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C200
C200

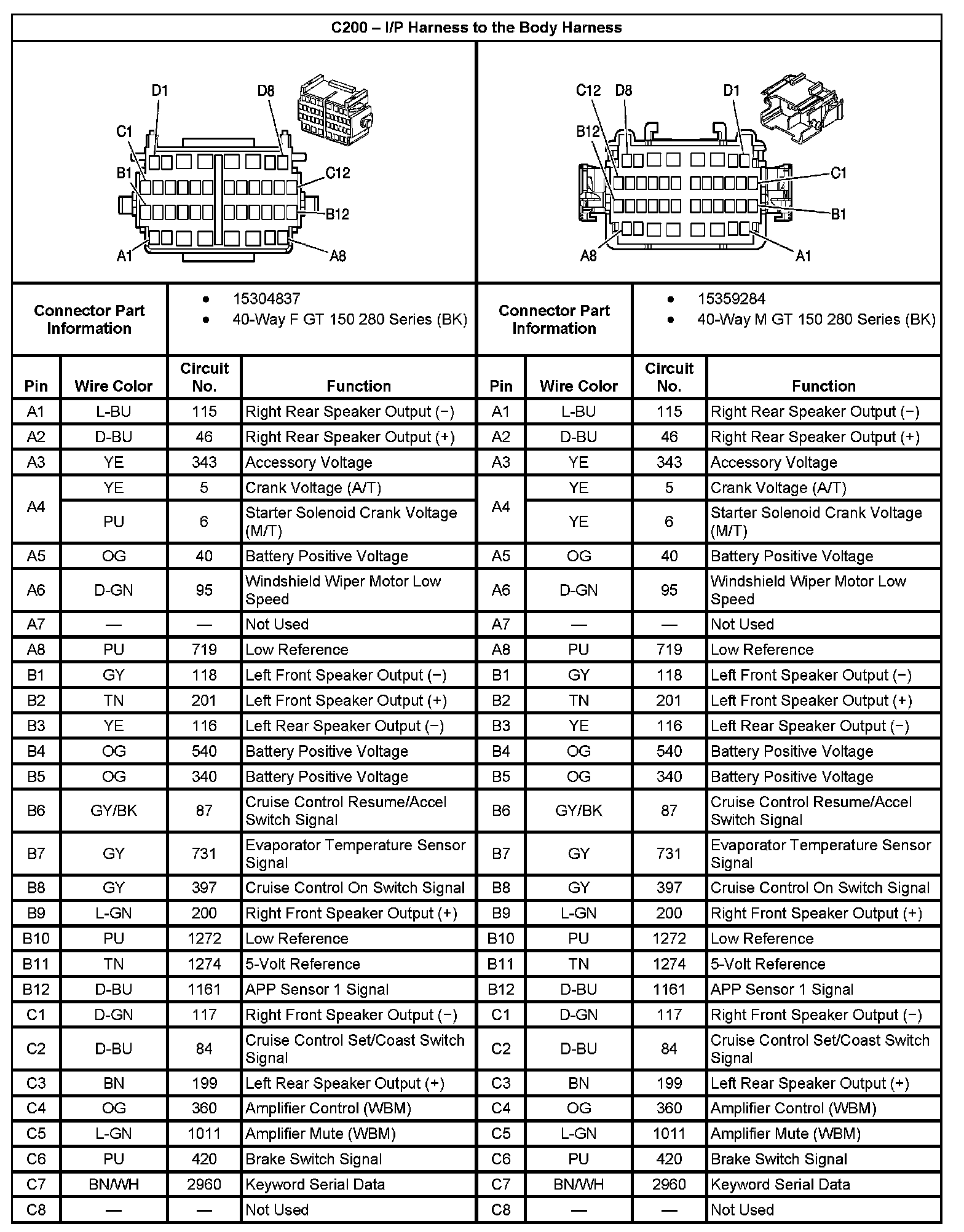

C200 - I/P Harness To The Body Harness (Part 1):

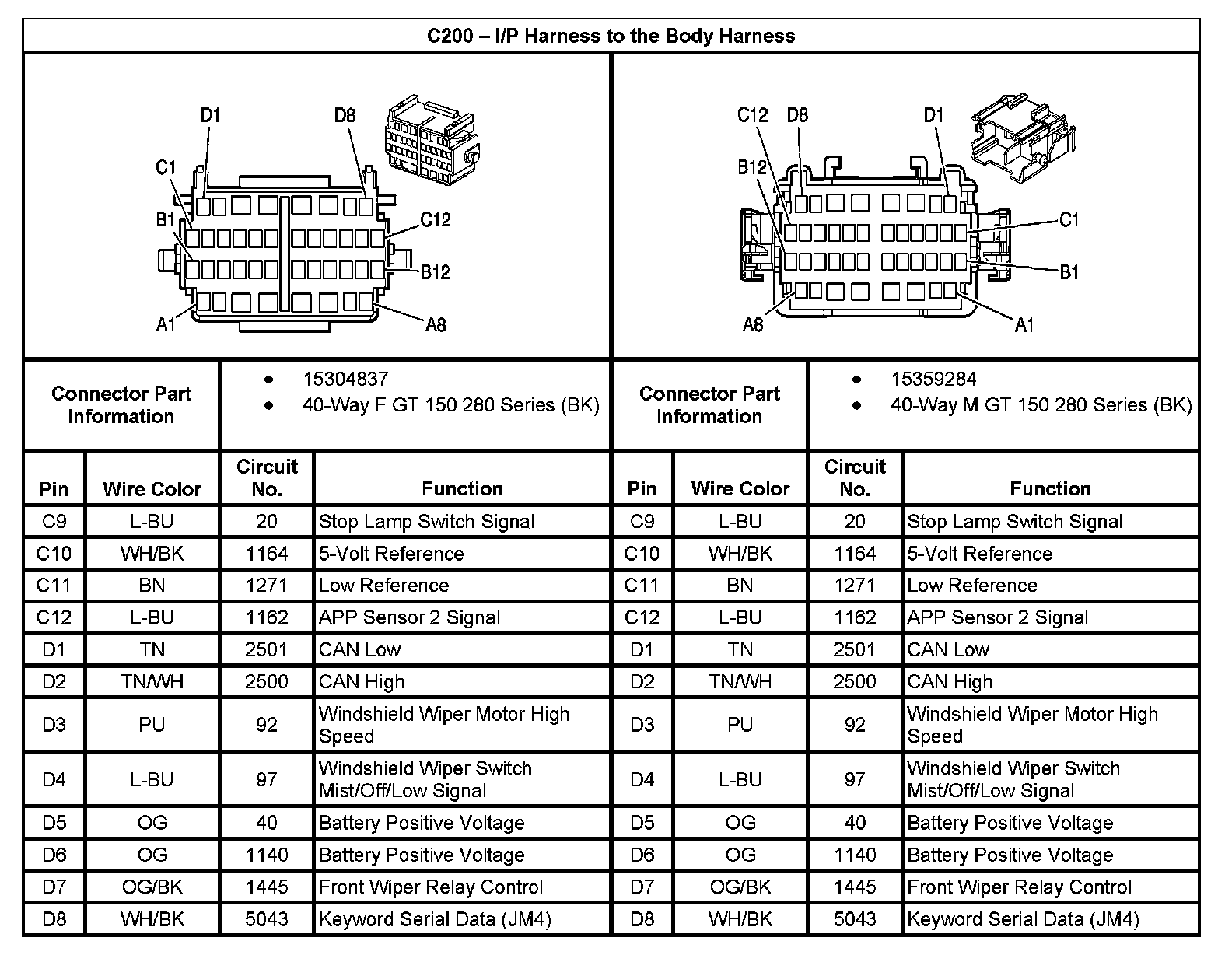

C200 - I/P Harness To The Body Harness (Part 2):
