Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier

Instrument Cluster / Carrier

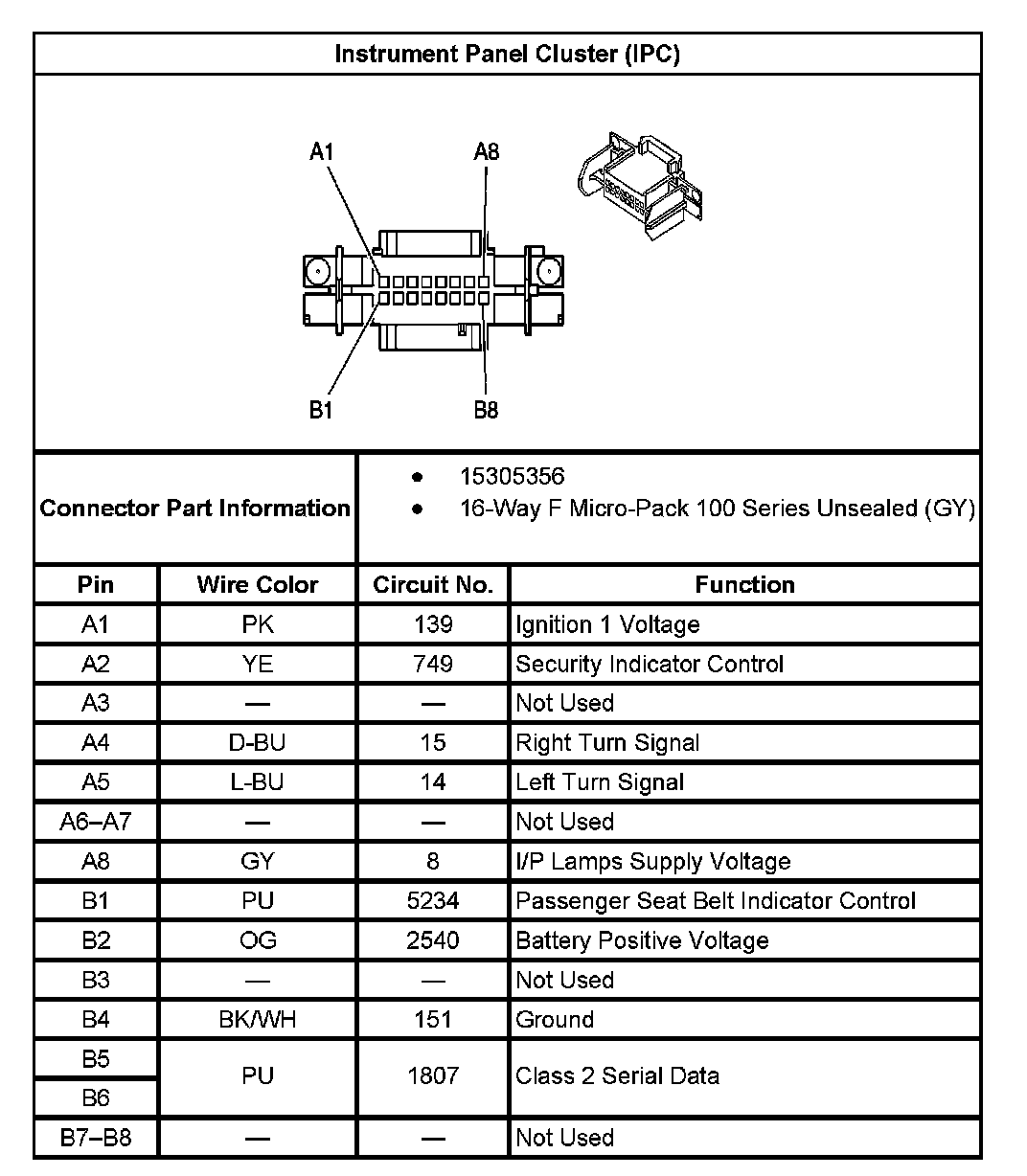

Instrument Panel Cluster (IPC):
