Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor

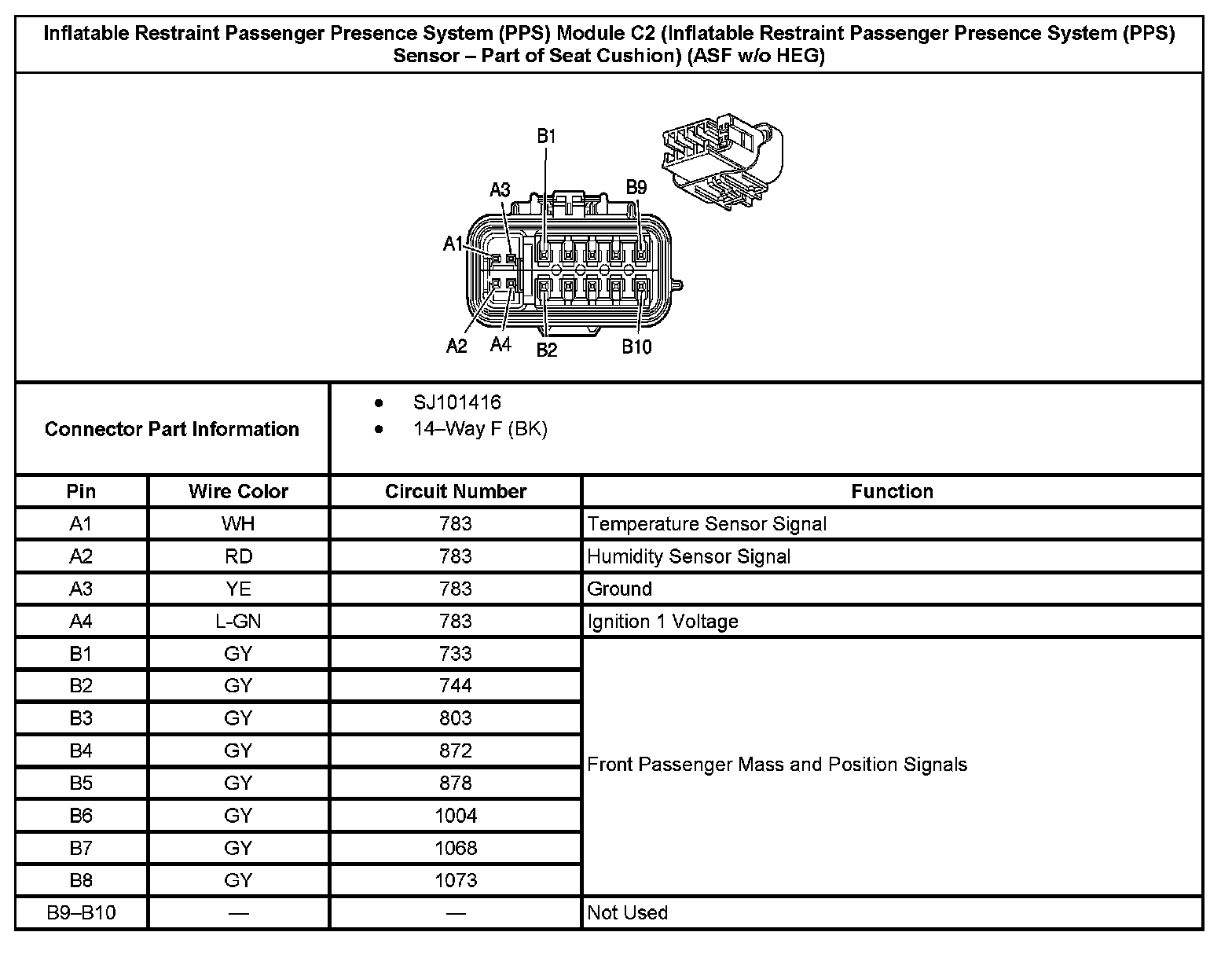

Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor

Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor - Part Of Seat Cushion) (With RPO Code ASF Without HEG):
