Saturn
>>
2006
>>
VUE 2WD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block - I/P C3
Fuse Block - I/P C3

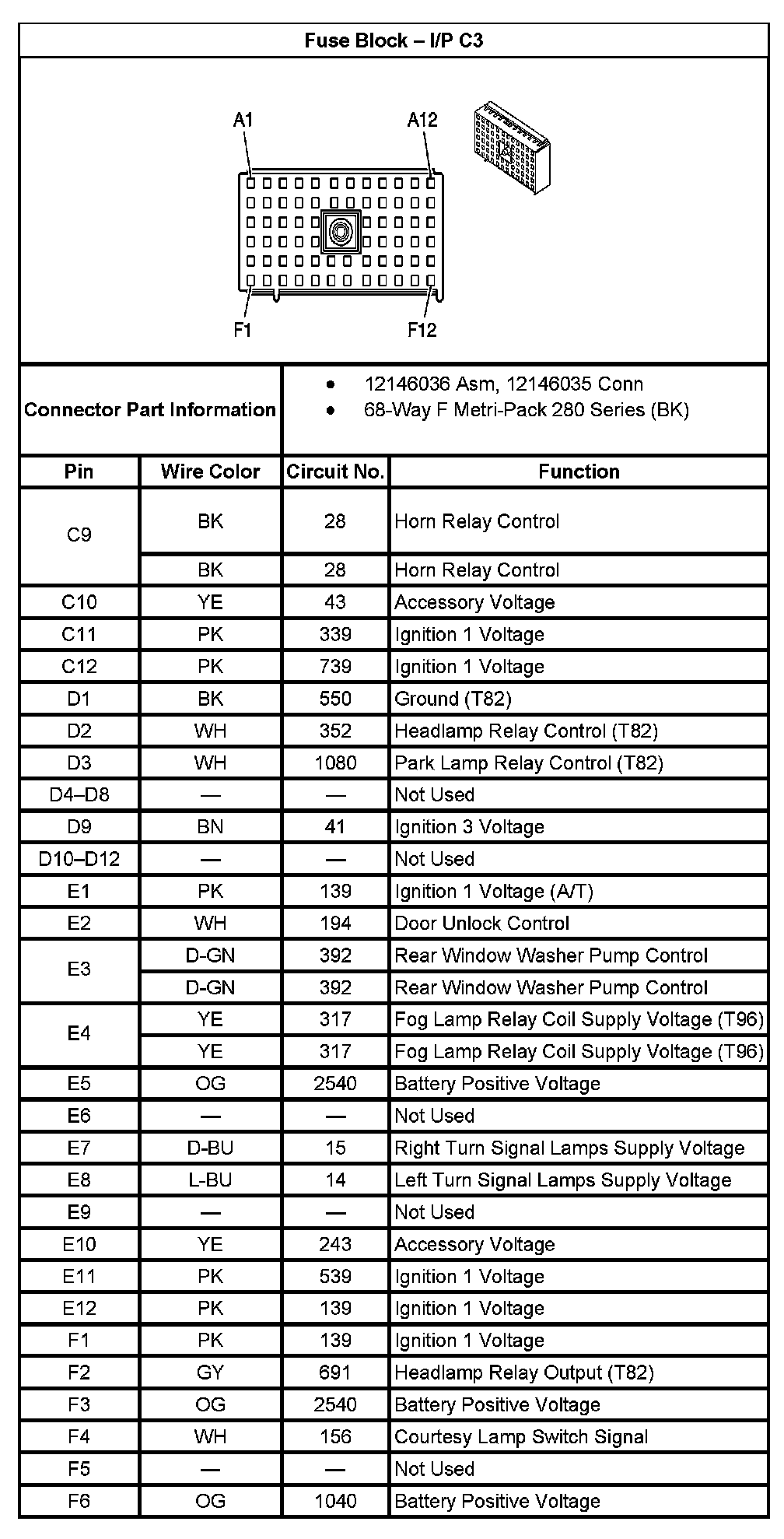

Fuse Block - I/P C3 (Part 1):

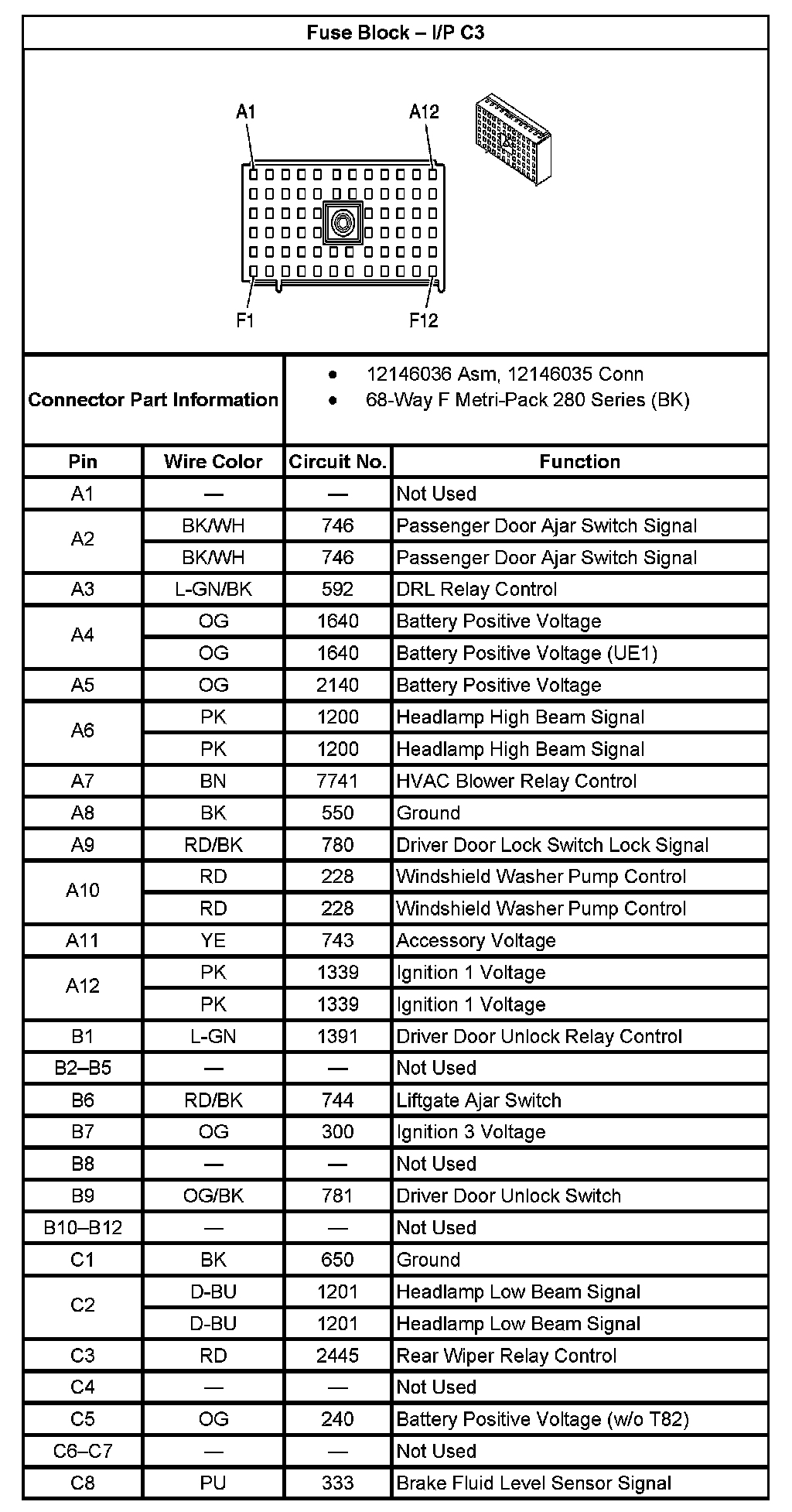

Fuse Block - I/P C3 (Part 2):
Fuse Block - I/P C3 (Part 3):
