Inflatable Restraint Steering Wheel Module

Inflatable Restraint Steering Wheel Module Coil C1 (Inflatable Restraint Steering Wheel Module):



Inflatable Restraint Steering Wheel Module Coil C2 (Inflatable Restraint Steering Wheel Module):



Inflatable Restraint Steering Wheel Module Coil C3:

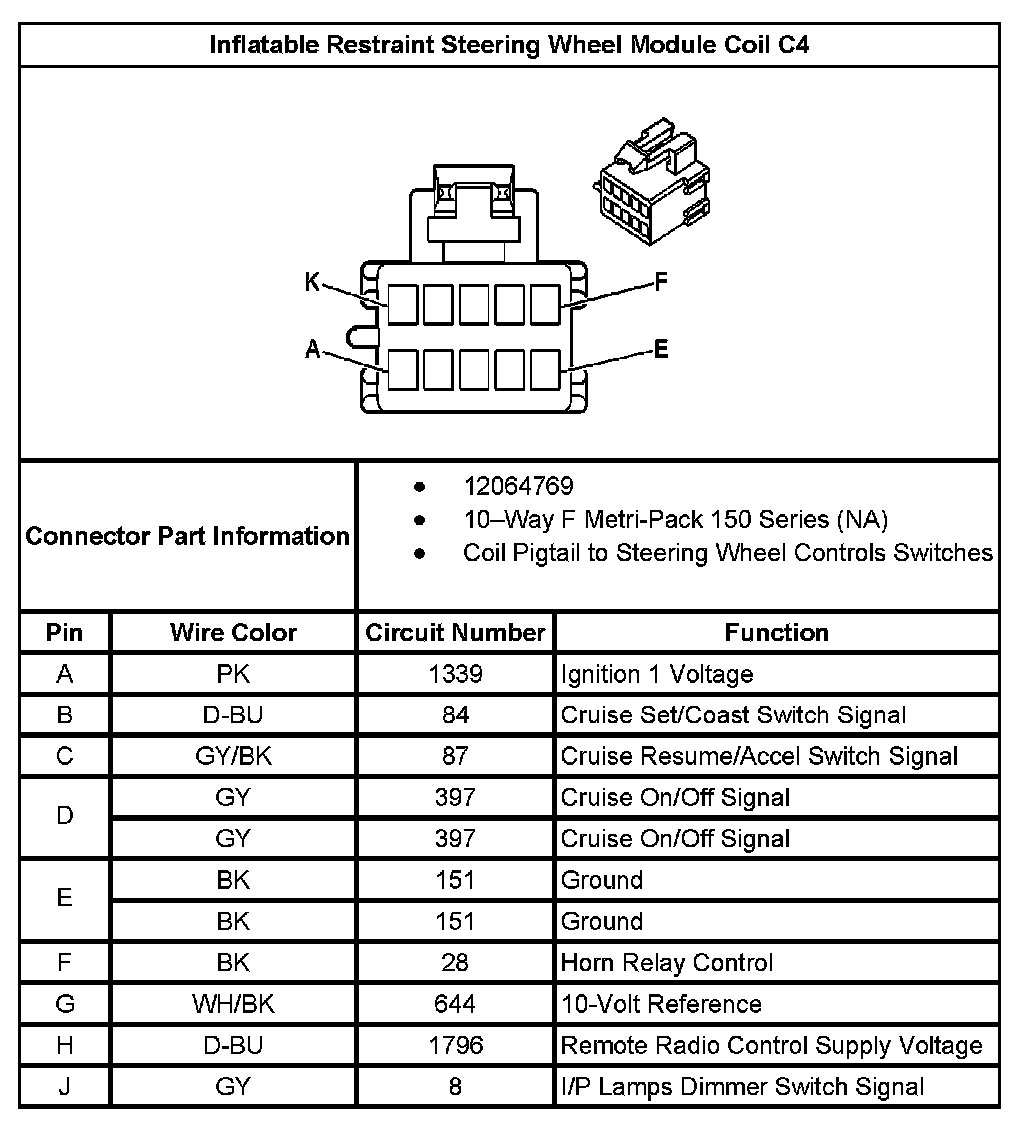

Inflatable Restraint Steering Wheel Module Coil C4:



Inflatable Restraint Steering Wheel Module Coil C5:
