Inflatable Restraint Passenger Presence System (PPS) Module

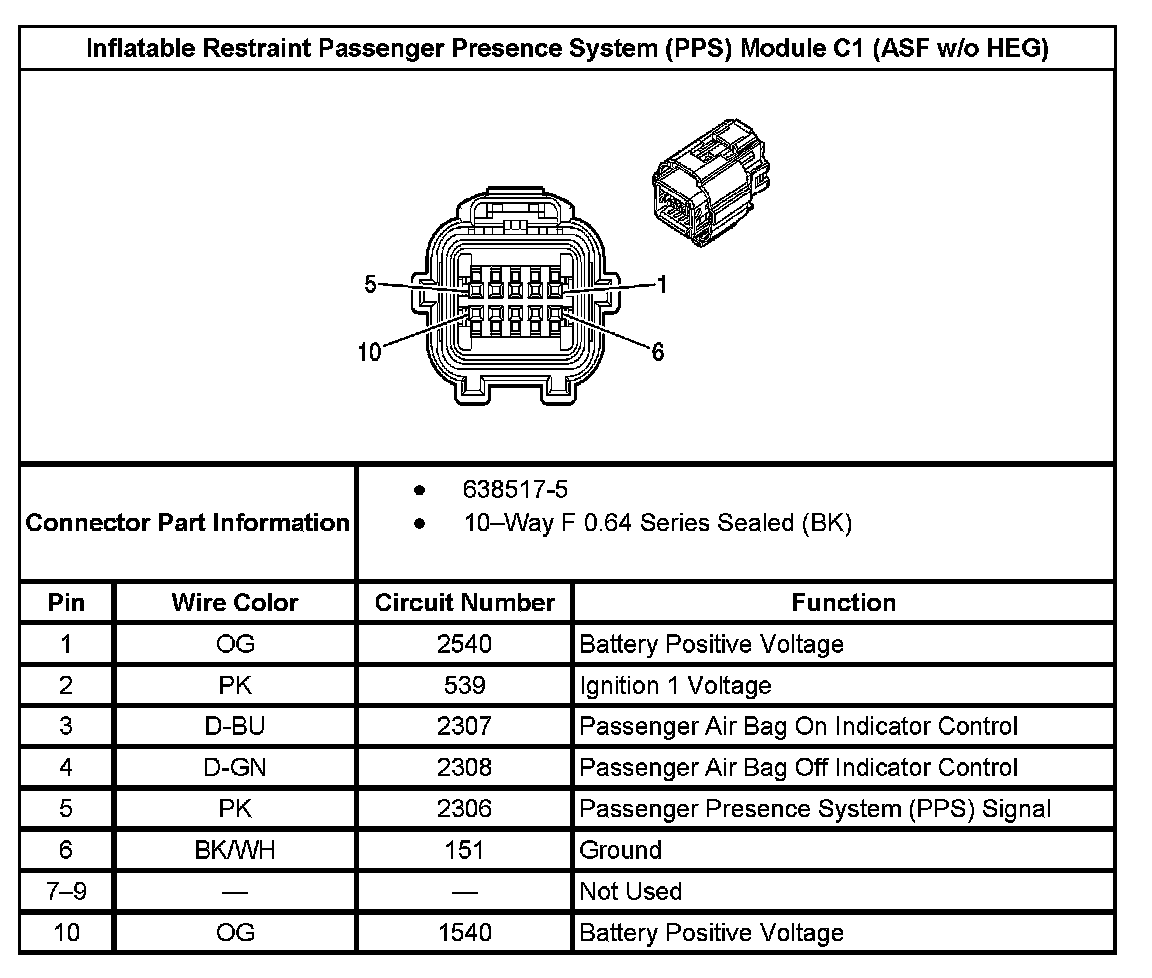

Inflatable Restraint Passenger Presence System (PPS) Module C1 (With RPO Code ASF Without RPO Code HEG):



Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor - Part Of Seat Cushion) (With RPO Code ASF Without HEG):
