Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Components

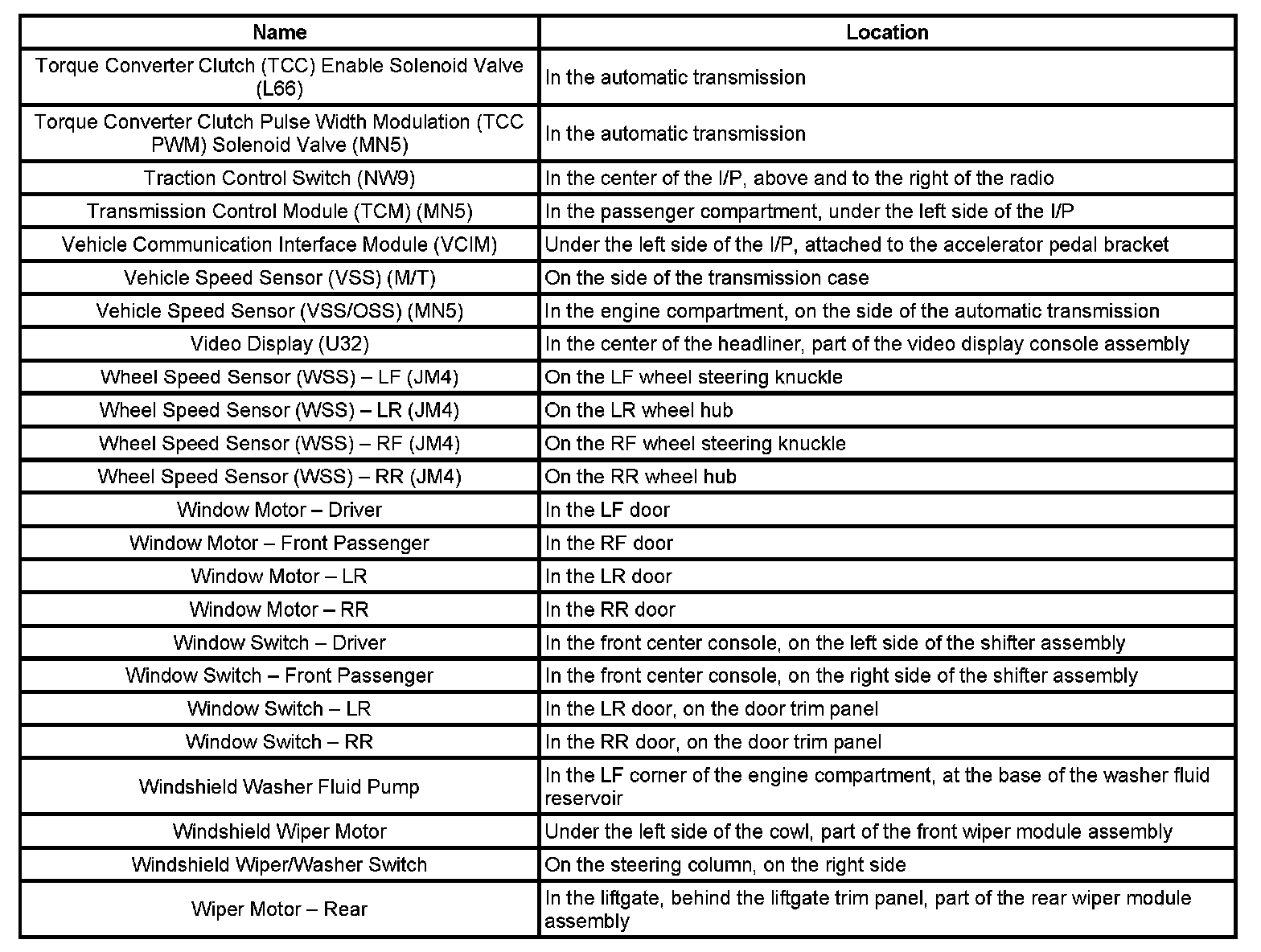

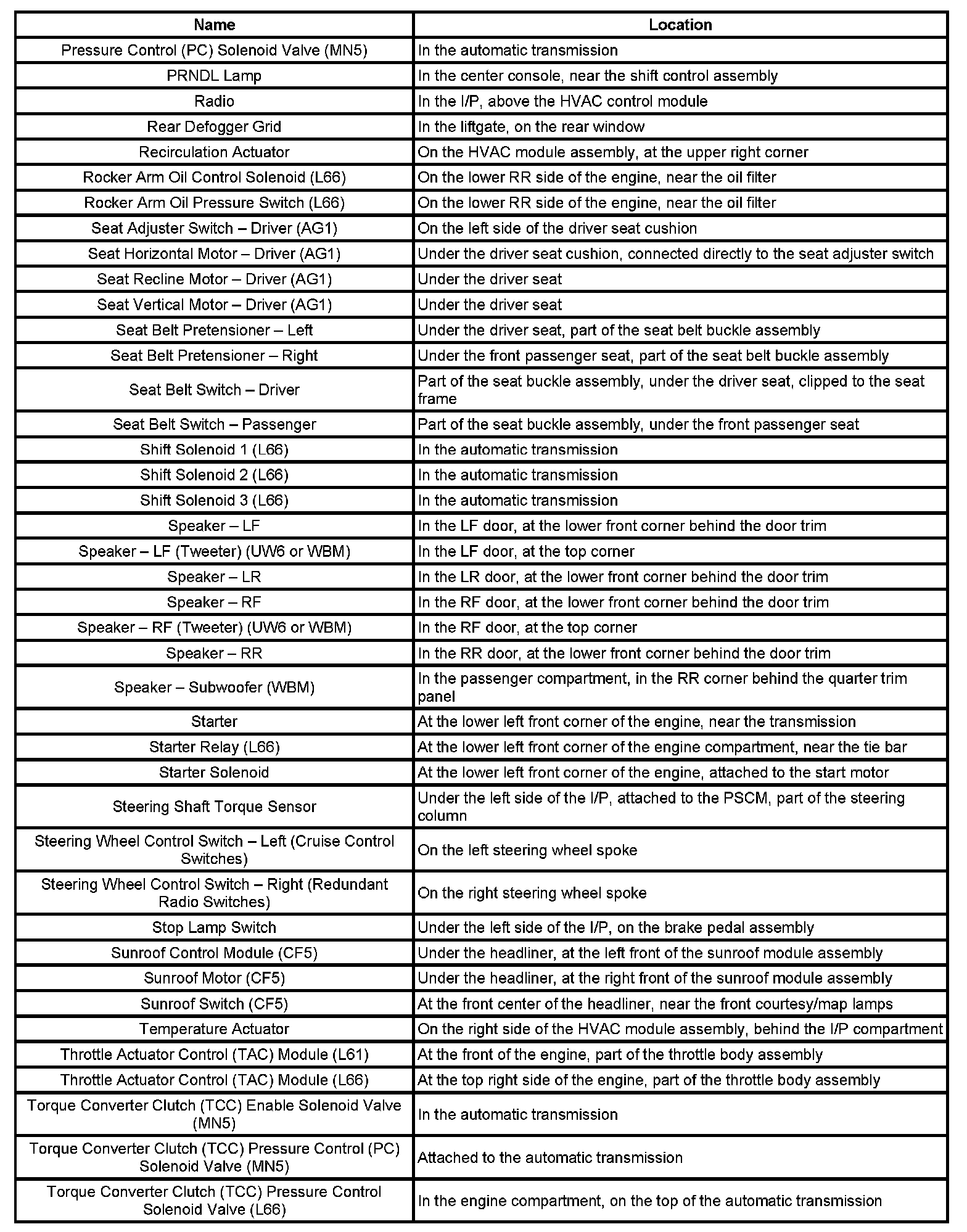

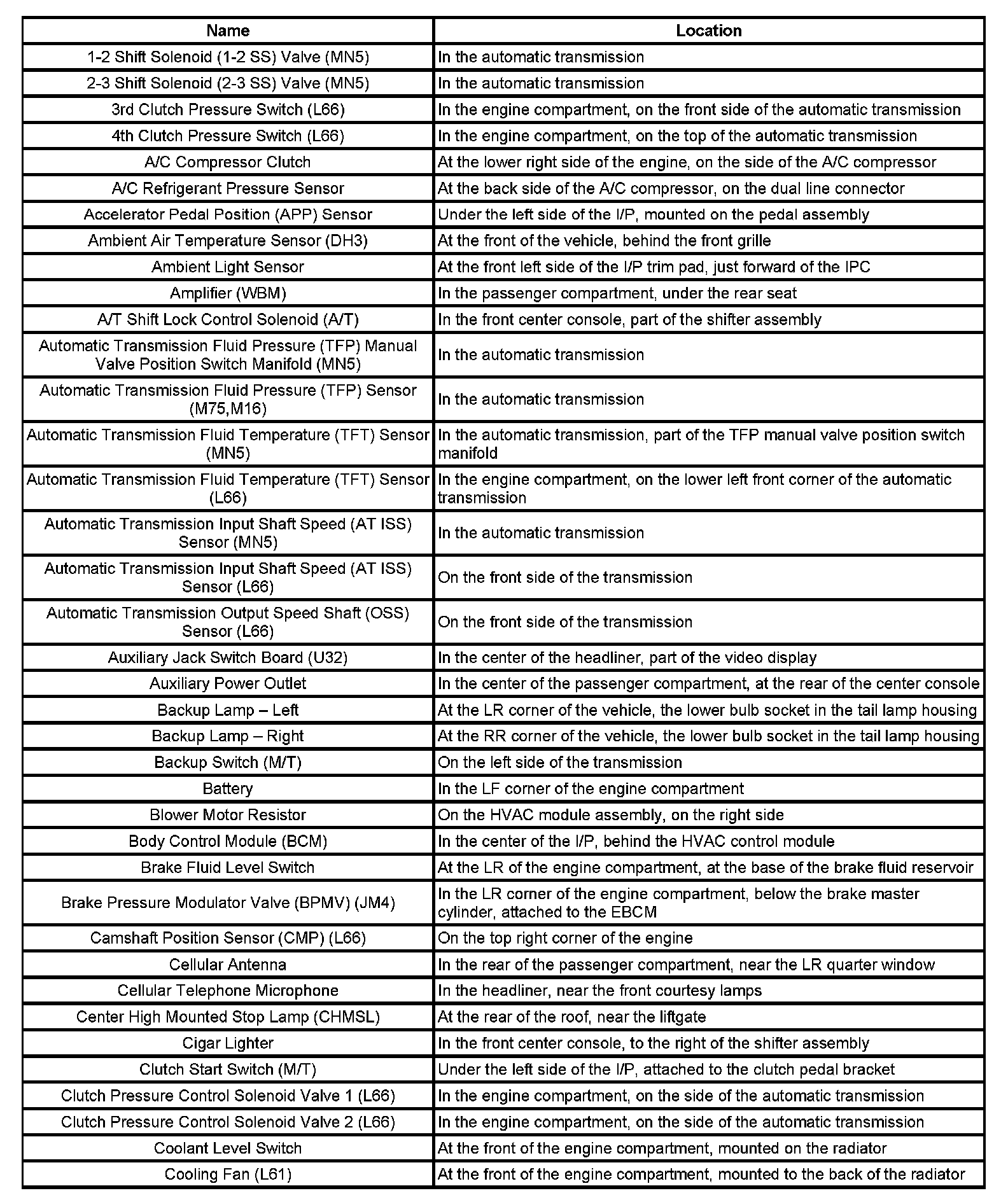

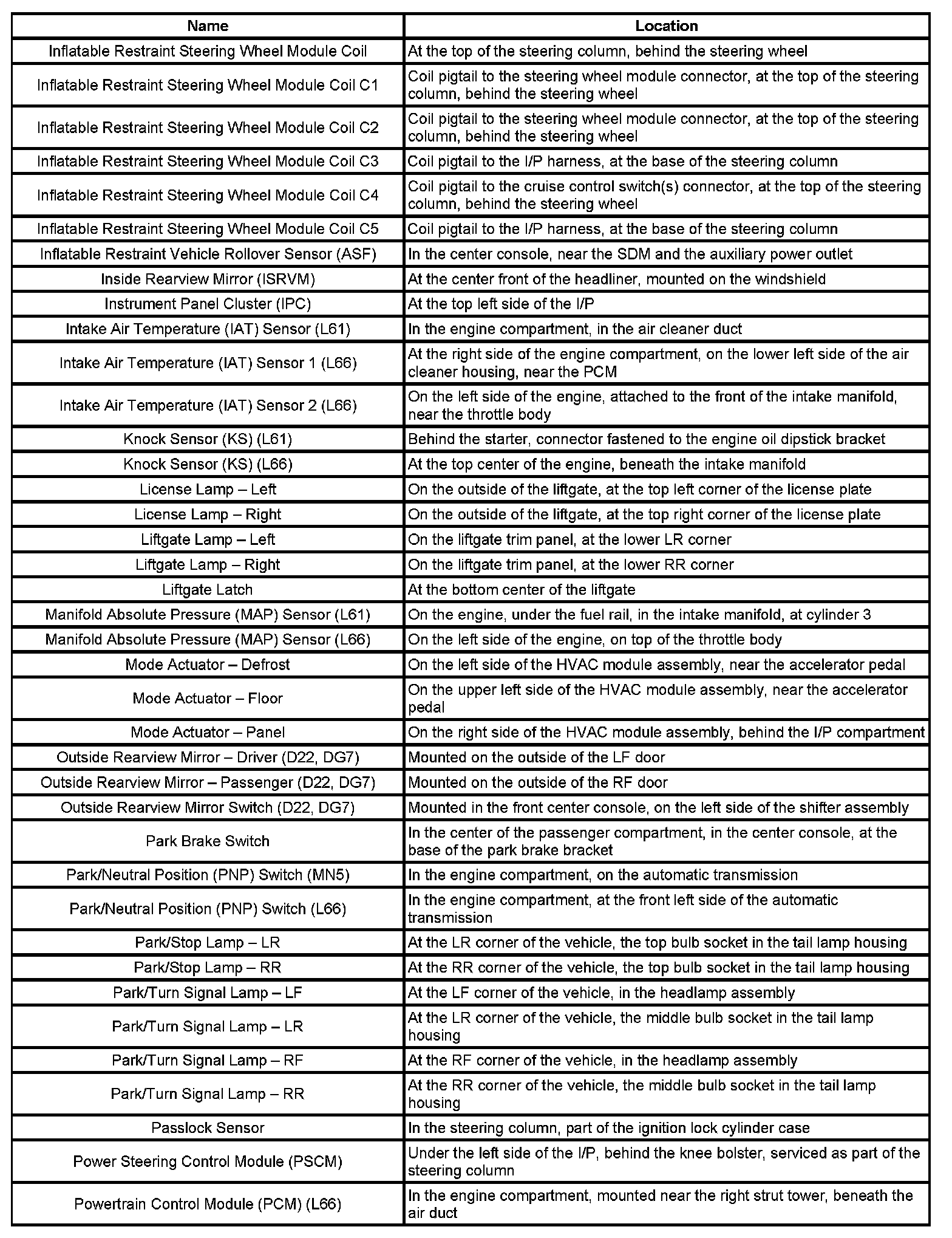

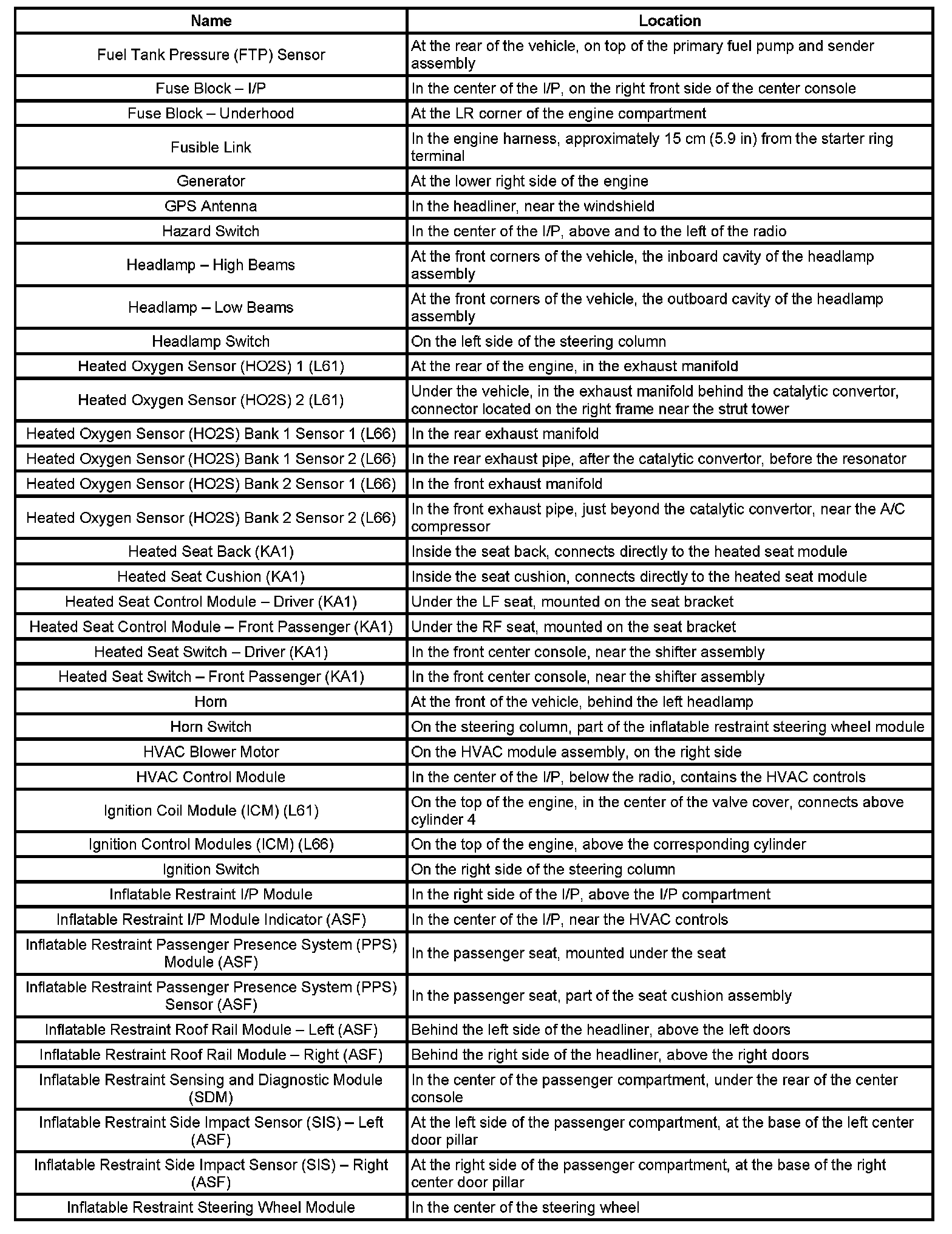

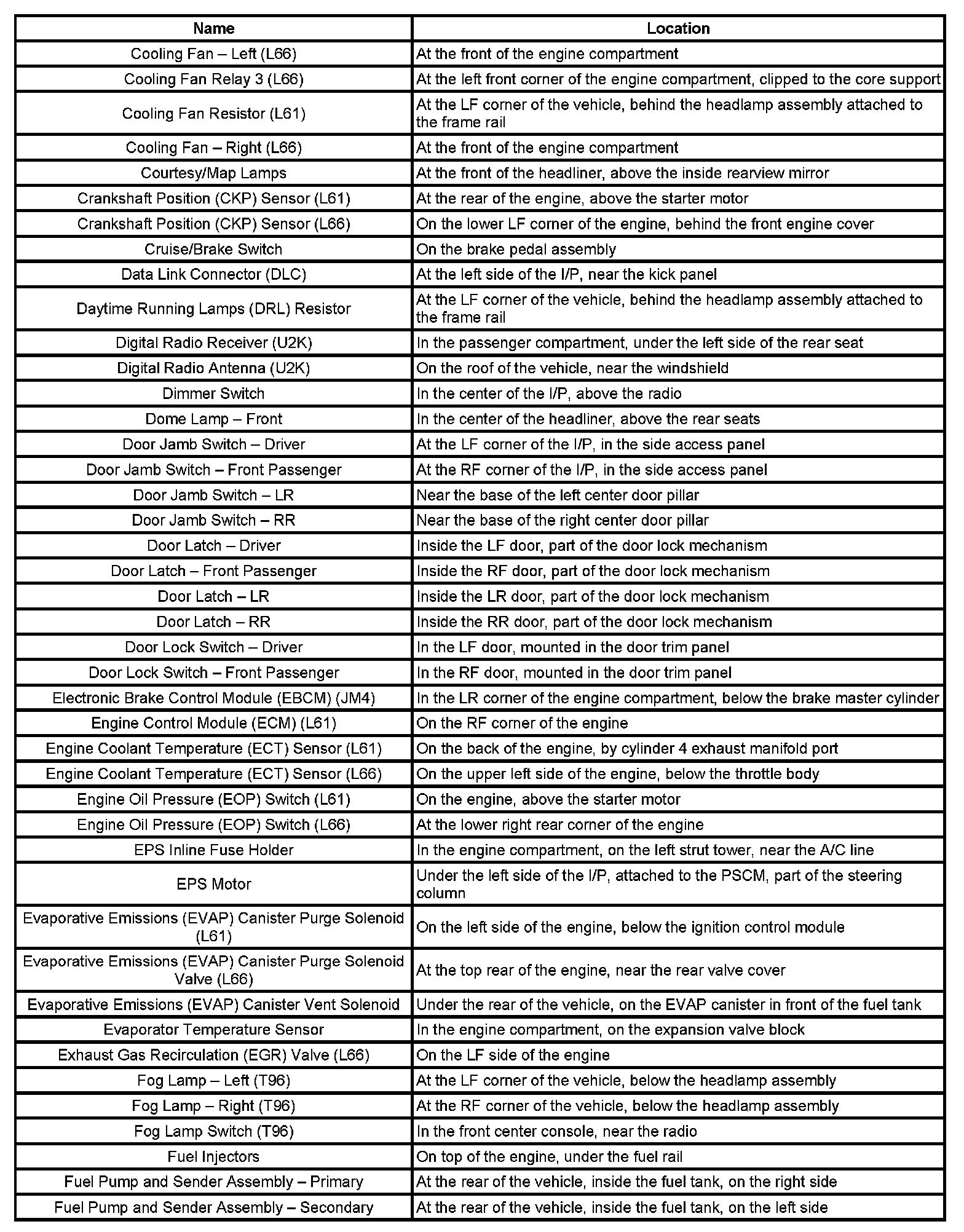

Components

1-2 Sh - Co:

Co - Fu:

Fu - In:

In - Po:

Pr - To:

To - Wi:
