Hydraulic Brake Pipe Routing - Master Cylinder to ABS

Hydraulic Brake Pipe Routing - Master Cylinder to ABS

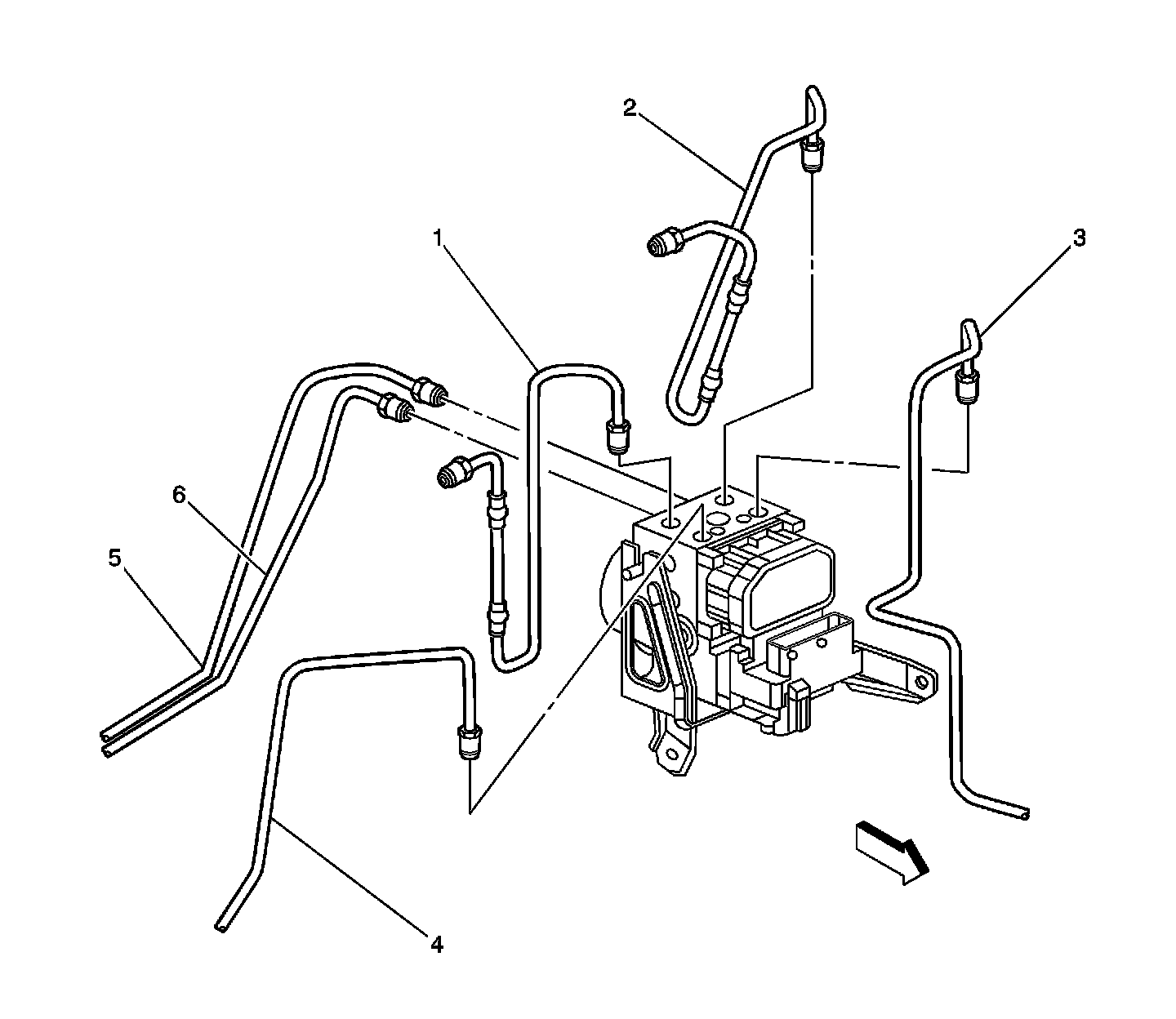

Hydraulic Brake Pipe Routing - Master Cylinder to ABS:

1 - Master Cylinder Primary Brake Pipe
2 - Master Cylinder Secondary Brake Pipe
3 - BPMV Brake Pipe to LF Brake Corner
4 - BPMV Brake Pipe to RF Brake Corner
5 - BPMV Brake Pipe to RR Brake Corner
6 - BPMV Brake Pipe to LR Brake Corner
