Seat Cushion Outer Trim Panel Replacement - Front Seat (2-Way)

SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT (2-WAY)

REMOVAL PROCEDURE




1. Remove the front seat.

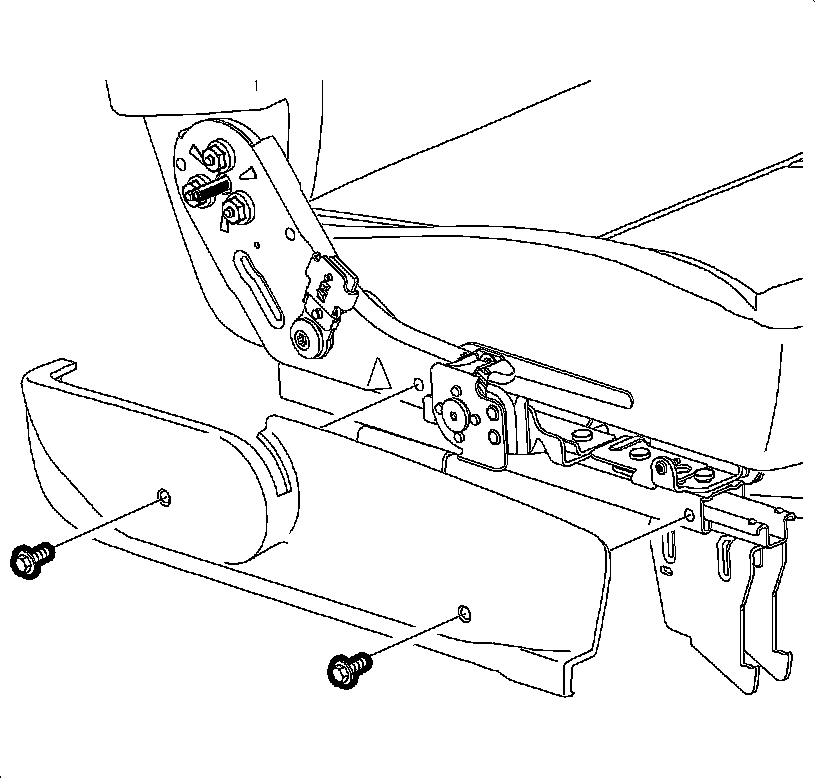

2. Remove the trim cover screws from the outer cover of the seat back recliner.
3. Remove the outer trim panel.




4. Remove the outer trim panel screws from the seat cushion.
5. Remove the trim panel.

INSTALLATION PROCEDURE




1. Install the trim panel and secure with the trim panel screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2.5 N.m (22 lb in).




2. Position the outboard recliner trim cover on the seat and secure with the trim cover screws.

Tighten the screws to 2.5 N.m (22 lb in).

3. Install the front seat.
