Sunroof Drain Hose Replacement - Front

Sunroof Drain Hose Replacement - Front

Removal Procedure

1. Lower the headliner. Refer to Headliner Replacement (Service and Repair) in Interior Trim.

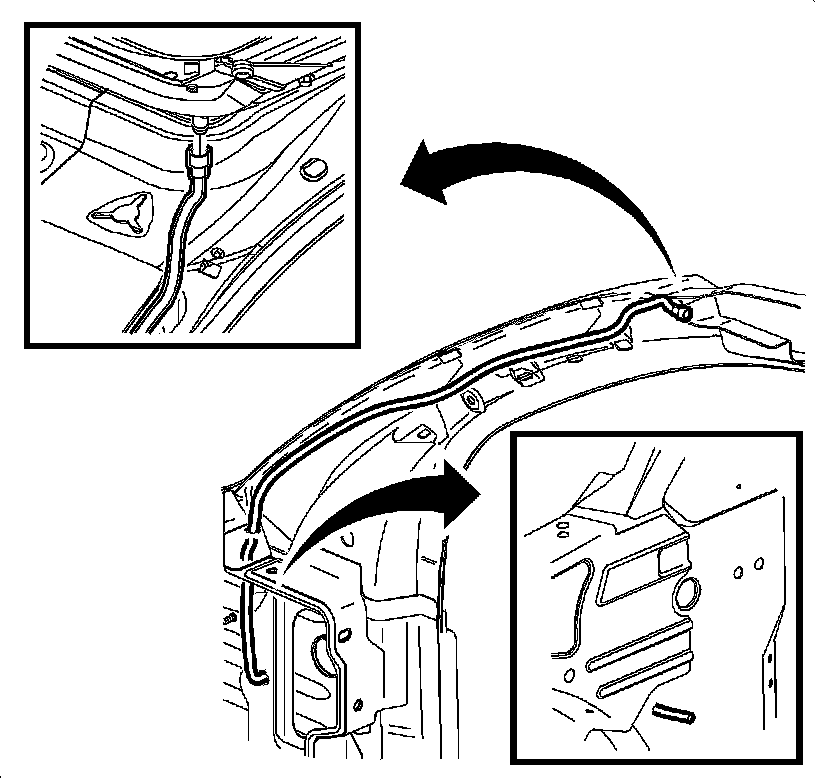

2. Remove the front drain hose from the sunroof module.
3. Remove tape from the drain hose.
4. Remove the front drain hose from the retaining clips.
5. Pull the front drain hose out of the front hinge pillar.

Installation Procedure




1. Push the drain hose into the hole in the front hinge pillar.
2. Connect the front drain hose to the retaining clips.
3. Connect the drain hose to the sunroof module.
4. Install the headliner. Refer to Headliner Replacement (Service and Repair) in Interior Trim.
