Molding Replacement - Rear Window Upper

Molding Replacement - Rear Window Upper

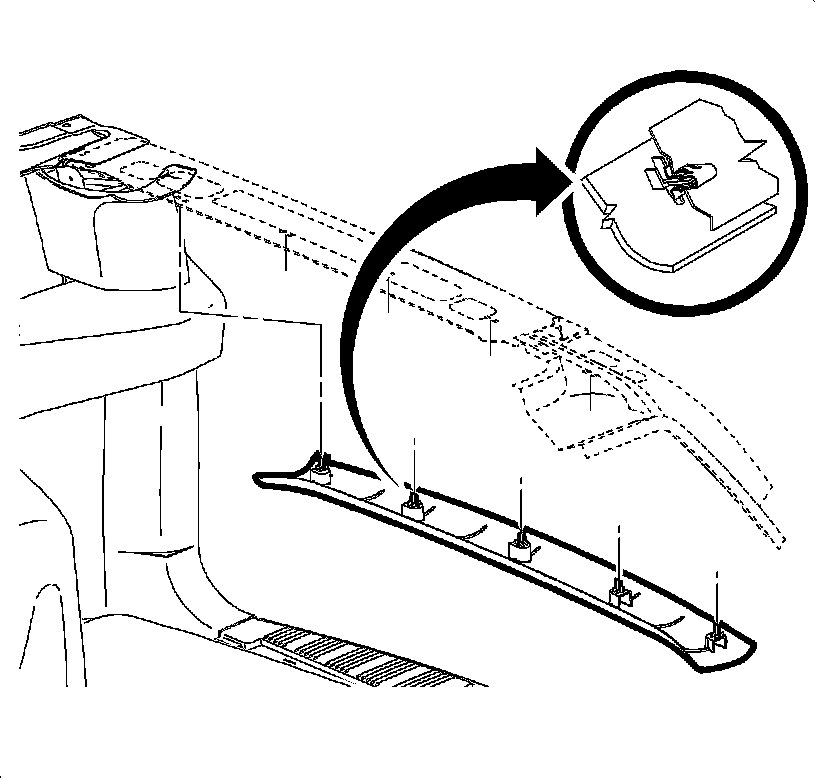

Removal Procedure




1. Open the liftgate.
2. Gently pull on the molding to disengage the clips.
3. Remove the molding.

Installation Procedure




1. Position the molding to the vehicle.
2. Snap the molding into place at the clip locations.
3. Close the liftgate.
4. Replace the seat over the trim edge.
