Storage Compartment Replacement - Instrument Panel (I/P)

Storage Compartment Replacement - Instrument Panel (I/P)

Removal Procedure




1. Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Service and Repair).

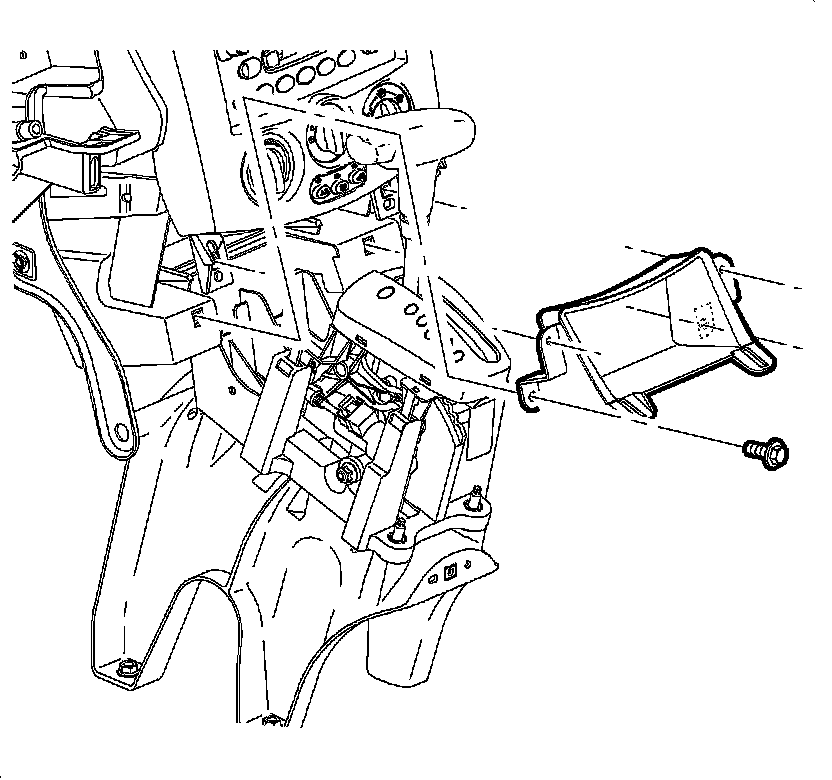

2. Remove the screws from the I/P storage compartment.
3. Remove the storage compartment from the I/P.

Installation Procedure




1. Position the I/P storage compartment.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the storage compartment screws.

Tighten the screws to 2.5 Nm (22 lb in).

3. Install the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Service and Repair).
