Removal Procedure




1. Remove the I/P compartment door cover.
2. Insert the key into the I/P compartment lock cylinder and rotate the cylinder clockwise 90 degrees. The cylinder will stop and the retainer tumbler will be visible.

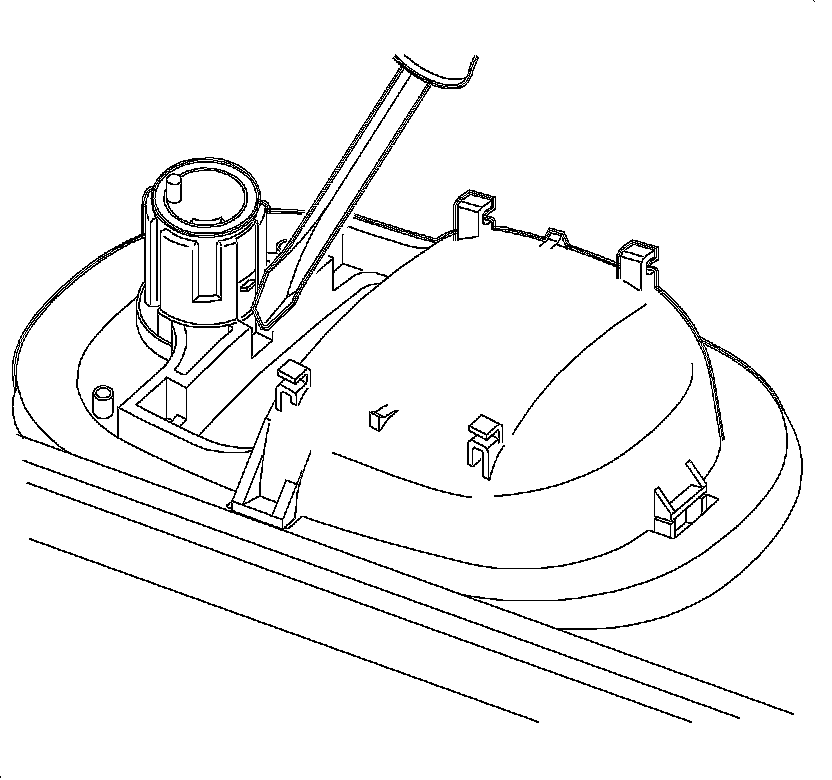

3. Depress the retainer tumbler with a thin flat-bladed tool.




4. Rotate the lock cylinder an additional 90 degrees and remove the lock cylinder.

Installation Procedure





Important: If this is the initial installation of the I/P compartment door lock, you must first remove the factory installed cylinder plug by depressing the locking tab and pushing the plug out of the door.


Important: When you insert the key into a properly coded lock cylinder, all of the tumblers except the retainer cylinder will be flush with the lock cylinder.


1. Insert the key into the lock cylinder.




2. Place the key and the lock cylinder into the I/P compartment door handle.
3. Rotate the lock cylinder counterclockwise 180 degrees to engage the retainer tumblers.




4. Install the cover on the I/P compartment door.
