Carpet Retainer Replacement - Front

Carpet Retainer Replacement - Front

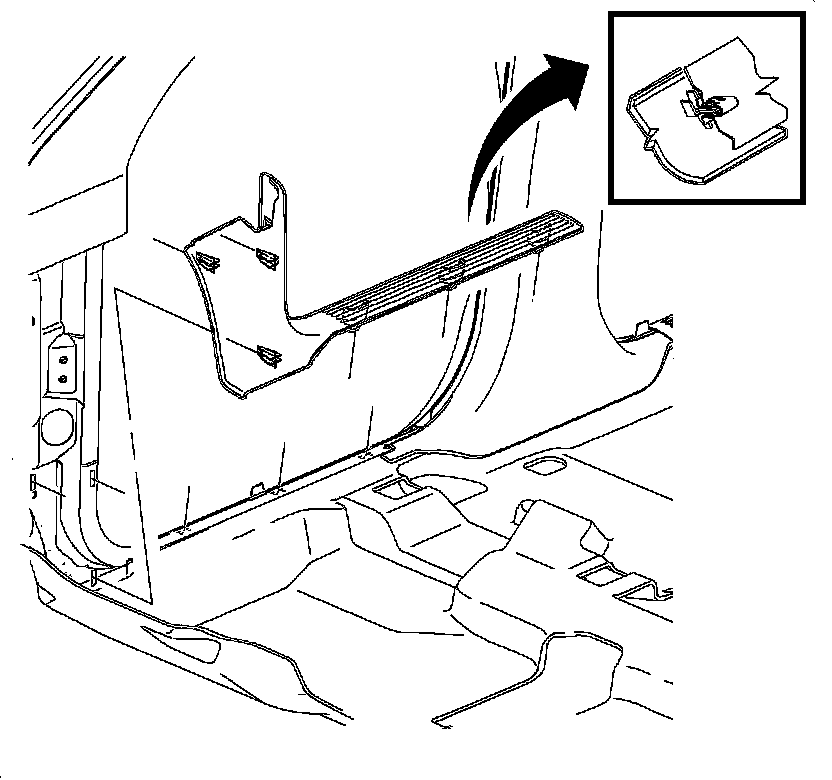

Removal Procedure




1. Starting at the rear of the door sill plate, pull upward to disengage the attaching clips.
2. Reach under the instrument panel and pull inward to disengage the additional attaching clips.
3. Remove the door sill plate from the vehicle.

Installation Procedure




1. Rotate the door sill plate under the instrument panel.
2. Position the part over the frame.
3. Push at the clip locations to secure the plate to the vehicle.
