Fascia Replacement - Rear Bumper

Fascia Replacement - Rear Bumper

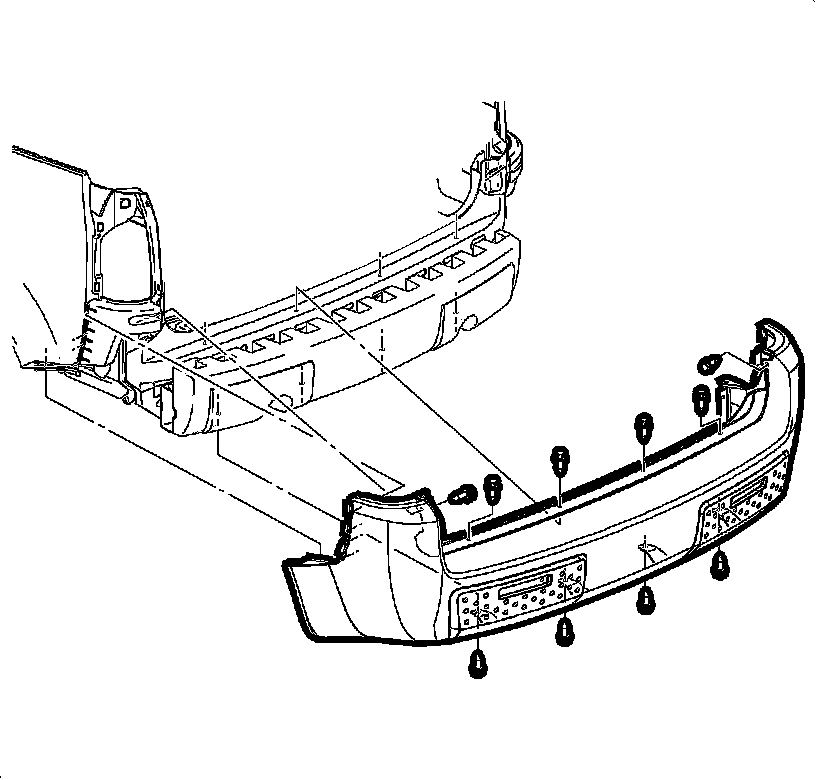

Removal Procedure

1. Remove the rear wheelhouse liners. Refer to Wheelhouse Liner Panel Replacement - Rear (Service and Repair) in Body Rear End.




2. Remove the rear fascia to body push-in retainers.




3. Remove the rear fascia from quarter panel by reaching through the wheelhouse opening and pushing the tabs to unlock the rear fascia.
4. Slide fascia rearward out of the quarter panel brackets to remove from vehicle.

Installation Procedure




1. Align fascia tabs with outer quarter panel slots.
2. Firmly push the rear fascia ends into the quarter panel brackets until secure.




3. Install the fascia to body push-in retainers.
4. Install the rear wheelhouse liners. Refer to Wheelhouse Liner Panel Replacement - Rear (Service and Repair) in Body Rear End.
