Installation Procedure

WARNING: This page is about a different variant/trim than selected.

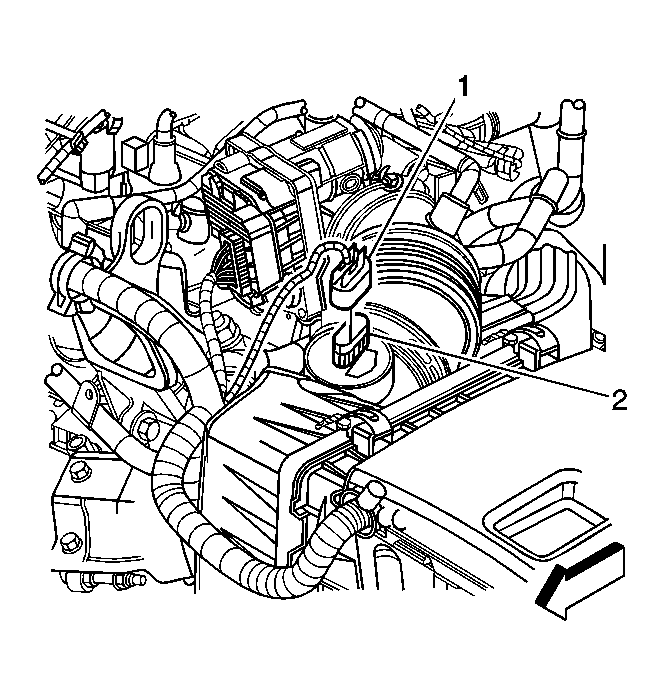

    Fig 1: Identifying Mass Air Flow (MAF) Sensor
    GM1544729Courtesy of GENERAL MOTORS CORP.
  1. Install the MAF sensor (2) to the air filter housing.
  2. Install the air inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
  3. Connect the MAF sensor electrical connector (1).
  4. Start and idle the engine.
  5. Inspect the air intake duct for leaks.
