Fuel Hose/Pipes Replacement - Chassis

WARNING: This page is about a different variant/trim than selected.

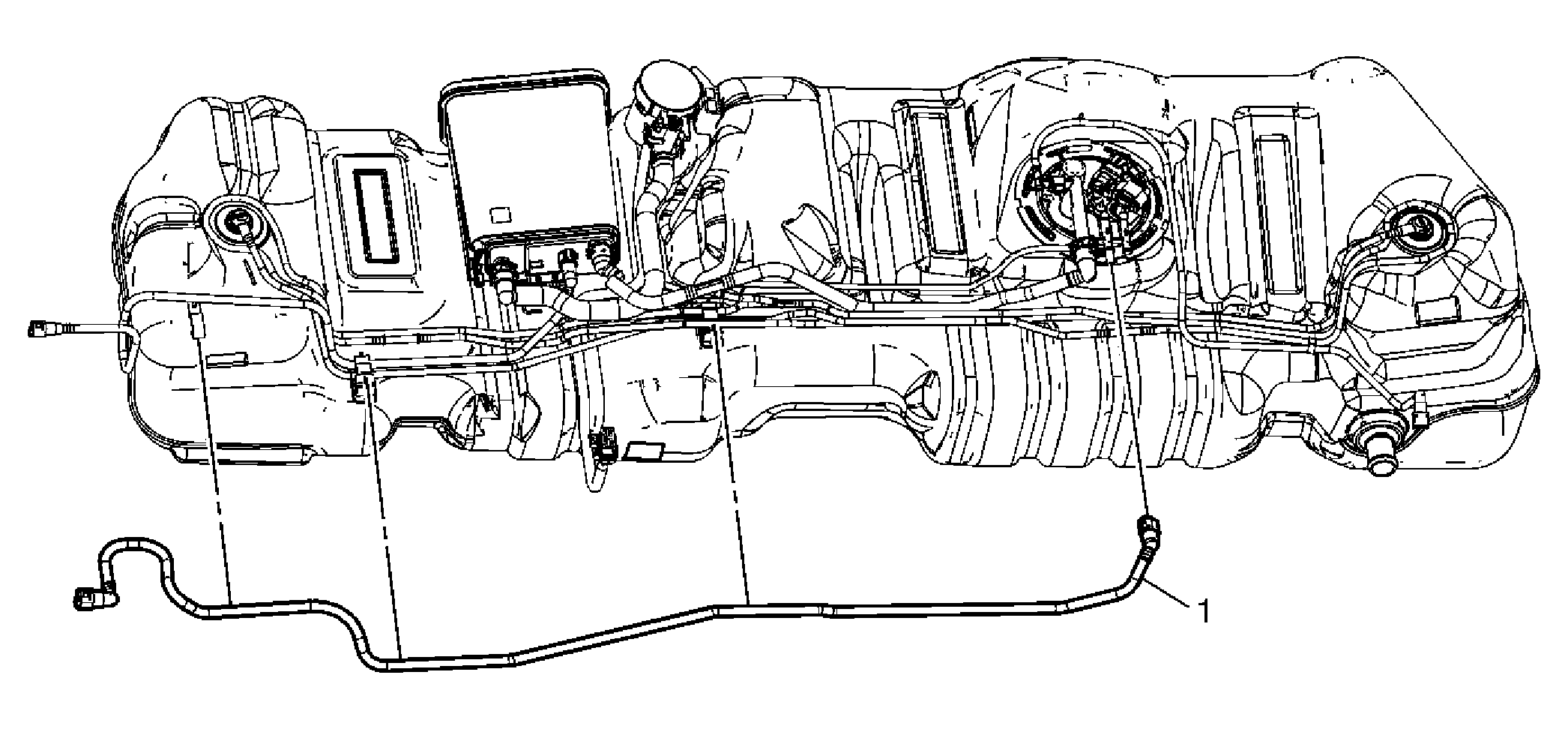

Fig 1: View Of Chassis Fuel Hose/Pipes

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the fuel tank. Refer to Fuel Tank Replacement (Long Wheel Base) or Fuel Tank Replacement (Short Wheel Base) .
1	Pipe, Fuel CAUTION: In order to Reduce the Risk of Fire and Personal Injury: If nylon fuel pipes are nicked, scratched or damaged during installation, Do Not attempt to repair the sections of the nylon fuel pipes. Replace them. When installing new fuel pipes, Do Not hammer directly on the fuel harness body clips as it may damage the nylon pipes resulting in a possible fuel leak. Always cover nylon vapor pipes with a wet towel before using a torch near them. Also, never expose the vehicle to temperatures higher than 115°C (239°F) for more than one hour, or more than 90°C (194°F) for any extended period. Before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends. This will ensure proper reconnection and prevent a possible fuel leak. (During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.) NOTE: Refer to NYLON FUEL LINES NOTICE .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the fuel tank. Refer to Fuel Tank Replacement (Long Wheel Base) or Fuel Tank Replacement (Short Wheel Base) .

Pipe, Fuel

CAUTION: In order to Reduce the Risk of Fire and Personal Injury:

If nylon fuel pipes are nicked, scratched or damaged during installation, Do Not attempt to repair the sections of the nylon fuel pipes. Replace them.
When installing new fuel pipes, Do Not hammer directly on the fuel harness body clips as it may damage the nylon pipes resulting in a possible fuel leak.
Always cover nylon vapor pipes with a wet towel before using a torch near them. Also, never expose the vehicle to temperatures higher than 115°C (239°F) for more than one hour, or more than 90°C (194°F) for any extended period.
Before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends. This will ensure proper reconnection and prevent a possible fuel leak. (During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.)

NOTE: Refer to NYLON FUEL LINES NOTICE .
