Installation Procedure

WARNING: This page is about a different variant/trim than selected.

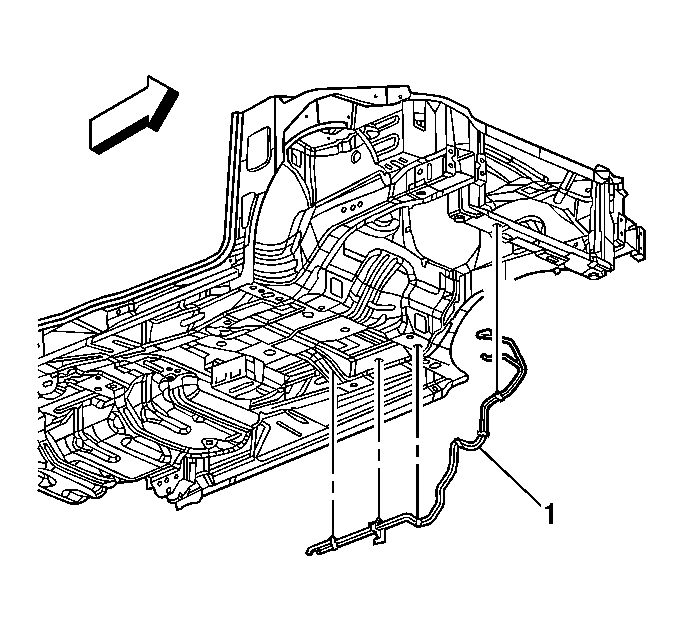

    Fig 1: View Of Fuel & EVAP Line
    GM1544726Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel and EVAP pipes (1).
  2. Perform the following procedures if equipped with auxiliary rear air and heat.
    1. Move the rear heater and A/C pipes into their original position.
    2. Connect the rear heater and A/C pipes to the rear HVAC module. Refer to Auxiliary HVAC Module Replacement in Heating, Ventilation and Air Conditioning.
  3. Connect the fuel feed and EVAP pipes to the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the engine and transmission as an assembly. Refer to Engine Replacement in Engine Mechanical.
