Fuel Tank

WARNING: This page is about a different variant/trim than selected.

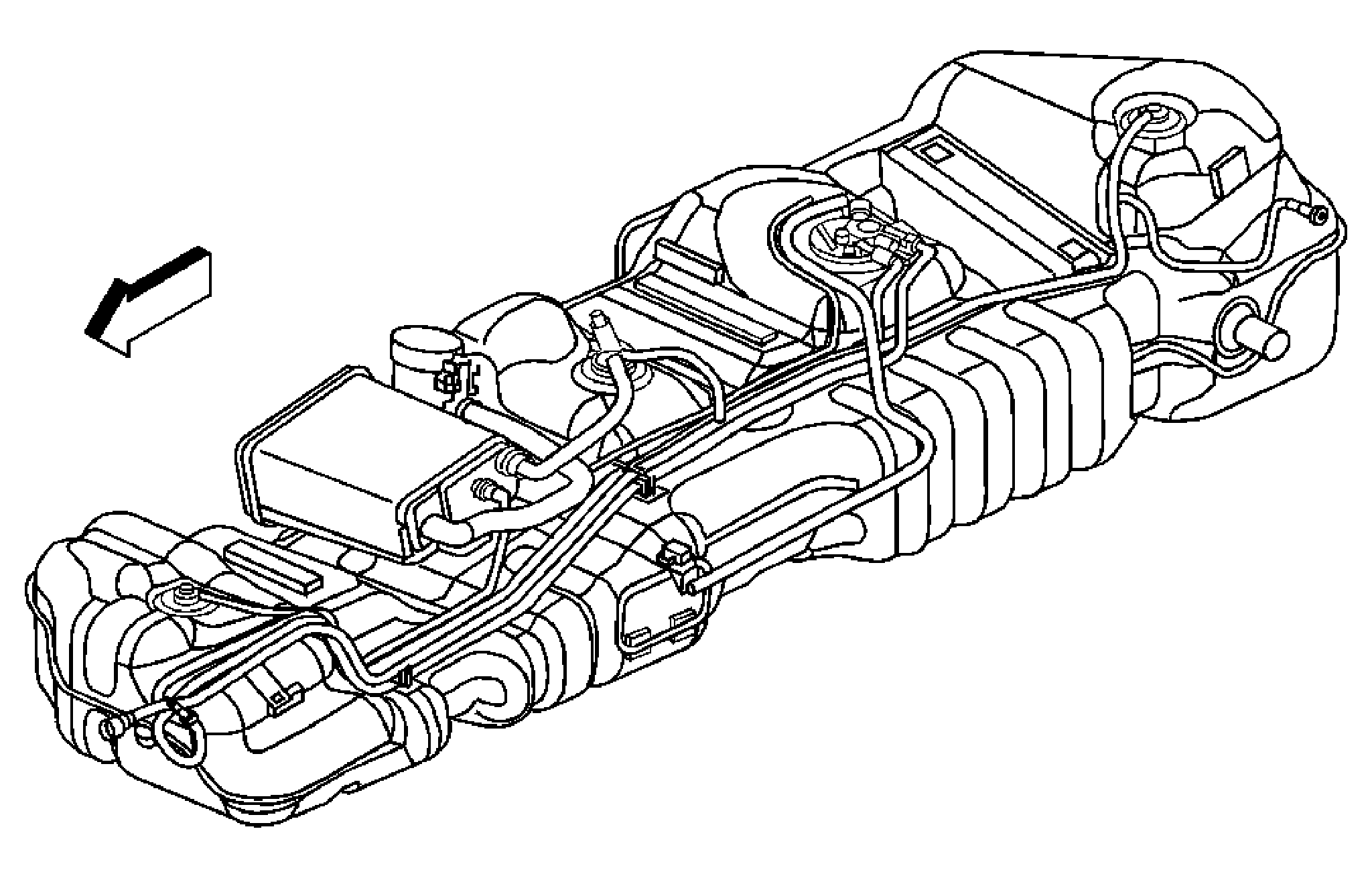

Fig 1: View Of Fuel Tank
GM1509723Courtesy of GENERAL MOTORS CORP.

The fuel tank stores the fuel supply. The fuel tank is located in the rear of the vehicle. The fuel tank is held in place by 2 metal straps that attach to the frame. The fuel tank is molded from high density polyethylene.
