Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Lifter Guide
    GM61836Courtesy of GENERAL MOTORS CORP.
  1. Coat the valve lifters with prelube. Refer to Sealers, Adhesives, and Lubricants .
  2. Install the valve lifters to the same location from which they were removed.
  3. Install the valve lifter guides.
    4. NOTE: Refer to Fastener Notice .
  4. Install the valve lifter guide bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

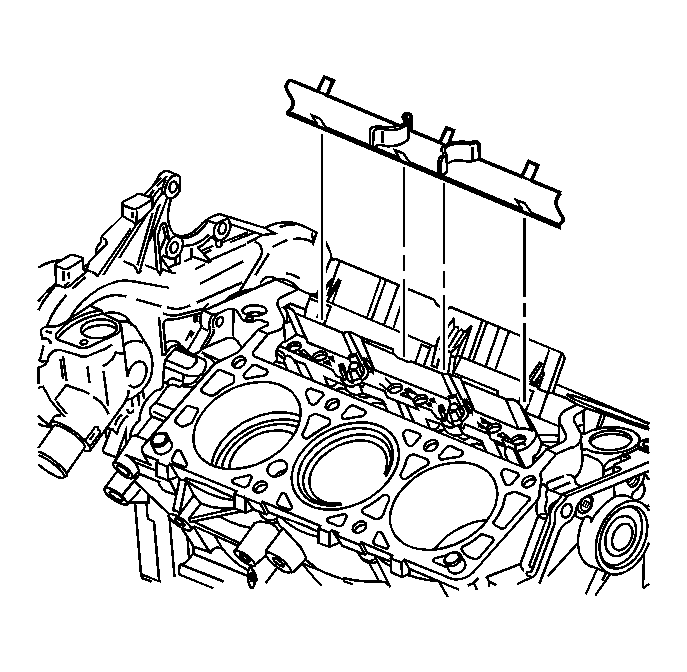

    5. Fig 2: Intake Manifold Oil Splash Shield
    GM645872Courtesy of GENERAL MOTORS CORP.
  5. Install the intake manifold oil splash shield
  6. Install the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  7. Install the lower intake manifold. Refer to Lower Intake Manifold Replacement .
