Removal Procedure

WARNING: This page is about a different variant/trim than selected.

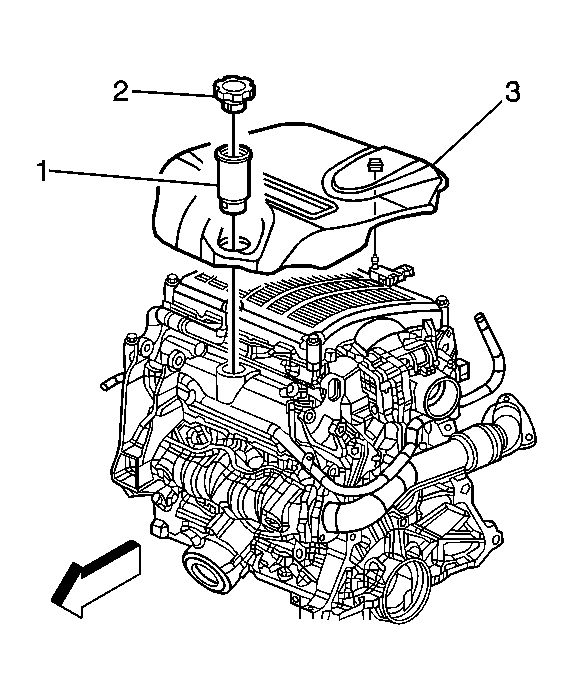

    Fig 1: Removing/Installing Fuel Injector Sight Shield
    GM1544722Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil fill cap (2).
  2. Remove the oil fill neck (1).
  3. Remove the injector sight shield (3).
