Removal Procedure

WARNING: This page is about a different variant/trim than selected.

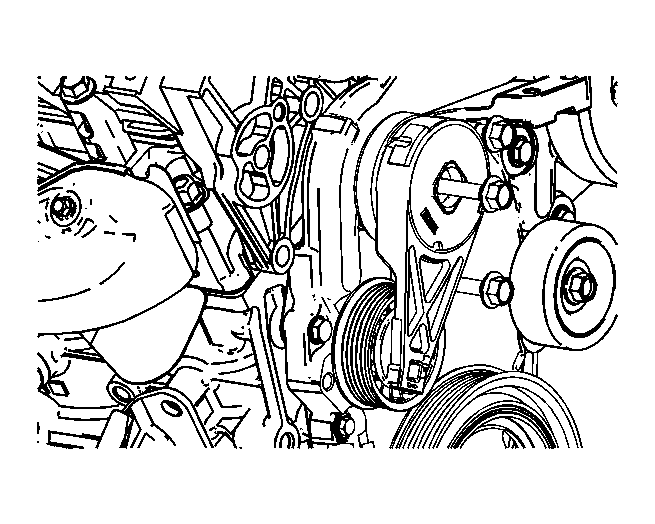

    Fig 1: Removing/Installing Drive Belt Tensioner Bolt
    GM1239042Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the drive belt tensioner bolt.
  3. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Removal .
