Water Pump Installation

WARNING: This page is about a different variant/trim than selected.

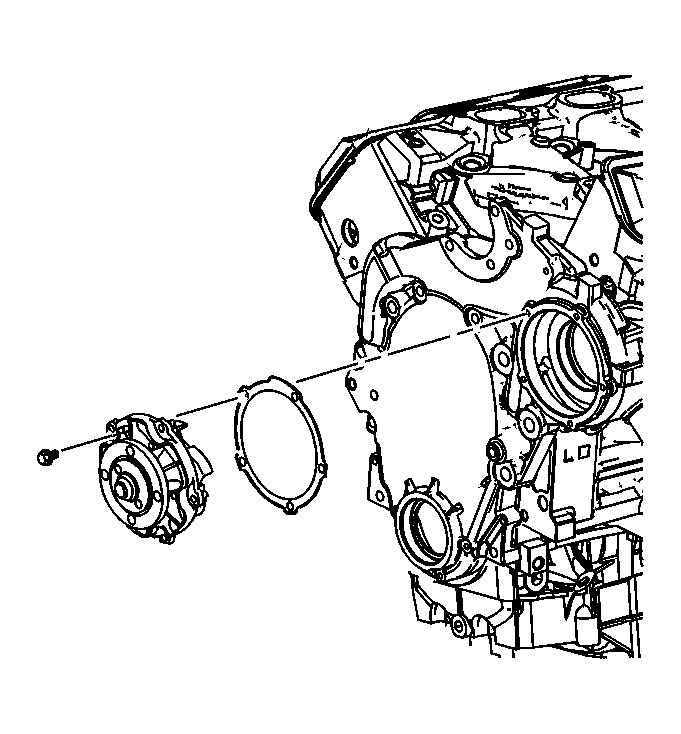

    Fig 1: Removing/Installing Water Pump
    GM909615Courtesy of GENERAL MOTORS CORP.
  1. Install the water pump gasket.
  2. Install the water pump.
    3. NOTE: Refer to Fastener Notice .
  3. Install the water pump bolts.

    Tighten:  Tighten the water pump bolts to 10 N.m (89 lb in).

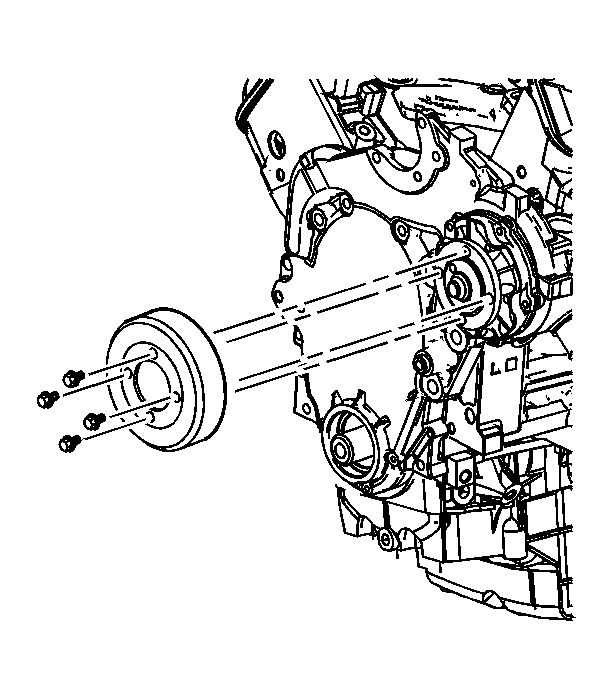

    4. Fig 2: Removing/Installing Water Pump Pulley
    GM909611Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten:  Tighten the water pump pulley bolts to 25 N.m (18 lb ft).
