Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different variant/trim than selected.

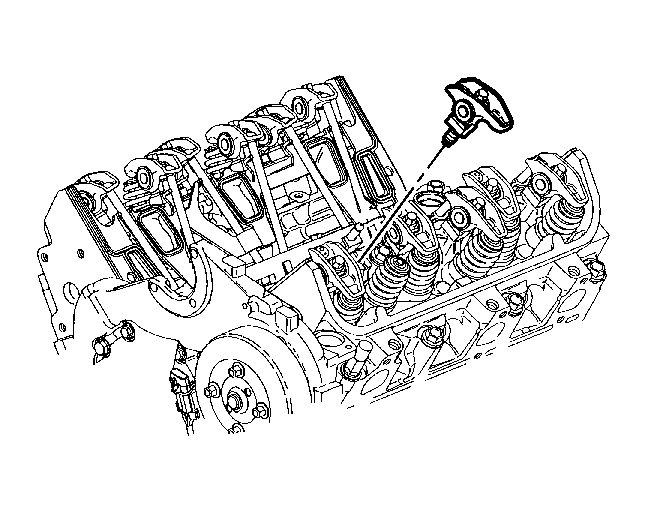

    Fig 1: Valve Rocker Arms
    GM1451471Courtesy of GENERAL MOTORS CORP.
  1. Loosen the valve rocker arm bolts.
    2. IMPORTANT: Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they where removed.
  2. Remove the valve rocker arms.

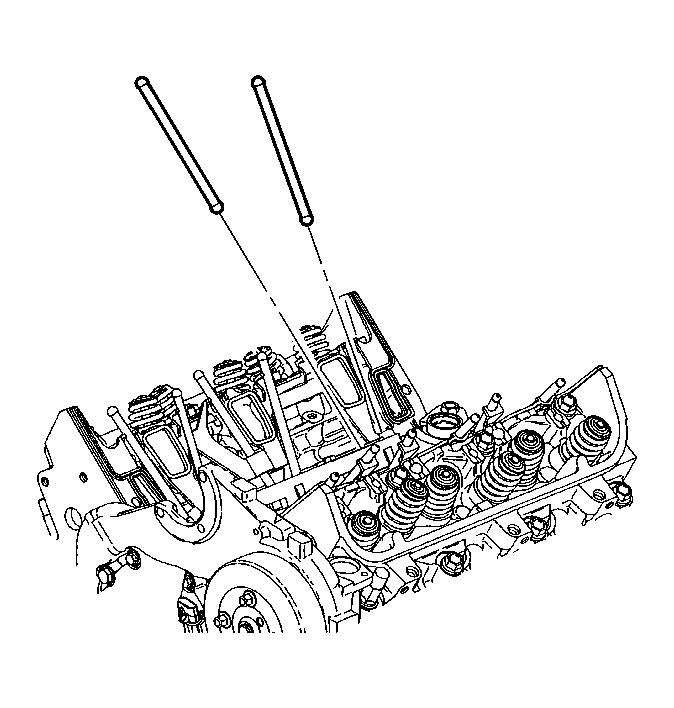

    3. Fig 2: Removing/Installing Push Rods
    GM909602Courtesy of GENERAL MOTORS CORP.
  3. Remove the push rods.
    • The intake push rods measure 144.18 mm (5.68 in).
    • The exhaust push rods measure 152.51 mm (6.0 in).

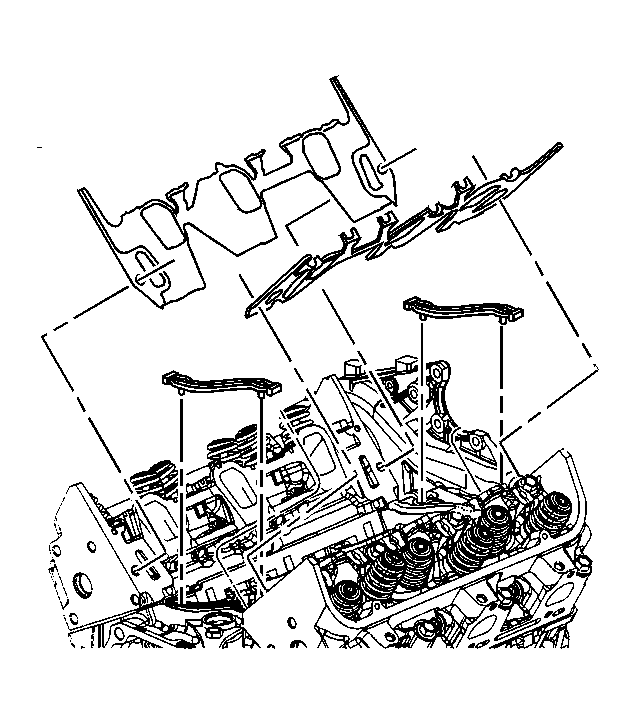

    4. Fig 3: Removing/Installing Intake Manifold Gaskets
    GM909605Courtesy of GENERAL MOTORS CORP.
  4. Remove the intake manifold gaskets.
