Valve Rocker Arm Cover Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

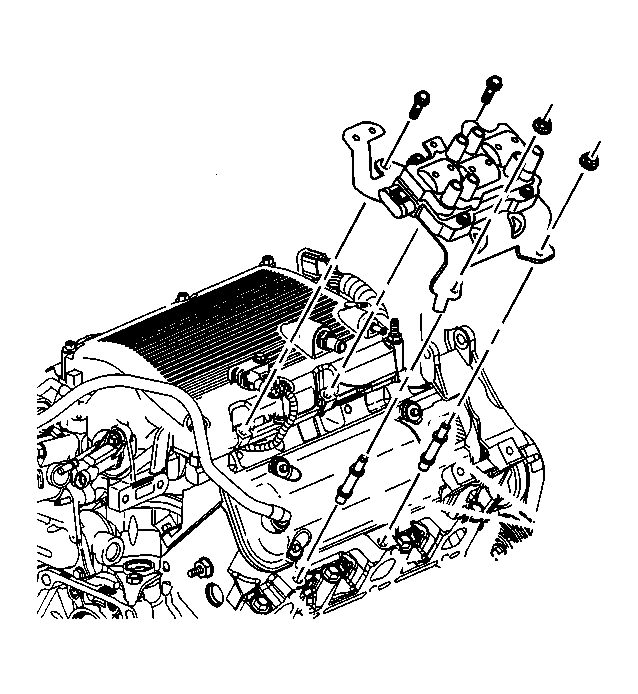

    Fig 1: Removing/Installing Remaining Spark Plug Wires From Their Retainers
    GM909582Courtesy of GENERAL MOTORS CORP.
  1. Remove any remaining spark plug wires from their retainers.
  2. Remove the ignition coil assembly bolts and nuts.
  3. Remove the ignition coil assembly.
  4. Remove the ignition coil assembly studs, if necessary.
    5. Fig 2: Removing/Installing Vacuum Hoses
    GM909586Courtesy of GENERAL MOTORS CORP.
  5. Remove the positive crankcase ventilation tube from the valve rocker arm cover.
    6. Fig 3: View Of Valve Rocker Arm Cover - Right
    GM60846Courtesy of GENERAL MOTORS CORP.
    NOTE: Valve rocker arm cover gasket and sealant must be carefully trimmed away from lower intake manifold gasket. Failure to do so will damage the lower intake manifold gasket, causing a severe oil leak.
  6. Remove the valve rocker arm cover bolts.
    7. IMPORTANT: When removing the valve rocker arm cover make sure the gasket stays in place attached to the cylinder head.
  7. Remove the valve rocker arm cover.
    8. Fig 4: Identifying Cylinder Head To Lower Intake Manifold Joint
    GM190588Courtesy of GENERAL MOTORS CORP.
  8. Trim valve cover gasket and sealant away from lower intake manifold gasket at the cylinder head to lower intake manifold joints (1).
  9. Remove the valve rocker arm cover gasket.
