Piston Oil Nozzle Removal

WARNING: This page is about a different variant/trim than selected.

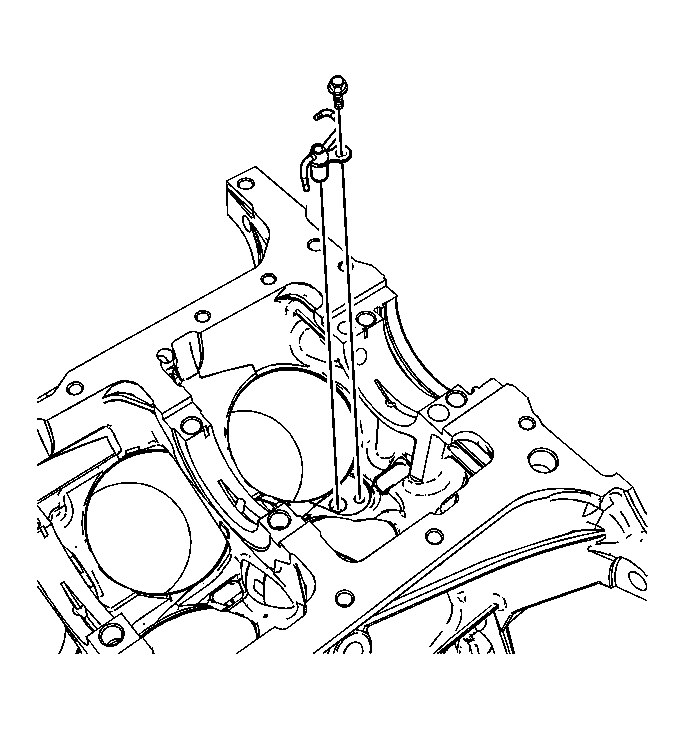

    Fig 1: View Of Piston Oil Nozzle
    GM1579794Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt retaining the piston oil nozzle to the engine block.
  2. Remove the piston oil nozzle.
