Oil Level Indicator and Tube Installation
WARNING: This page is about a different variant/trim than selected.

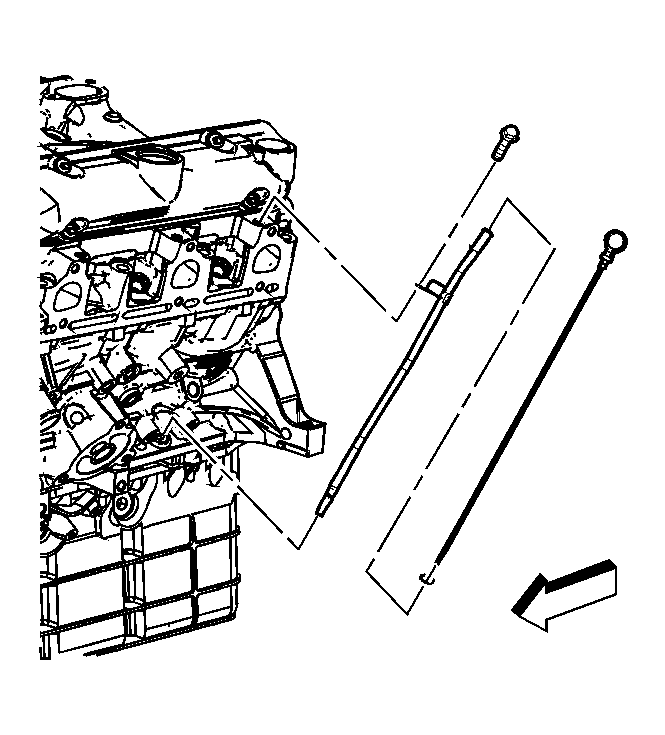

- Install the oil level indicator tube and oil level indicator.
- Install the oil level indicator tube bolt.
Tighten: Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

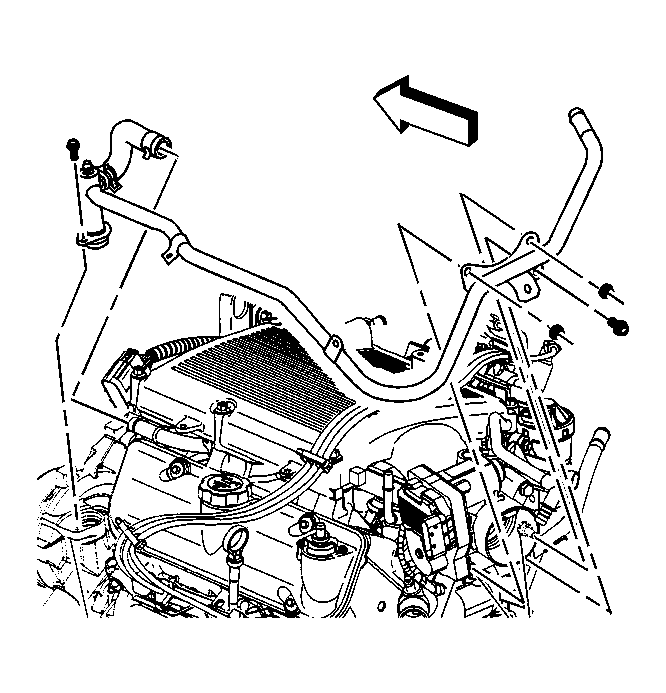

- Install the thermostat bypass pipe.
- Install the thermostat bypass pipe to engine front cover bolt.
Tighten: Tighten the thermostat bypass pipe to engine front cover bolt to 10 N.m (89 lb in).
- Apply threadlock P/N 21485277 to the throttle body studs.
- Install the thermostat bypass pipe to throttle body bolt and nuts.
Tighten: Tighten the thermostat bypass pipe to throttle body bolt and nuts to 10 N.m (89 lb in).
- Install the heated oxygen sensor connector to the thermostat bypass pipe.
- Install the oil cooler hose if applicable.
- Install the spark plug wire clip to the thermostat bypass pipe.
- Install the spark plug wires onto the spark plugs.
- Position the 16 pin connector harness as shown in the graphic and secure the connector in its respective location.
- Install the thermostat bypass pipe hose to pipe.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
IMPORTANT:
Passenger cars will have a 16 pin connector attached to the bypass pipe. Passenger vans will have the connector attached to the drive belt shield.
