Engine Front Cover Removal

WARNING: This page is about a different variant/trim than selected.

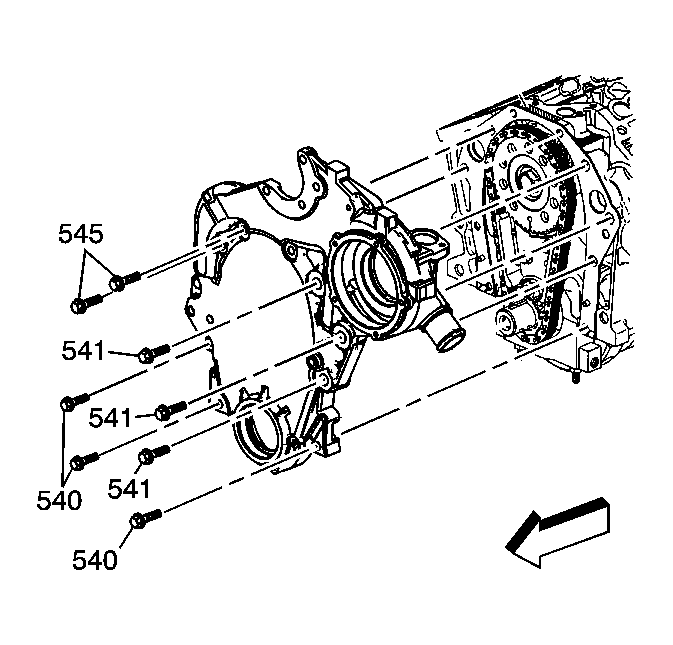

    Fig 1: Removing/Installing Engine Front Cover Bolts (540, 541, 545)
    GM909617Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine front cover bolts (540, 541, 545).
  2. Remove the engine front cover.
  3. Remove the engine front cover gasket.
