Radiator Inlet Hose Replacement (LZ9)

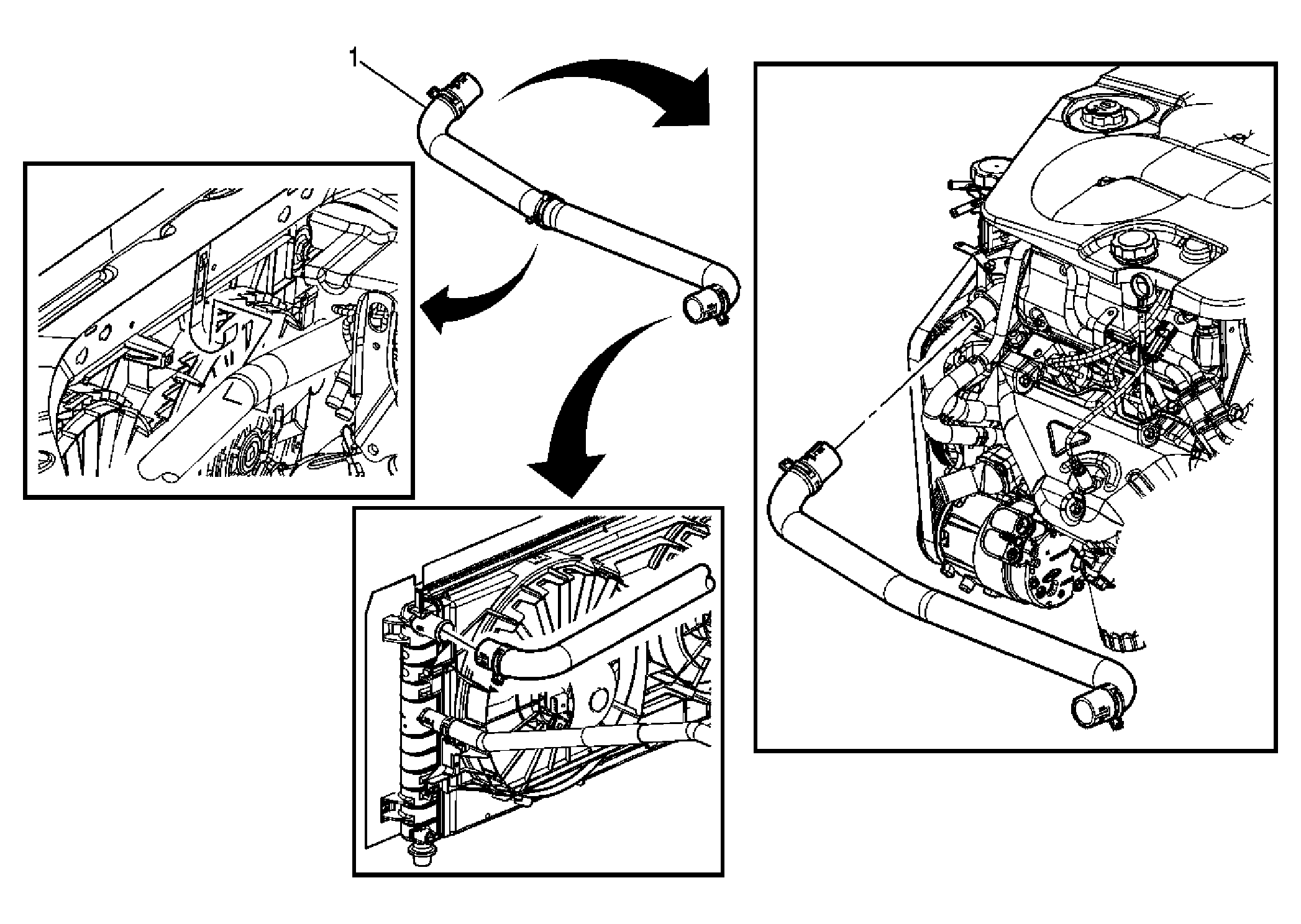

Fig 1: Replacing Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LX9) or Cooling System Draining and Filling (Static Fill LZ9) or Cooling System Draining and Filling (Vac-N-Fill) .
1	Radiator Inlet Hose Tip: Using SA9111E Constant Force Clamp Pliers, reposition the radiator inlet hose clamps. Reposition the radiator inlet hose onto the hose clamp bracket.
