Ground Distribution Schematics

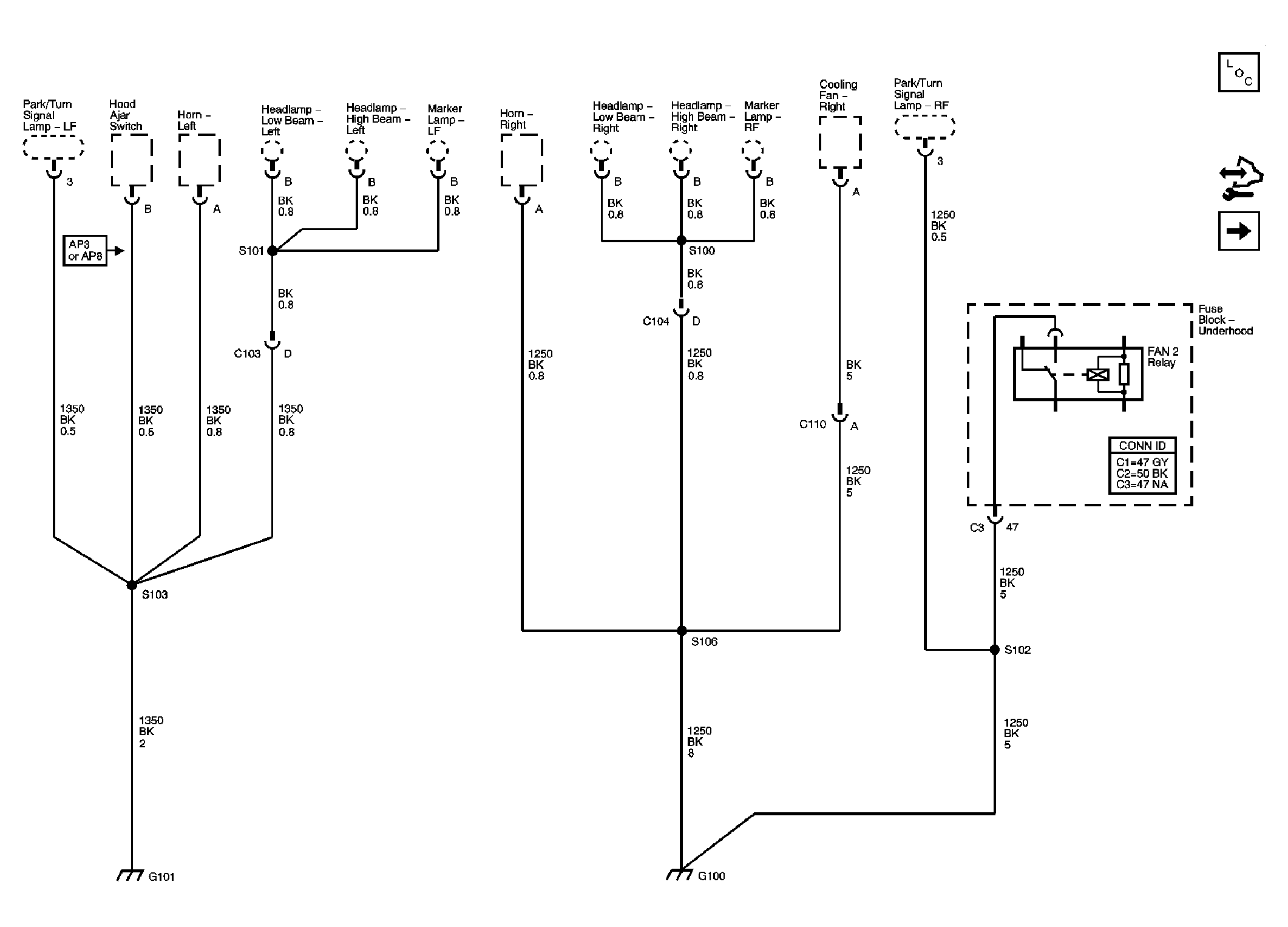

Fig 1: G100 and G101

GM1636853

Courtesy of GENERAL MOTORS CORP.

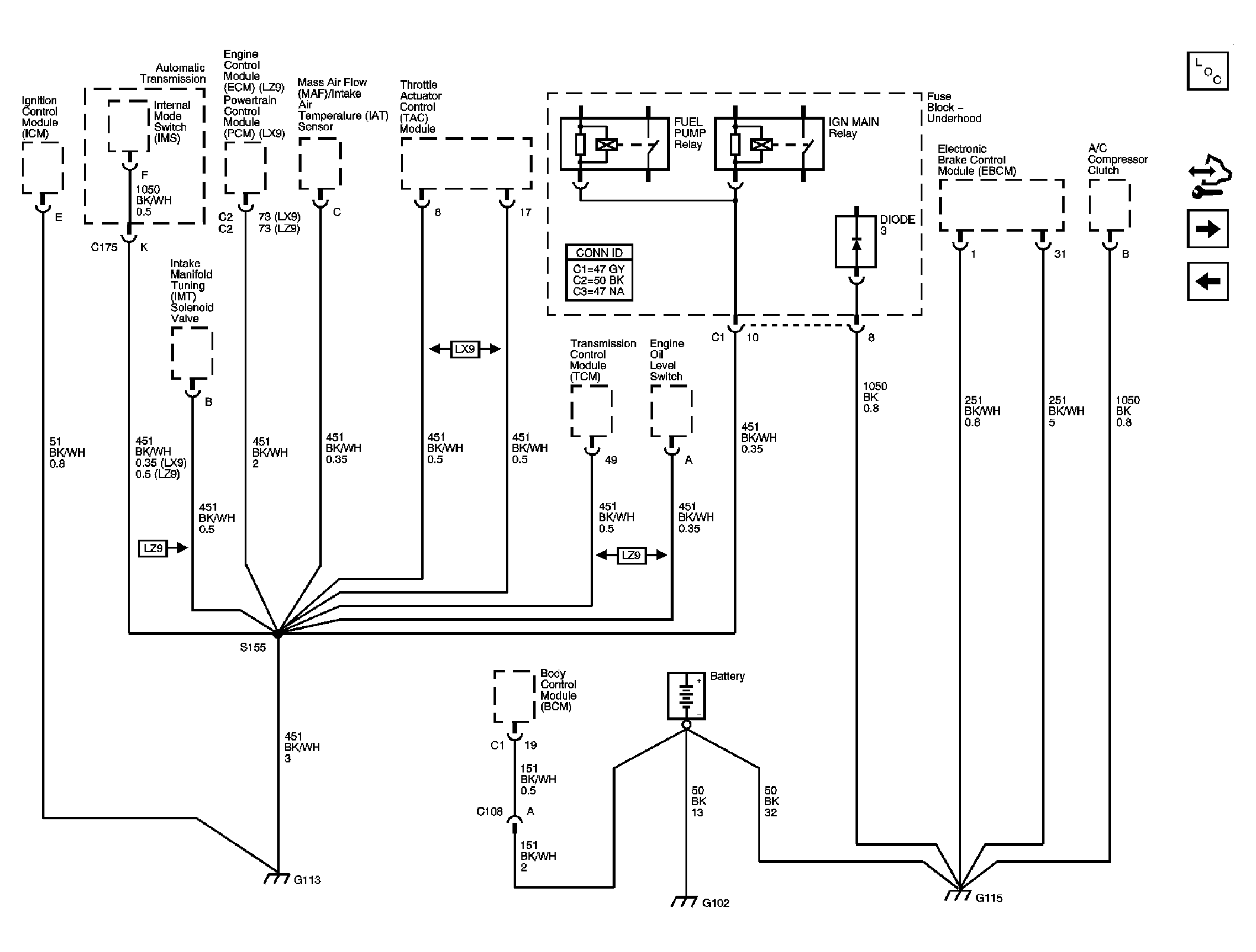

Fig 2: G102, G113 and G115

GM1636854

Courtesy of GENERAL MOTORS CORP.

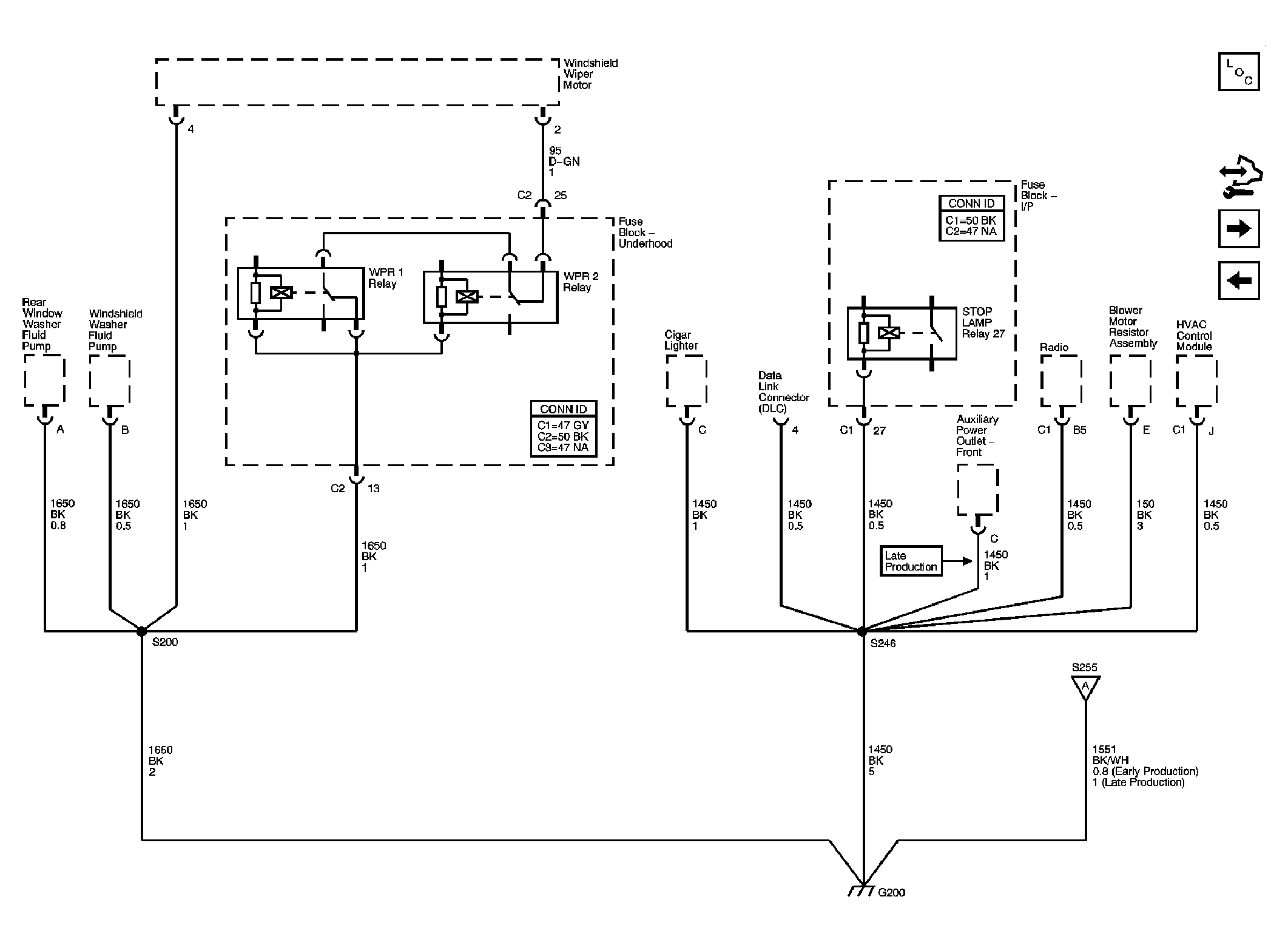

Fig 3: G200 1 of 2

GM1636855

Courtesy of GENERAL MOTORS CORP.

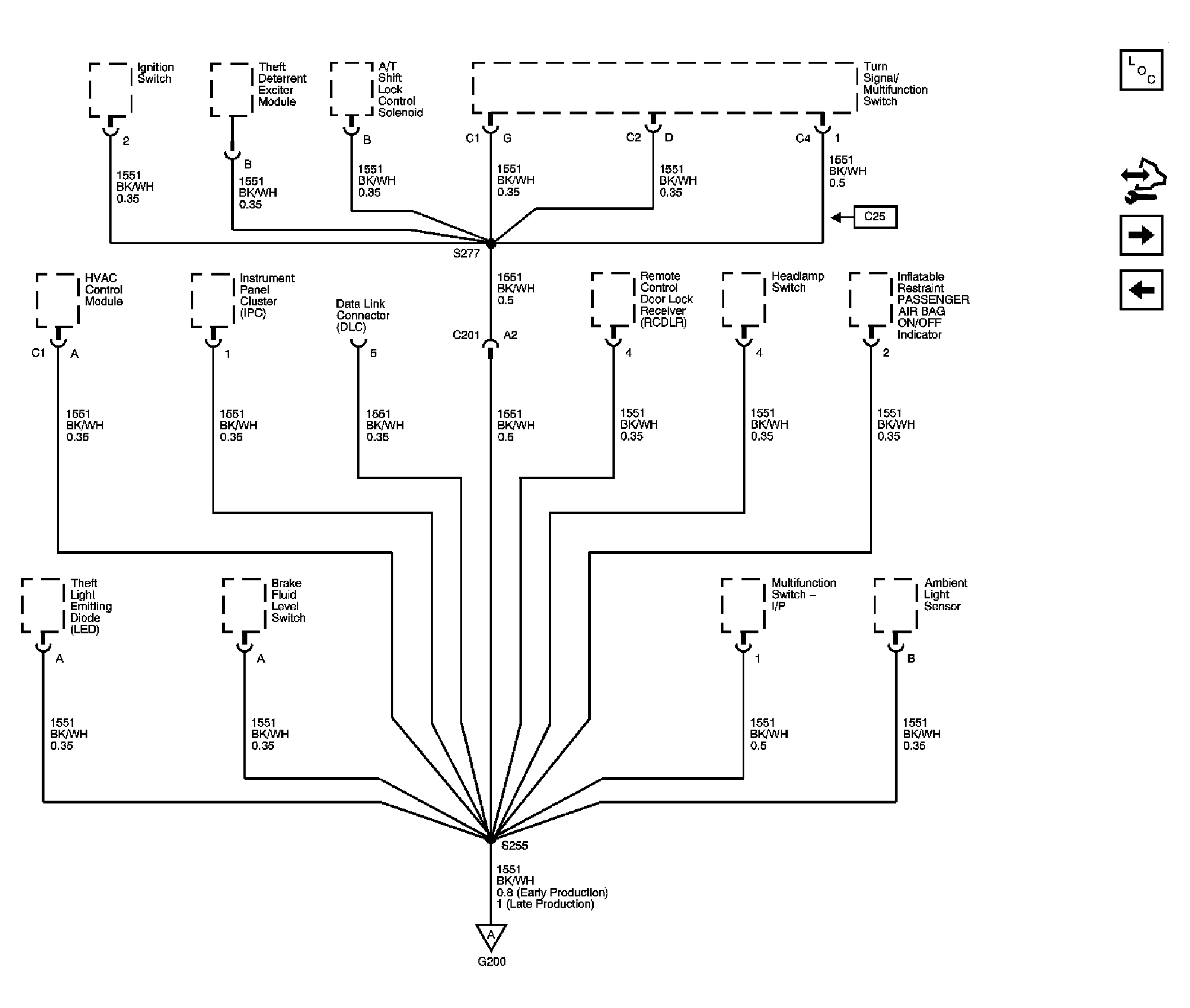

Fig 4: G200 2 of 2

GM1636856

Courtesy of GENERAL MOTORS CORP.

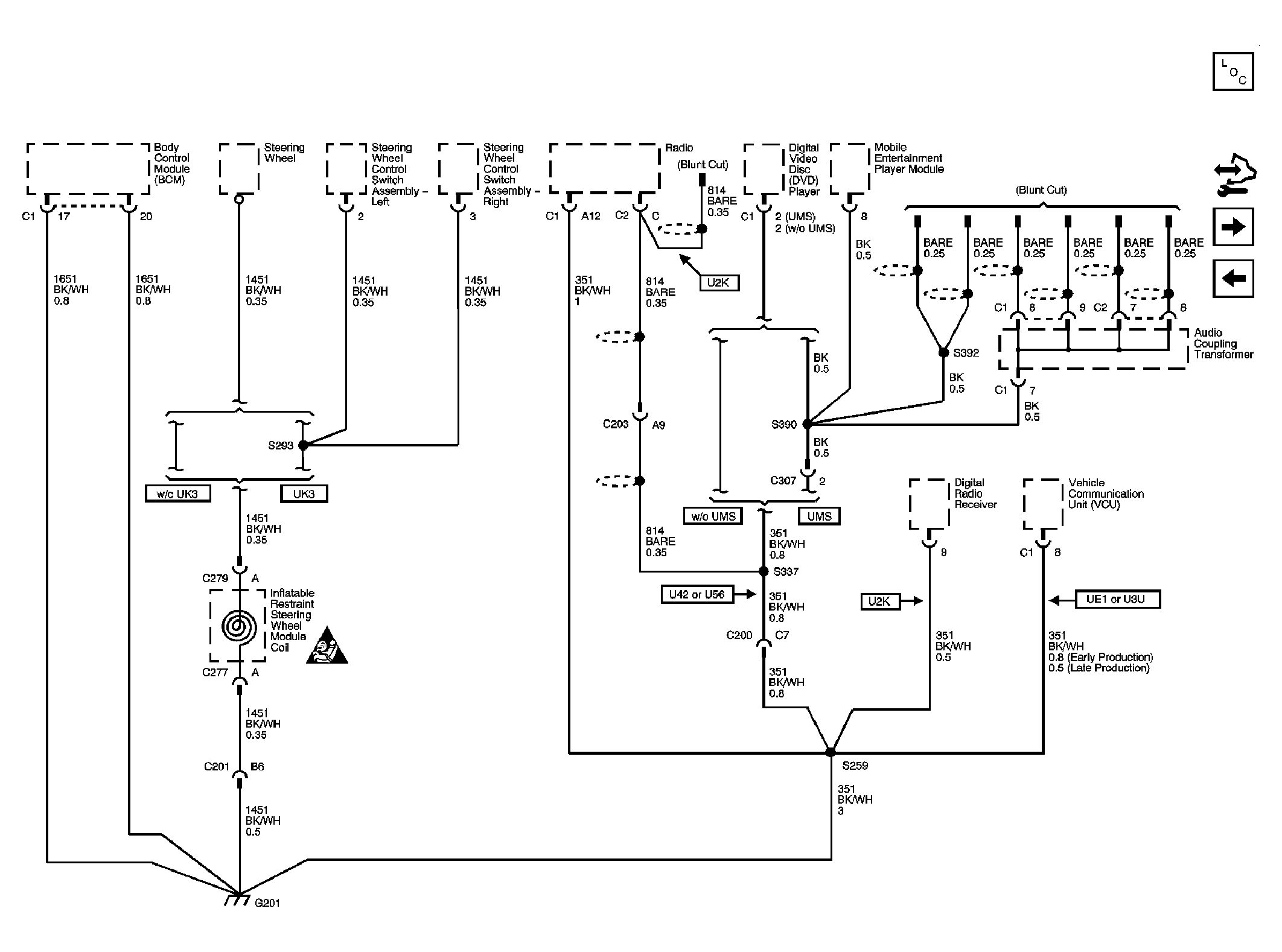

Fig 5: G201

GM1636857

Courtesy of GENERAL MOTORS CORP.

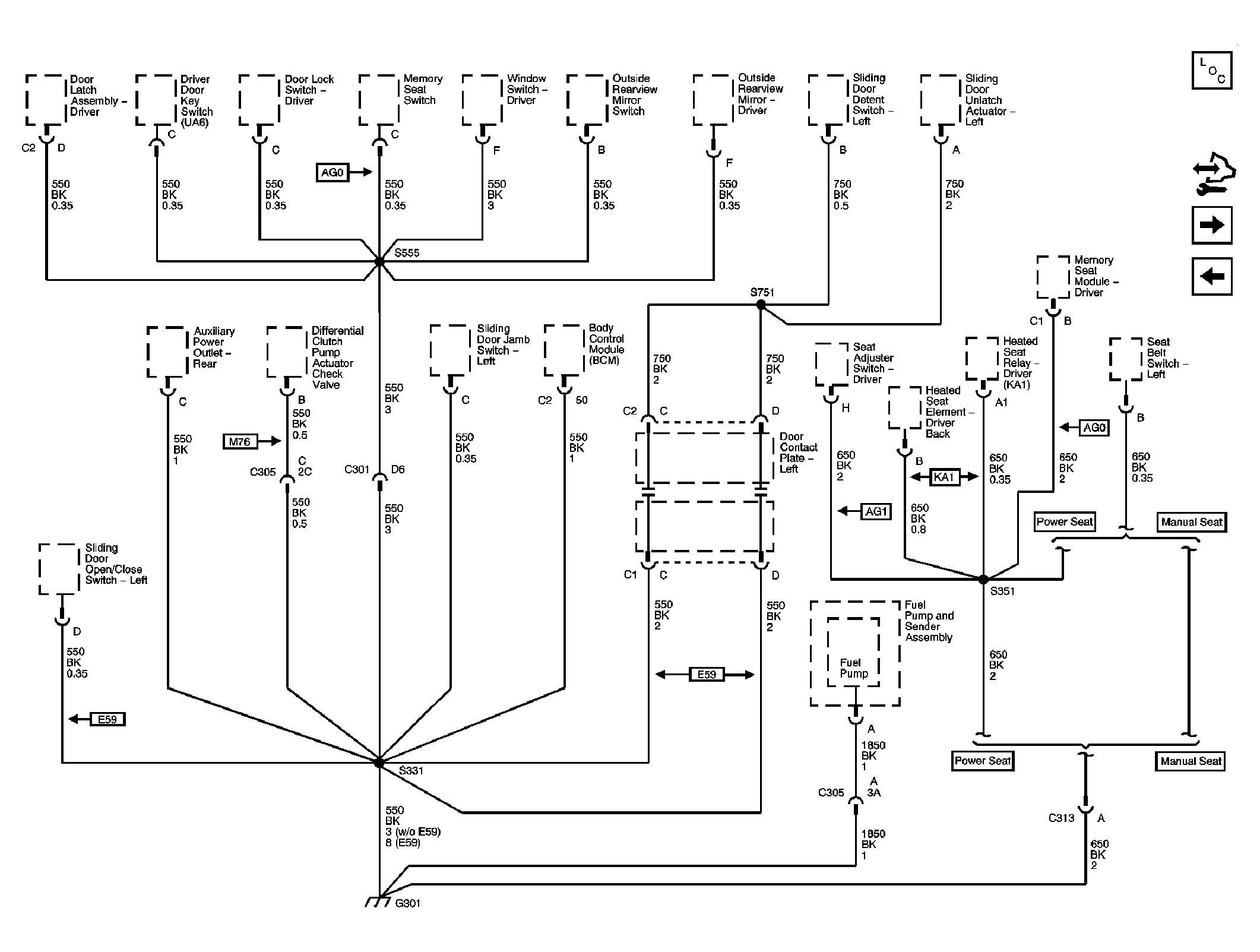

Fig 6: G301

GM1636858

Courtesy of GENERAL MOTORS CORP.

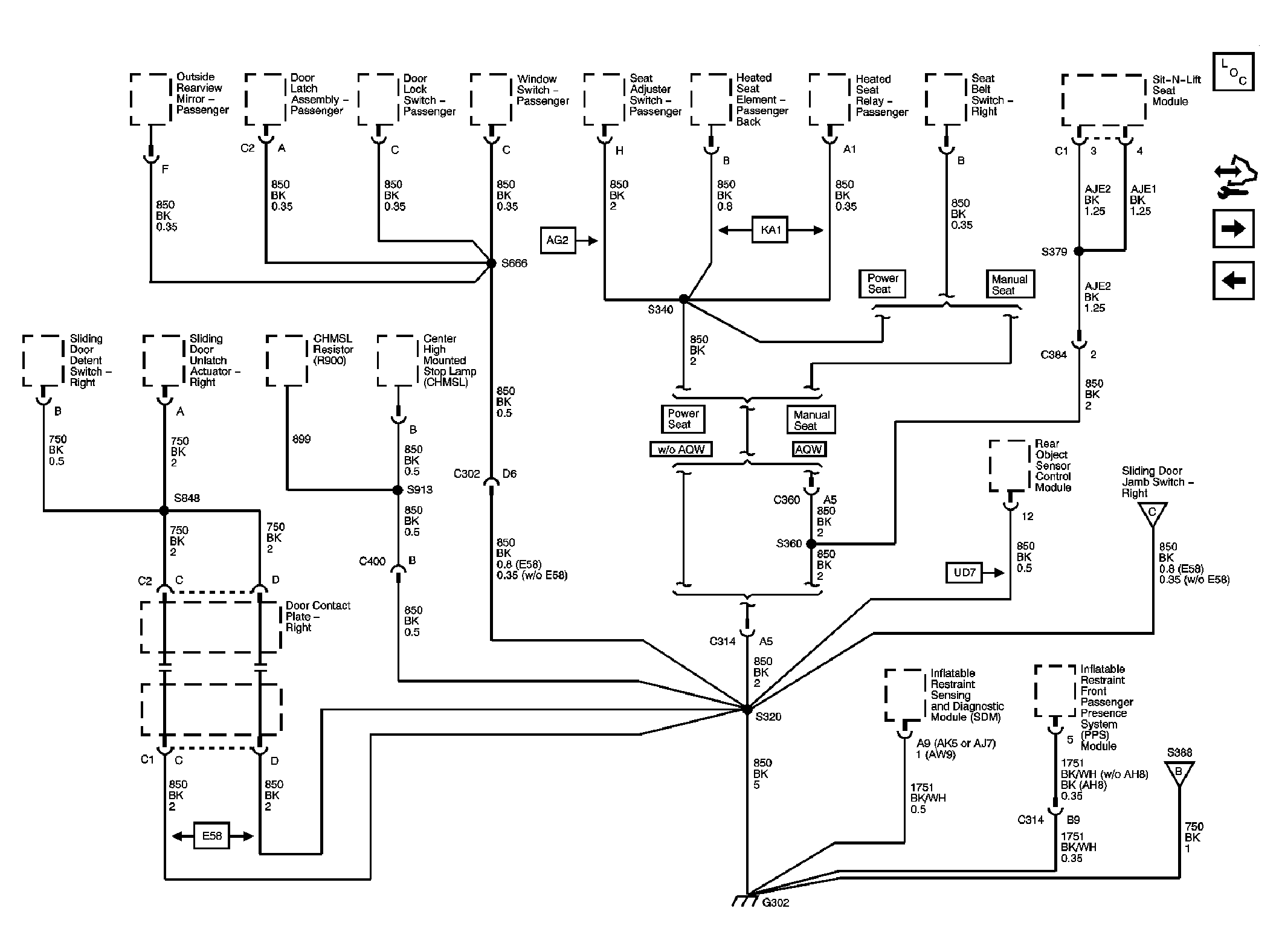

Fig 7: G302 1 of 2

GM1636859

Courtesy of GENERAL MOTORS CORP.

Fig 8: G302 2 of 2

GM1636860

Courtesy of GENERAL MOTORS CORP.

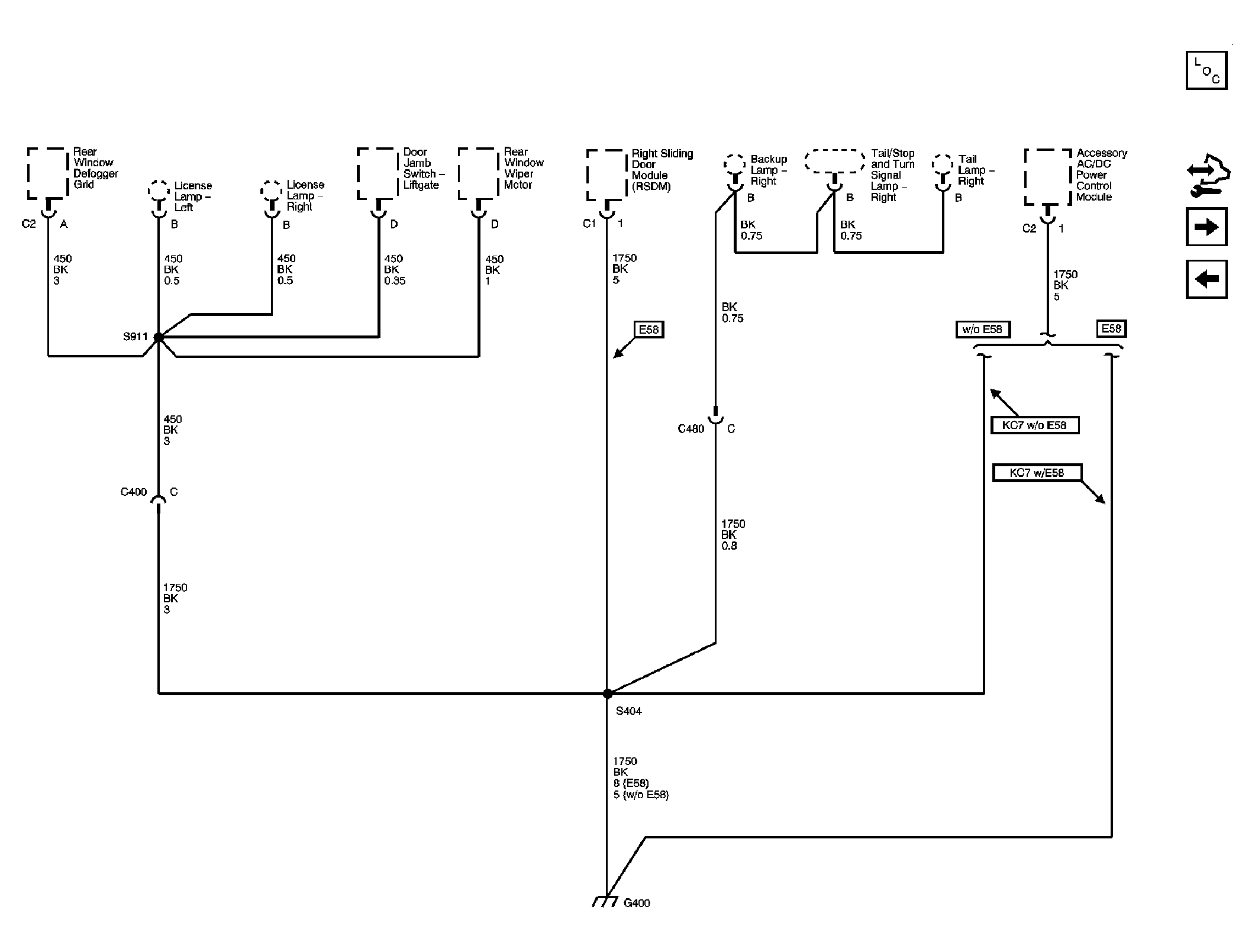

Fig 9: G400

GM1636861

Courtesy of GENERAL MOTORS CORP.

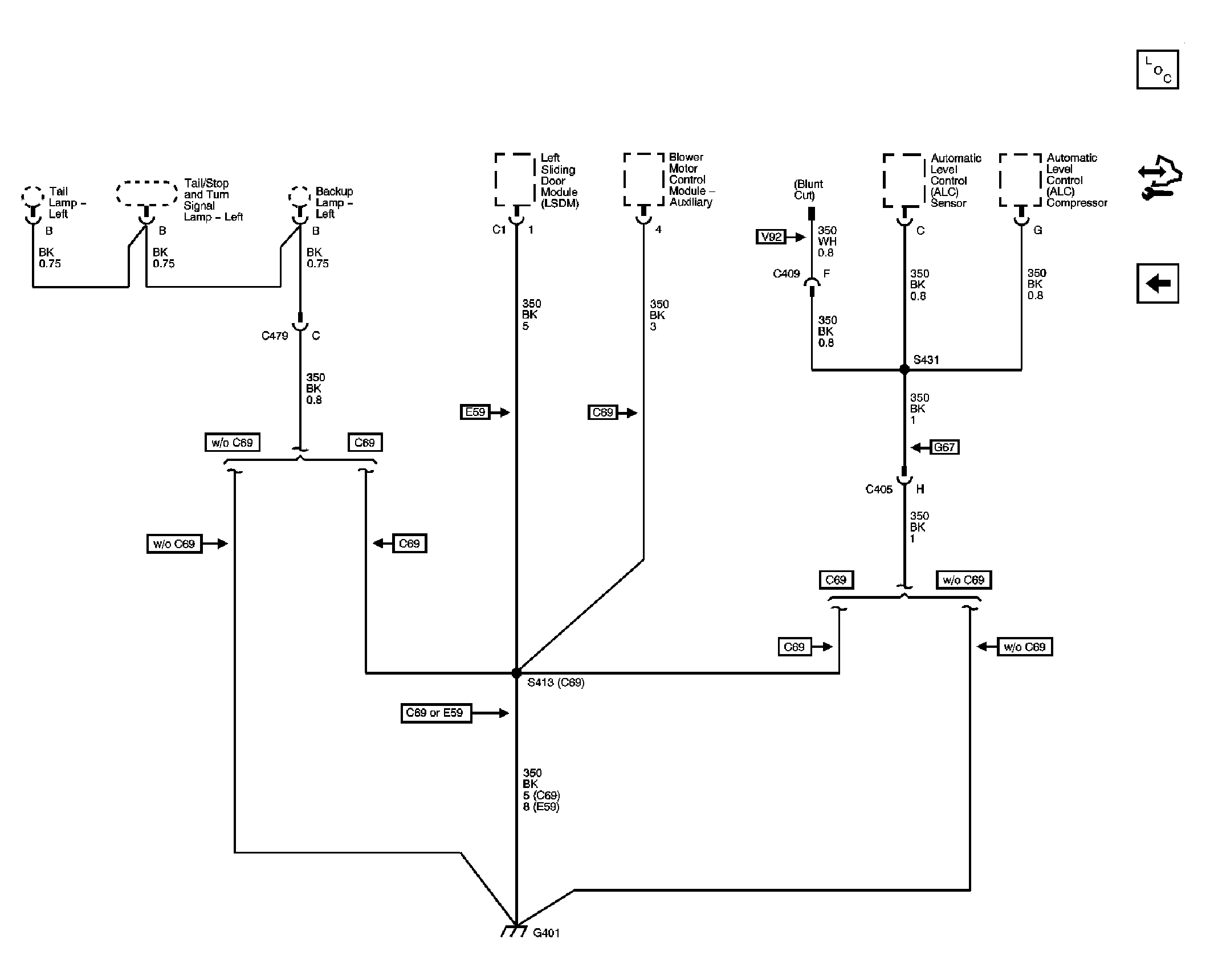

Fig 10: G401

GM1636862

Courtesy of GENERAL MOTORS CORP.
