Front Wheelhouse Liner Replacement

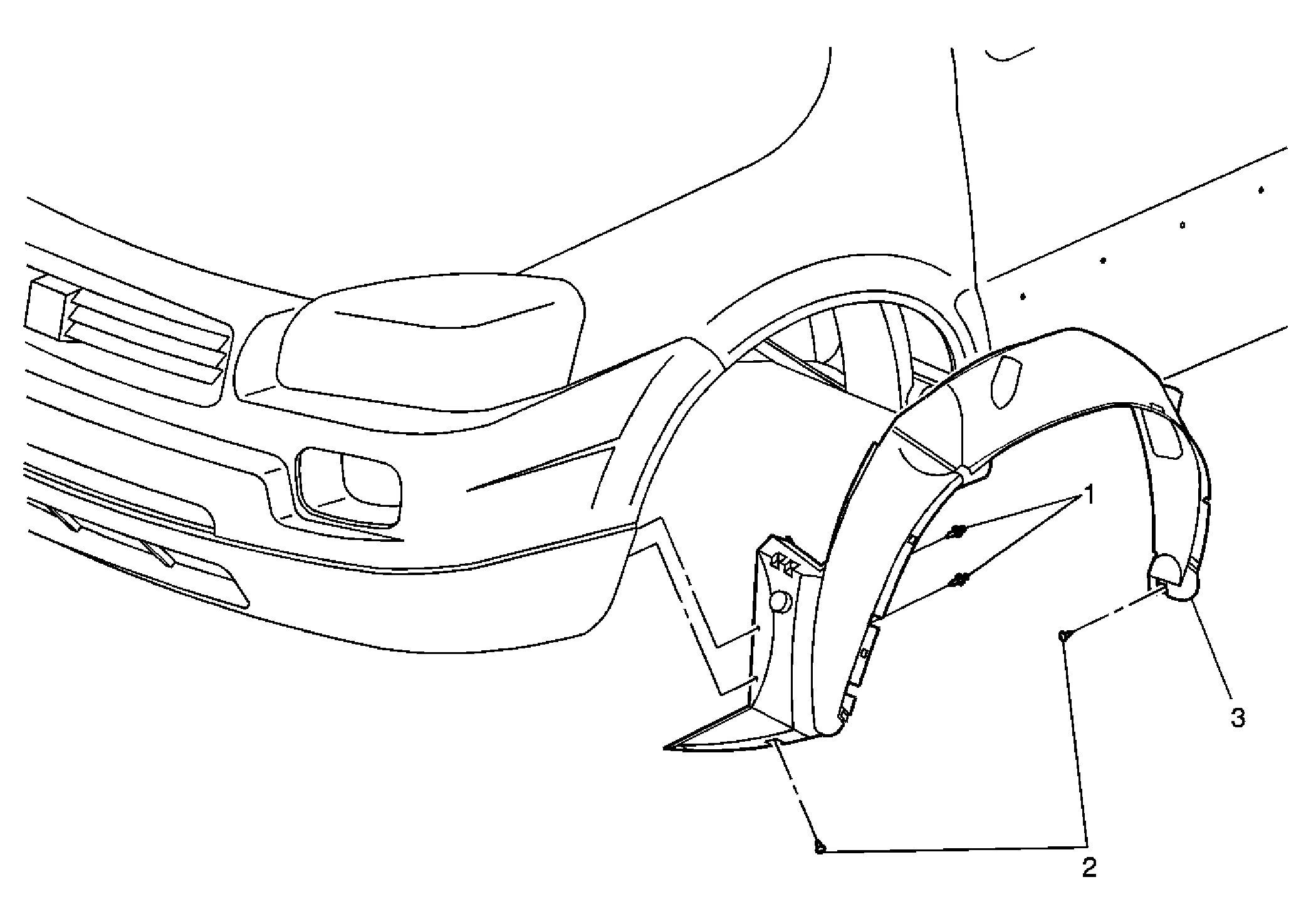

Fig 1: Replacing Front Wheelhouse Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Retainer, Front Wheelhouse Liner (Qty: 2)
2	Screw, Front Wheelhouse Liner (Qty: 9) Tighten: 2 N.m (18 lb in)
3	Liner Assembly, Front Wheelhouse
