Automatic Transmission Controls Schematics (LZ9)

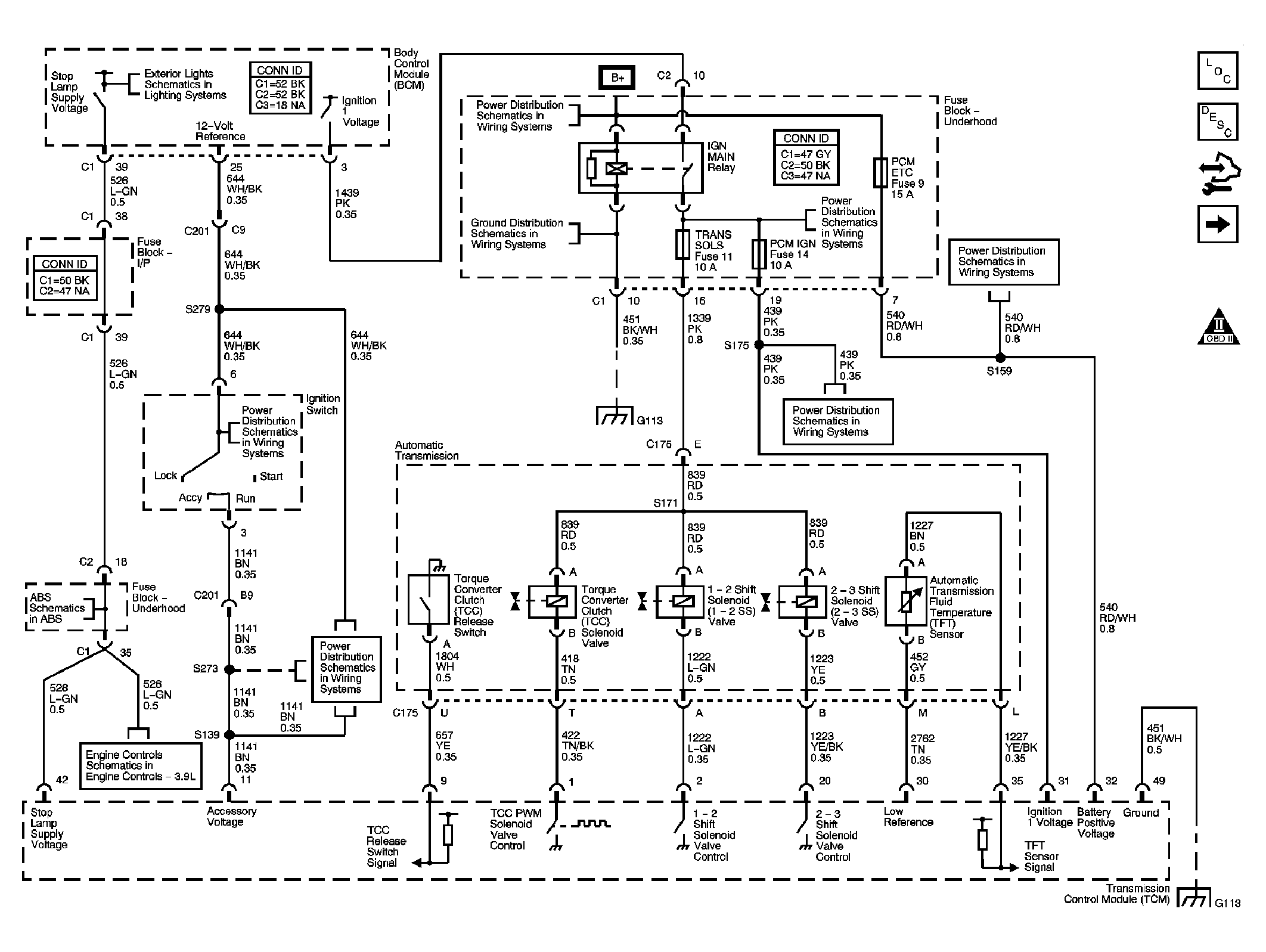

Fig 1: Ground, Power, Shift Solenoids, Stop Lamp Switch, TCC & TFT Schematic (LZ9)

Courtesy of GENERAL MOTORS CORP.

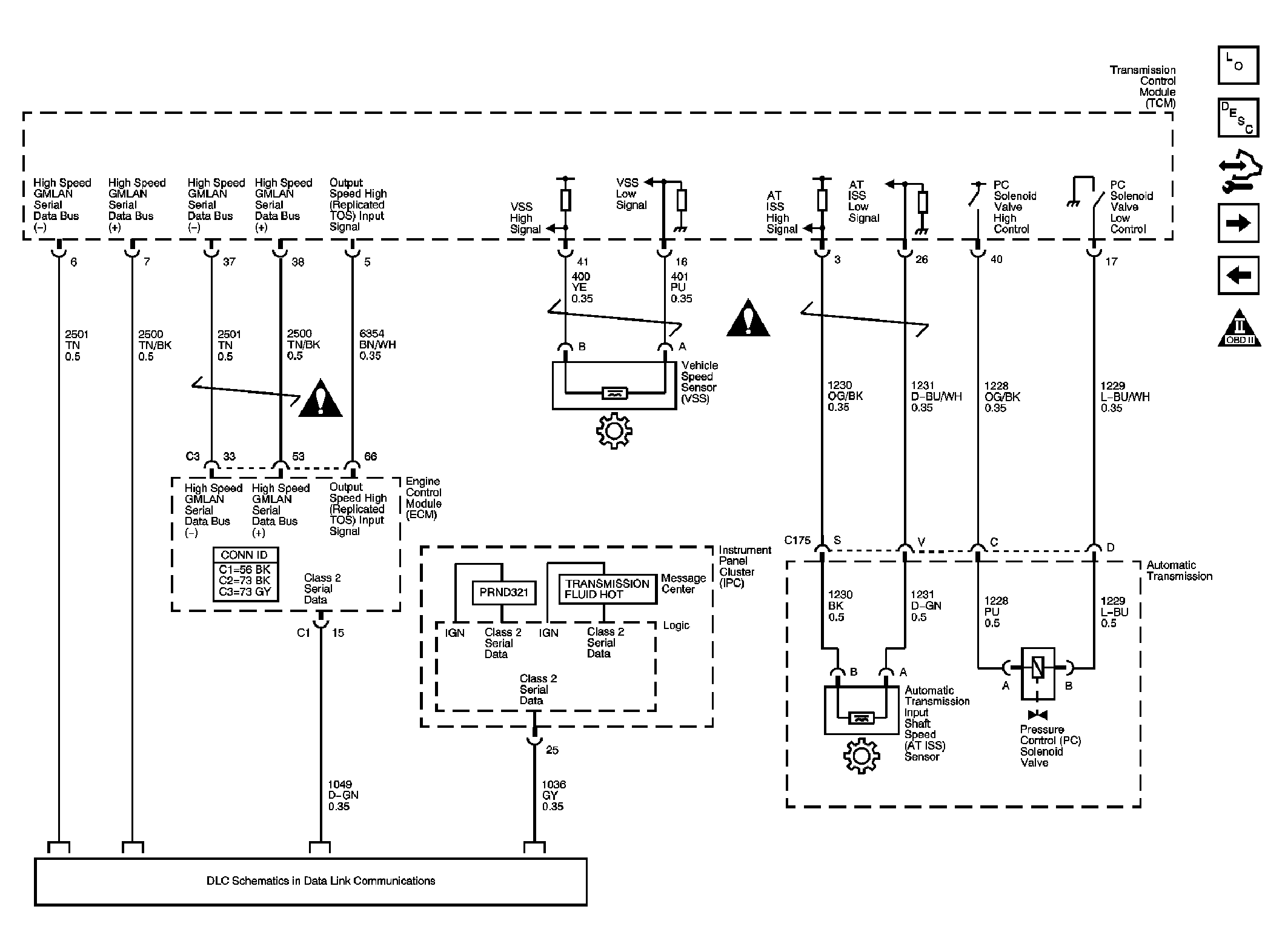

Fig 2: Indicators, ISS, Pressure Control, Serial Data & VSS Schematic (LZ9)

Courtesy of GENERAL MOTORS CORP.

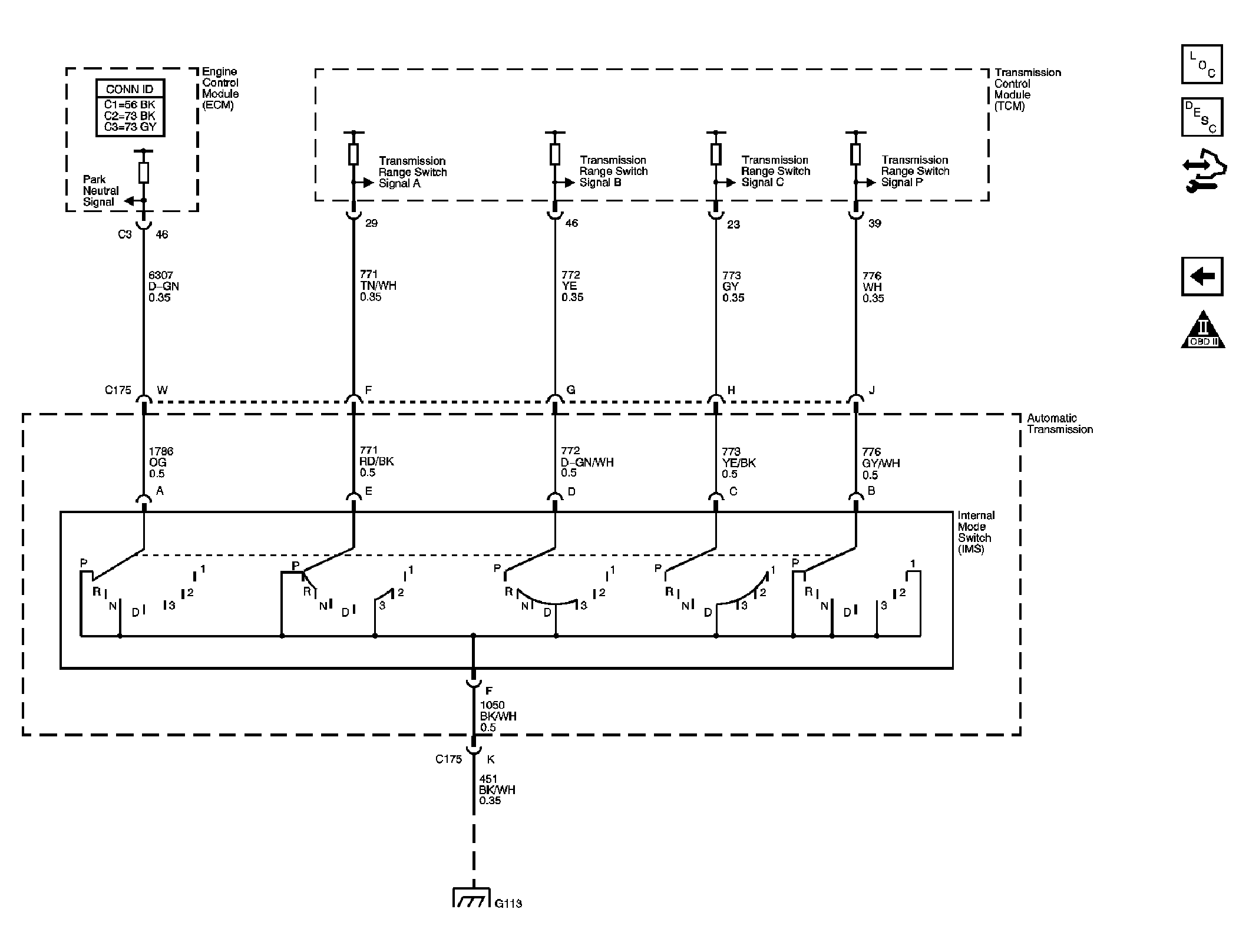

Fig 3: Internal Mode Switch Schematic (LZ9)

Courtesy of GENERAL MOTORS CORP.
