Automatic Transmission Controls Schematics (LX9)

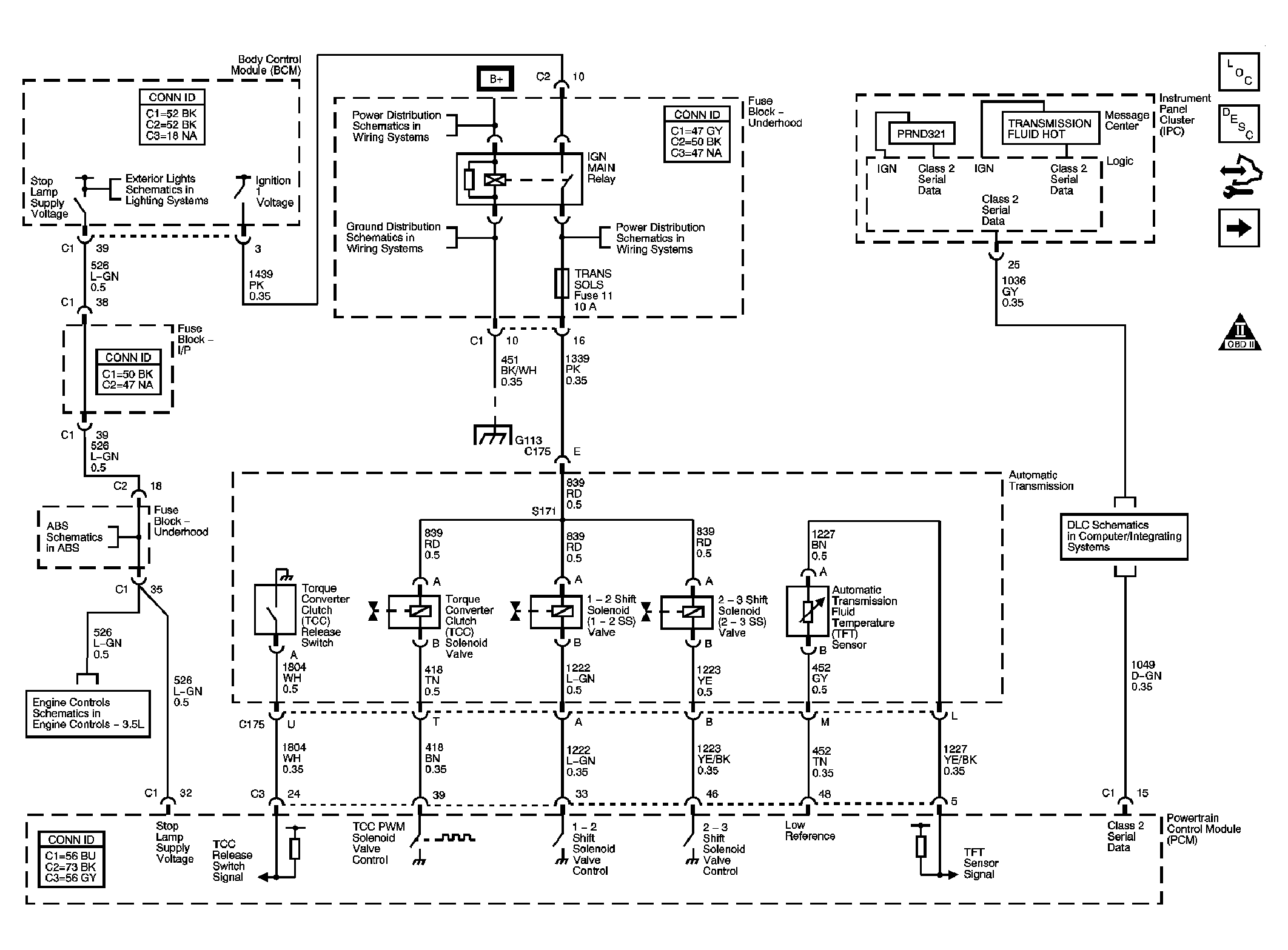

Fig 1: Shift Solenoids, TCC & TFT Schematic (LX9)

Courtesy of GENERAL MOTORS CORP.

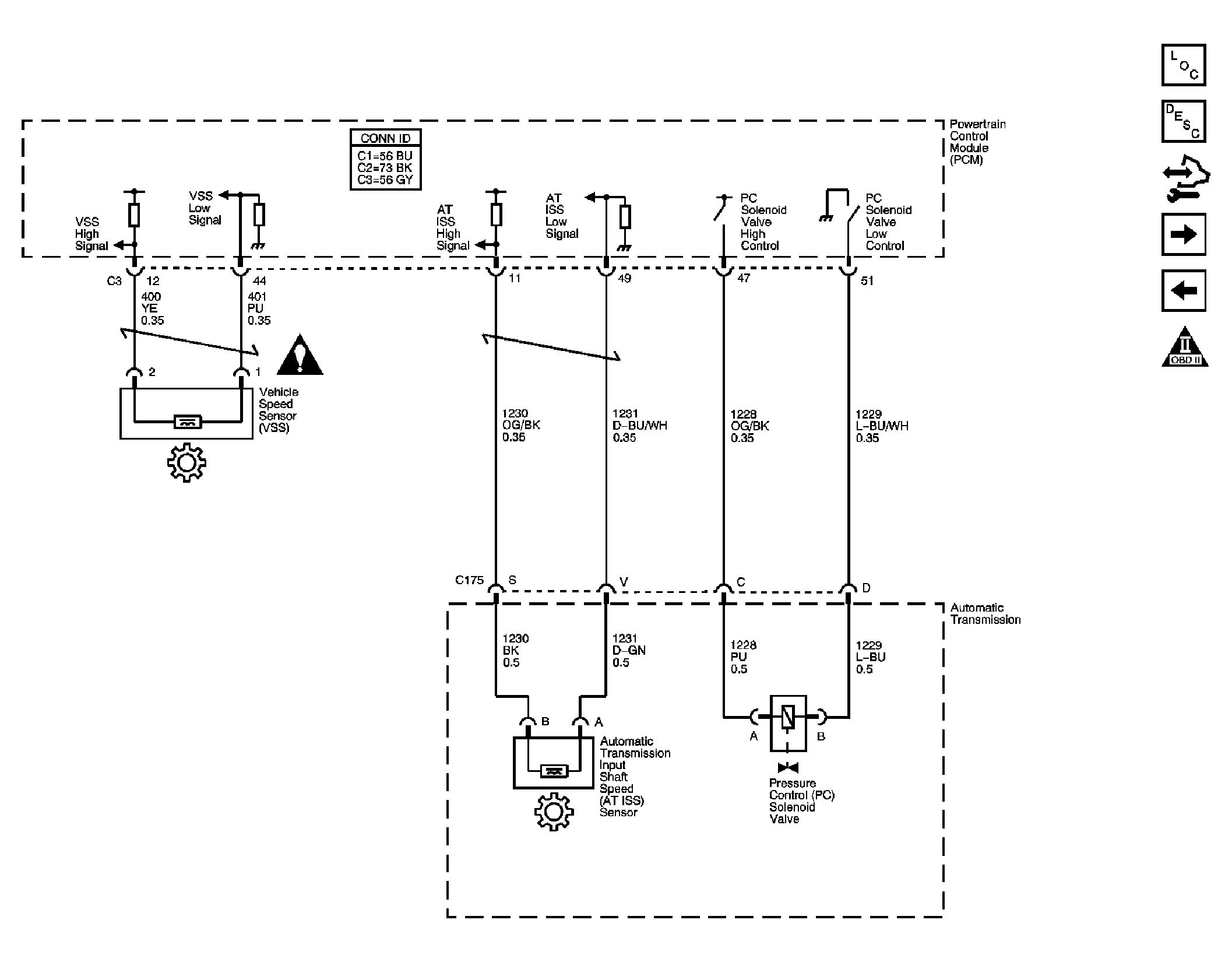

Fig 2: ISS, Pressure Control & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

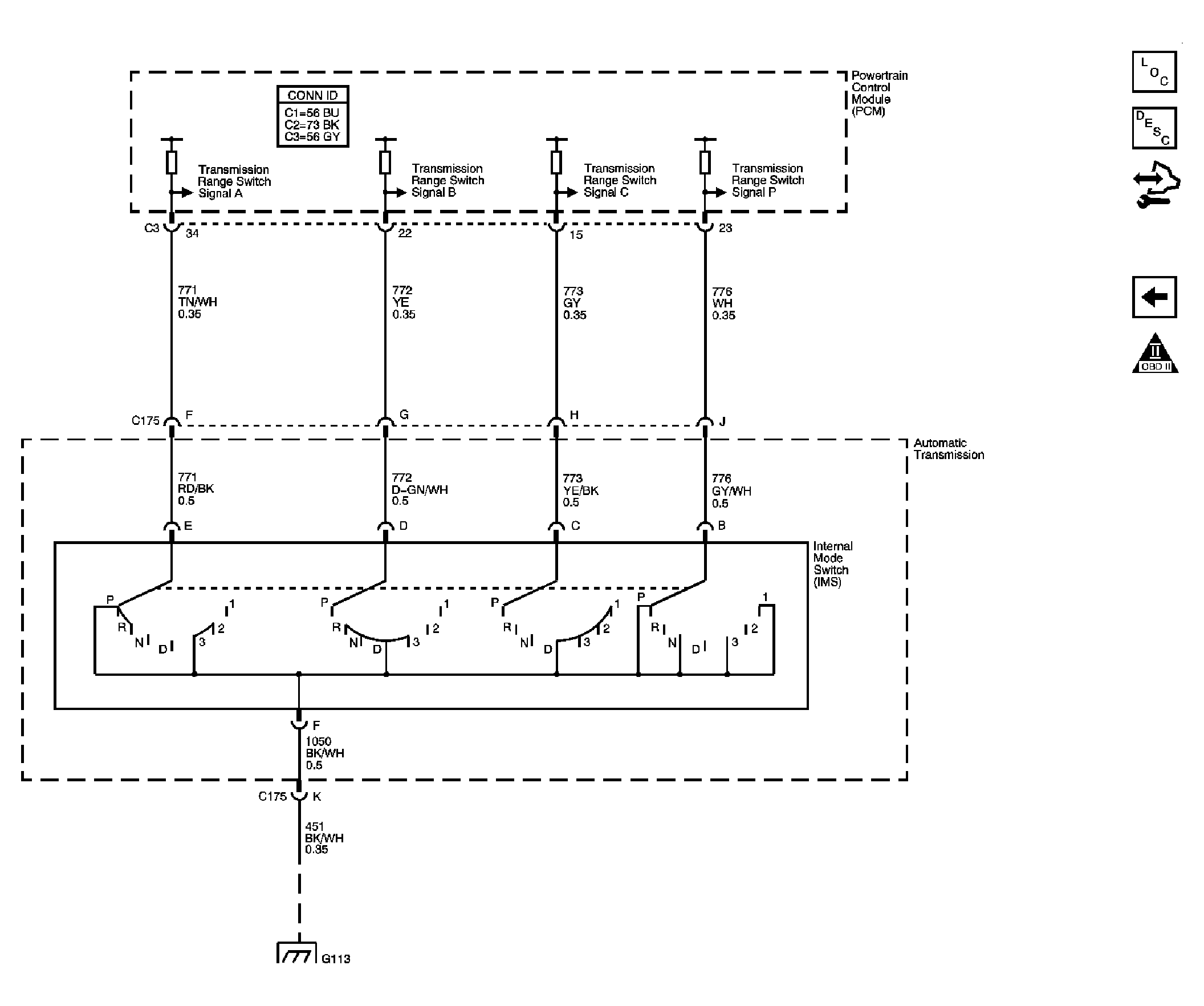

Fig 3: Internal Mode Switch Schematic

Courtesy of GENERAL MOTORS CORP.
