SIR Schematics (AW9)

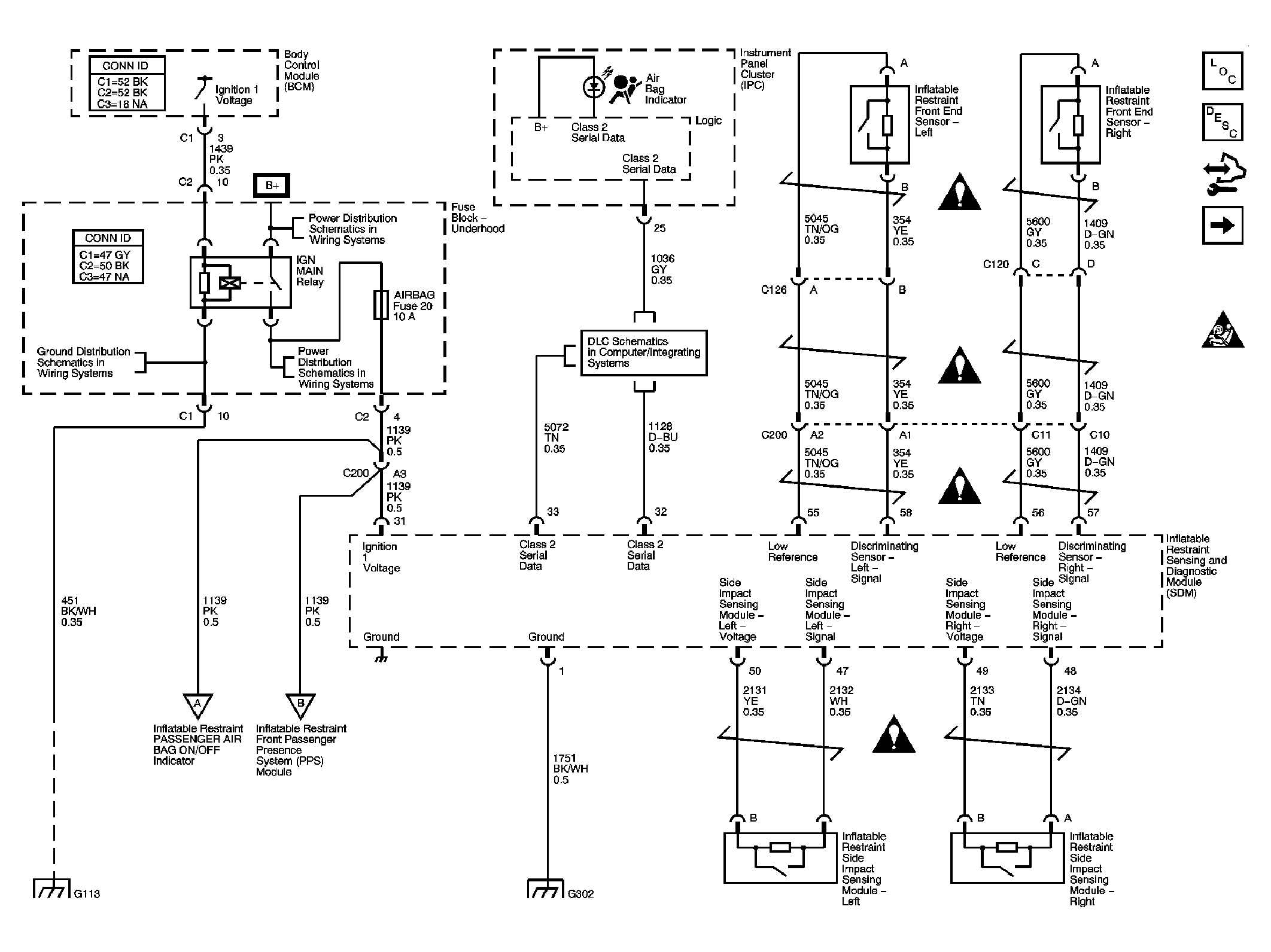

Fig 1: Ground, Impact Sensors, Indicator & Power Schematic
GM1636911Courtesy of GENERAL MOTORS CORP.

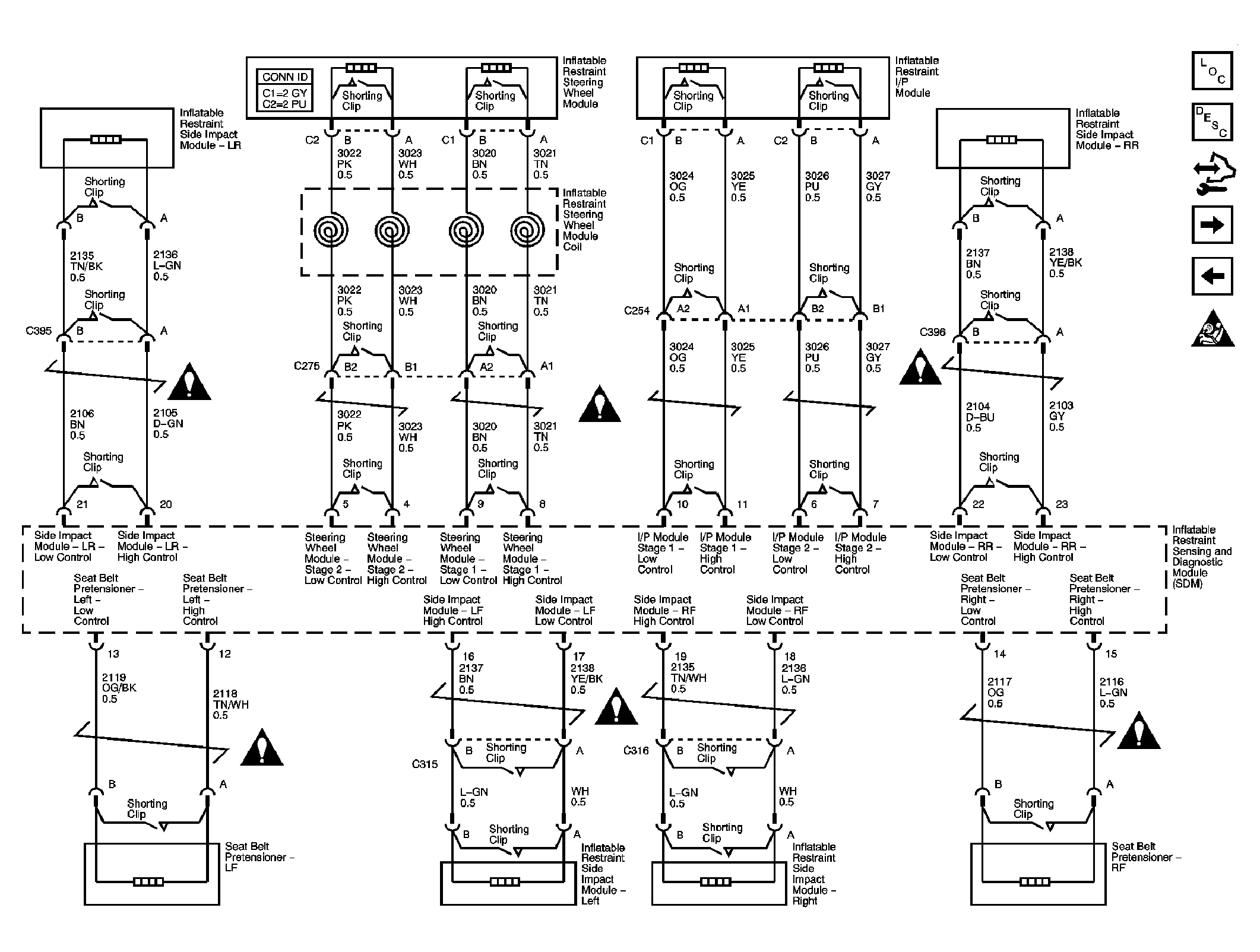

Fig 2: Impact Modules & Pretensioners Schematic
GM1636912Courtesy of GENERAL MOTORS CORP.

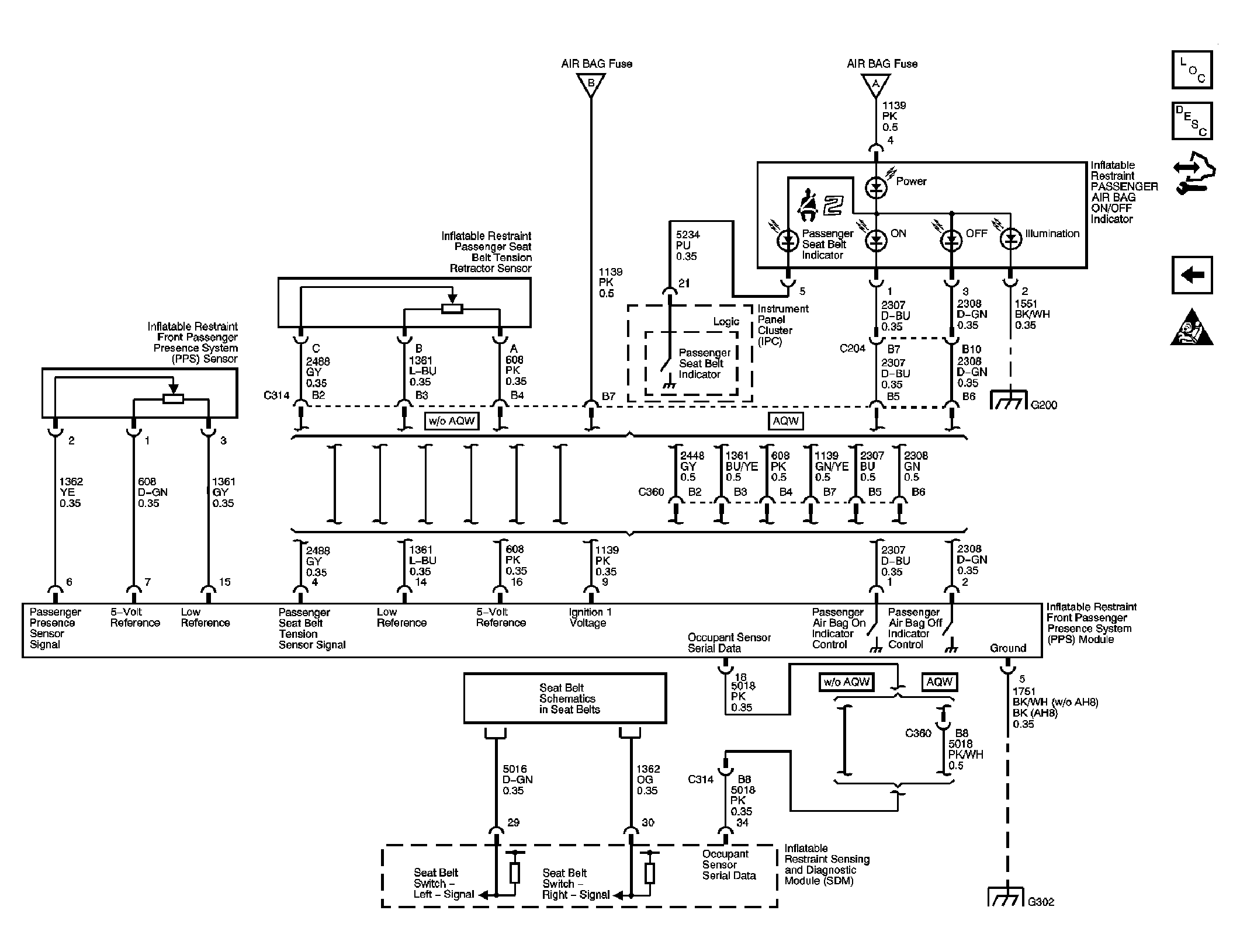

Fig 3: Occupant Sensing Schematic
GM1636913Courtesy of GENERAL MOTORS CORP.
