SIR Schematics (AK5 or AJ7)

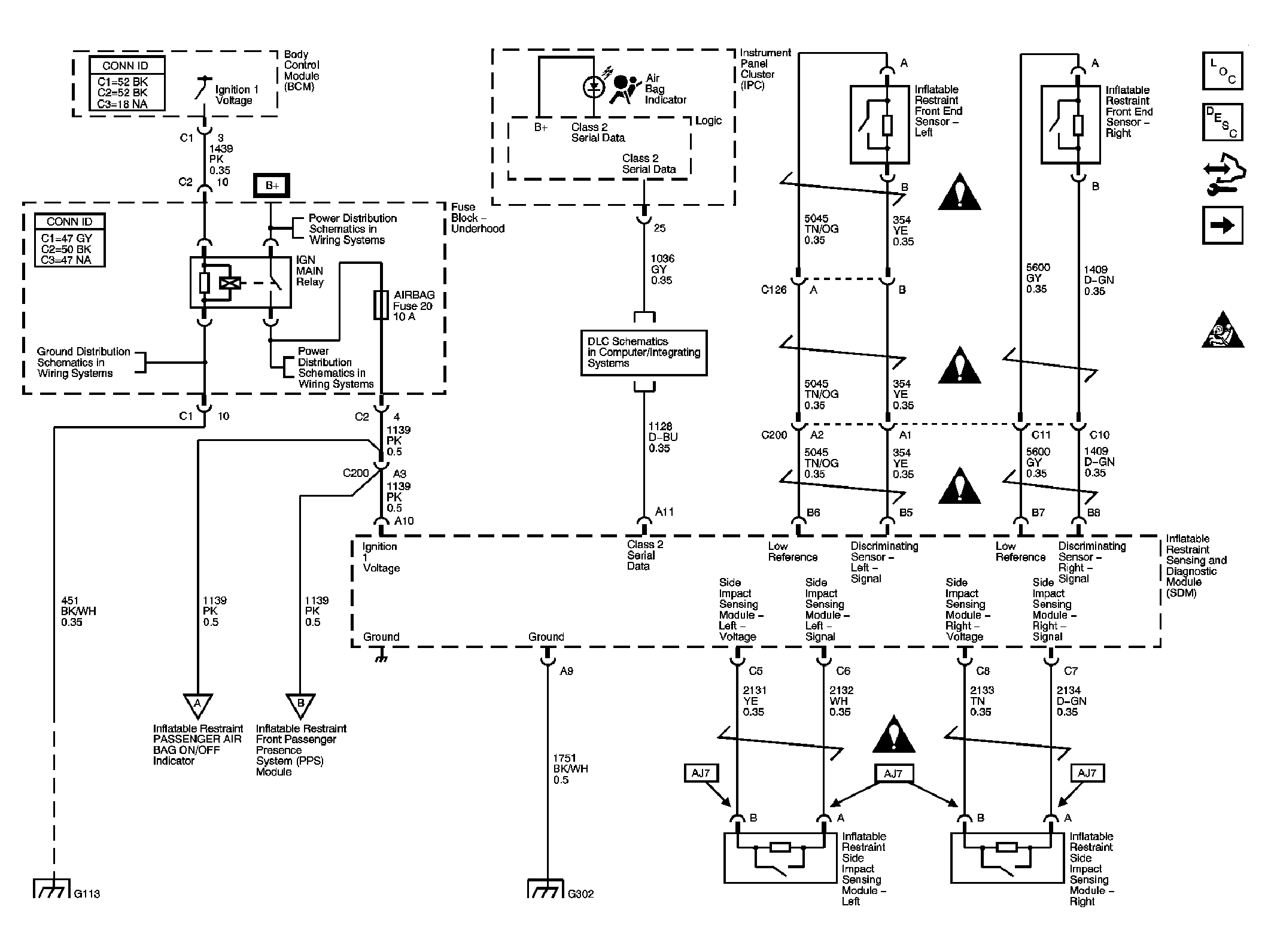

Fig 1: Ground, Impact Sensors, Indicator & Power Schematic
GM1636908Courtesy of GENERAL MOTORS CORP.

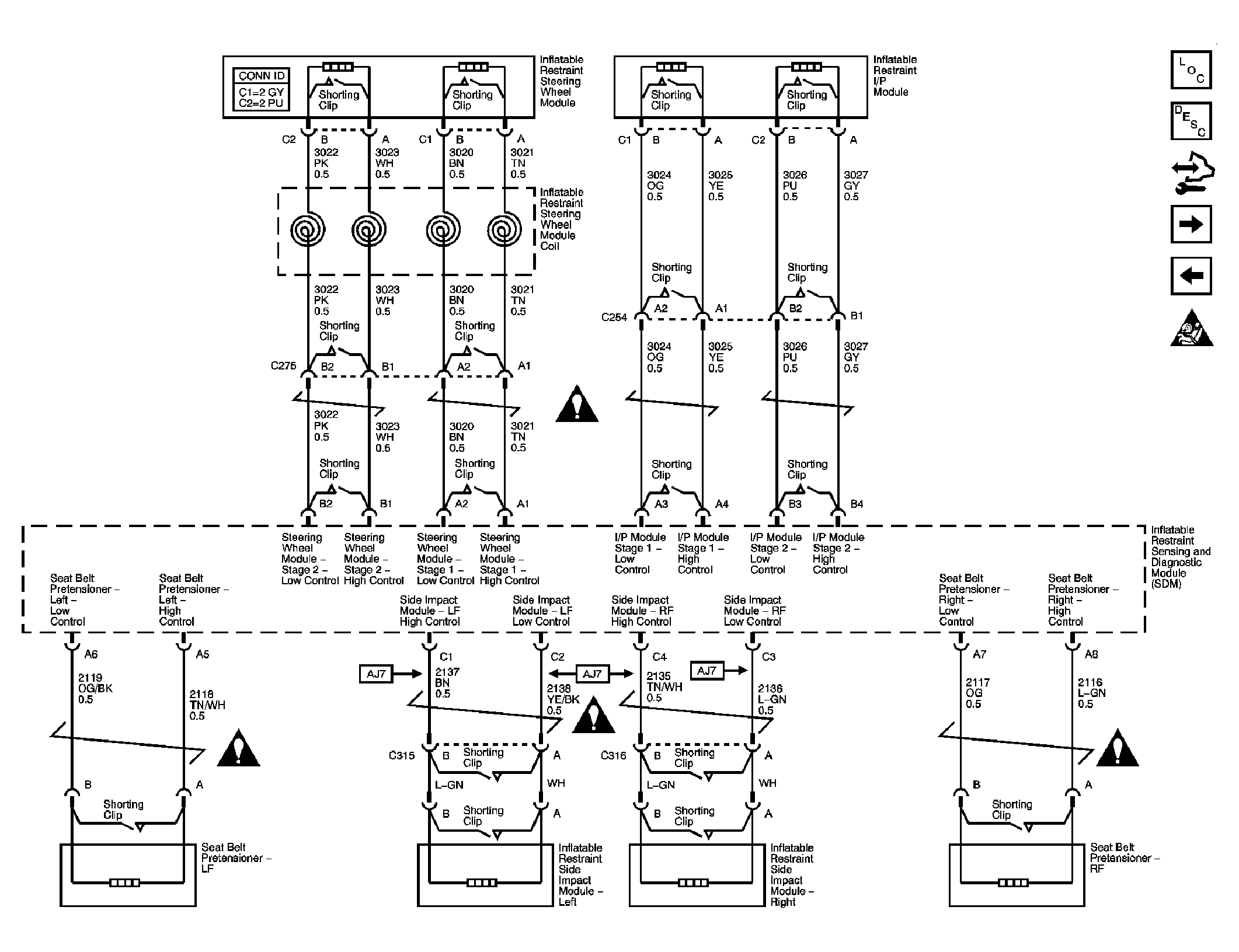

Fig 2: Impact Modules & Pretensioners Schematic
GM1636909Courtesy of GENERAL MOTORS CORP.

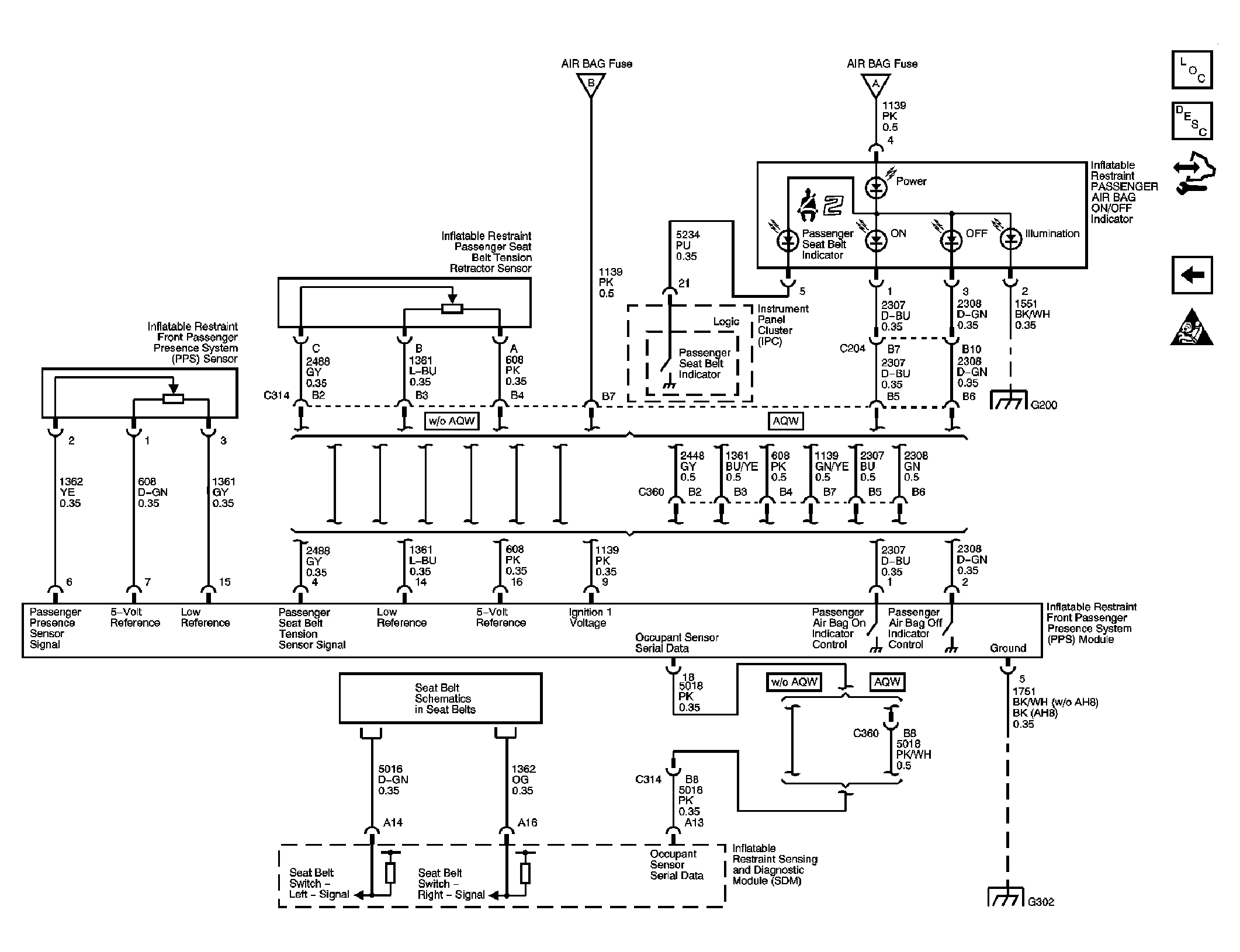

Fig 3: Occupant Sensing Schematic
GM1636910Courtesy of GENERAL MOTORS CORP.
