HVAC Schematics

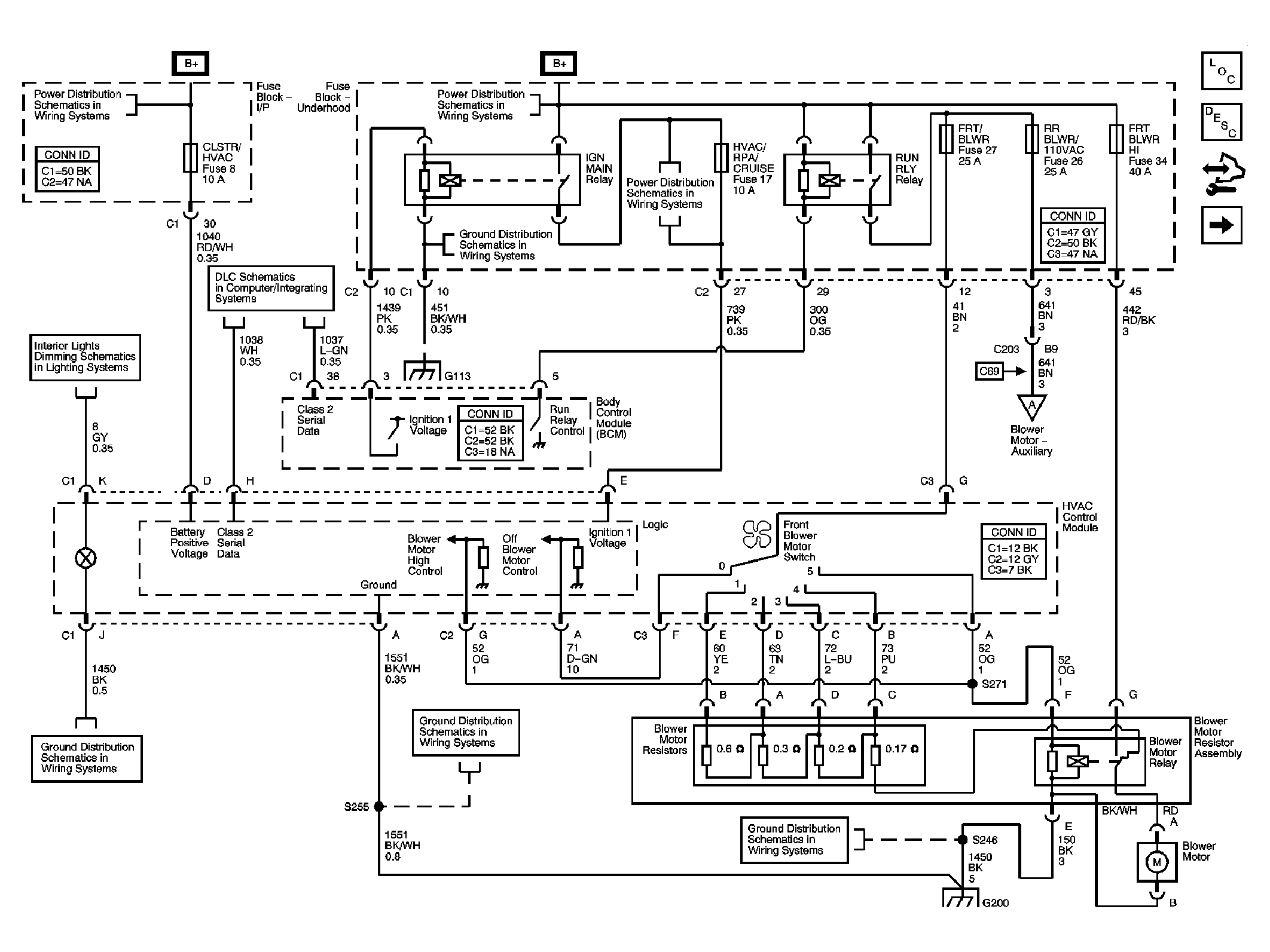

Fig 1: Front Blower Control, Ground & Power Schematic
GM1636921Courtesy of GENERAL MOTORS CORP.

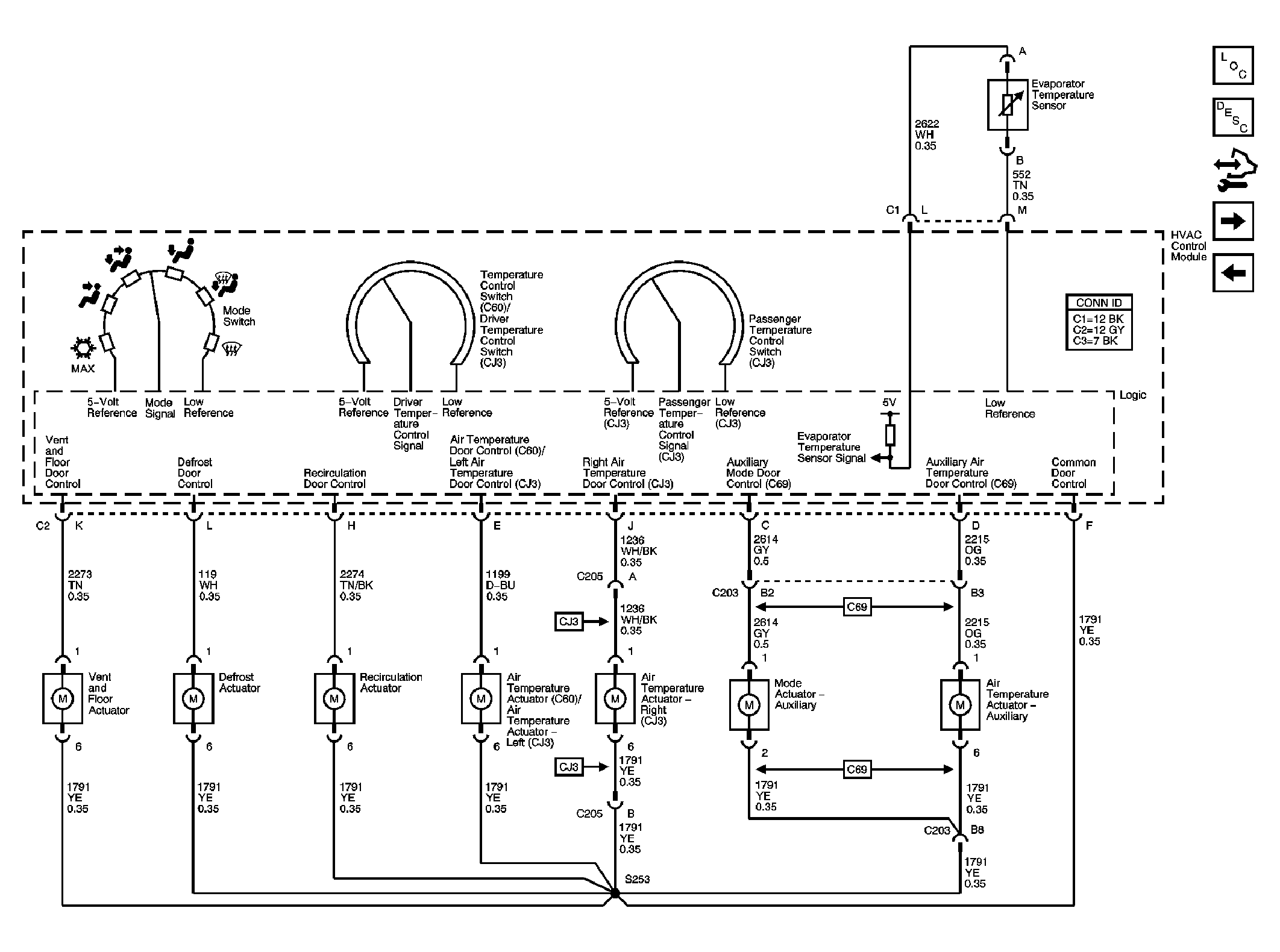

Fig 2: Air Delivery & Temperature Control Schematic
GM1636922Courtesy of GENERAL MOTORS CORP.

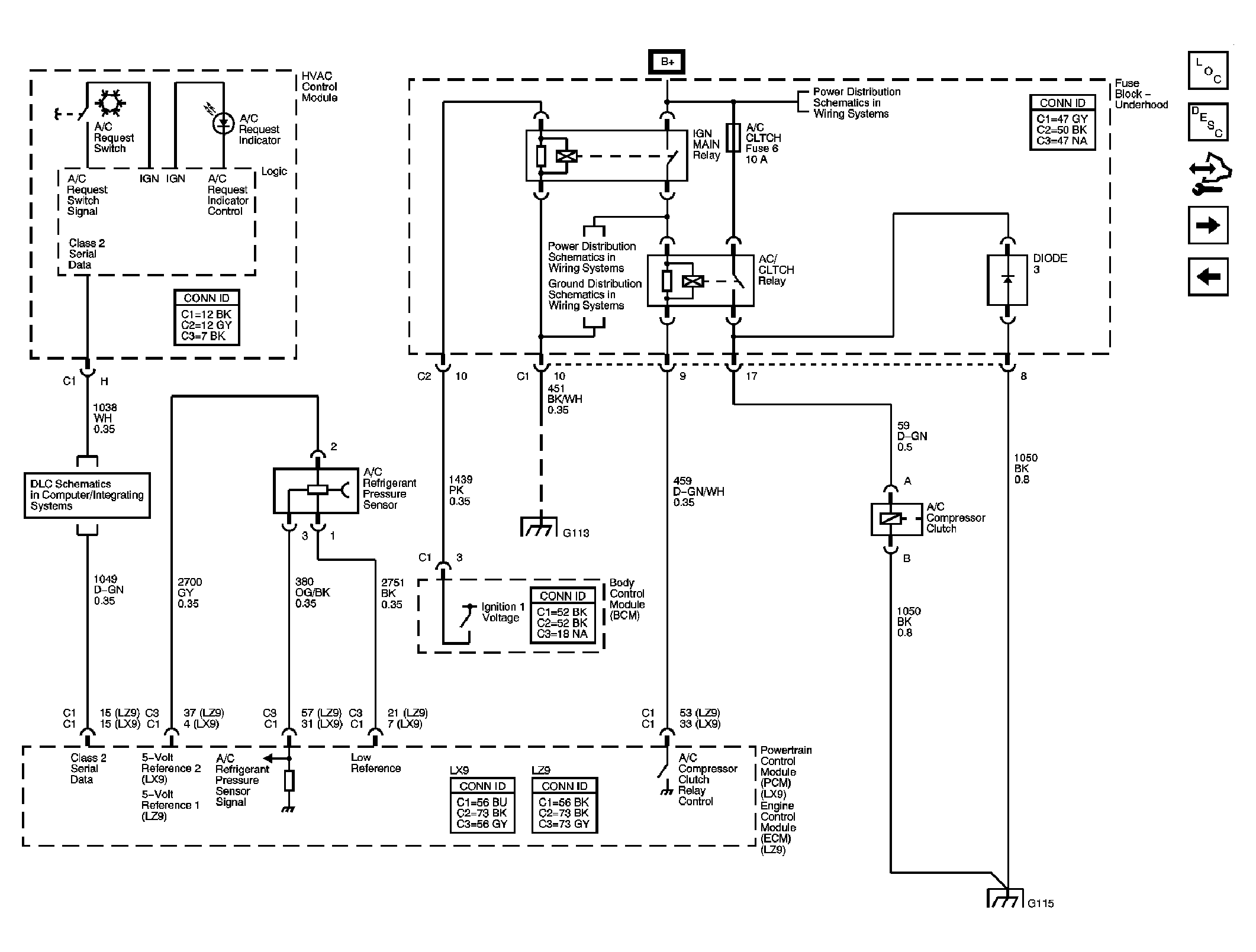

Fig 3: A/C Compressor Controls Schematic
GM1636923Courtesy of GENERAL MOTORS CORP.

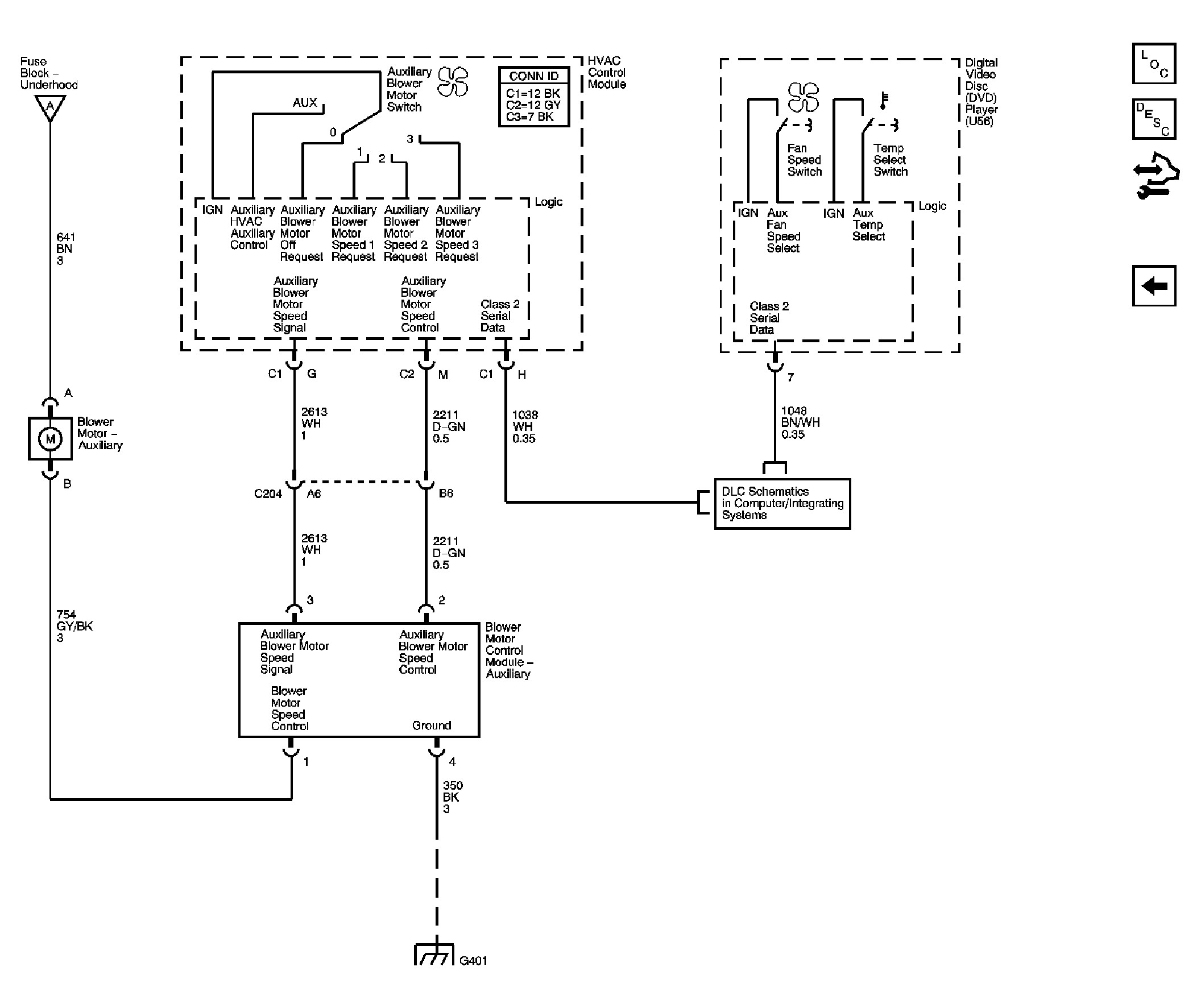

Fig 4: Auxiliary Blower Controls Schematic - C69
GM1636925Courtesy of GENERAL MOTORS CORP.
