Instrument Cluster Schematics

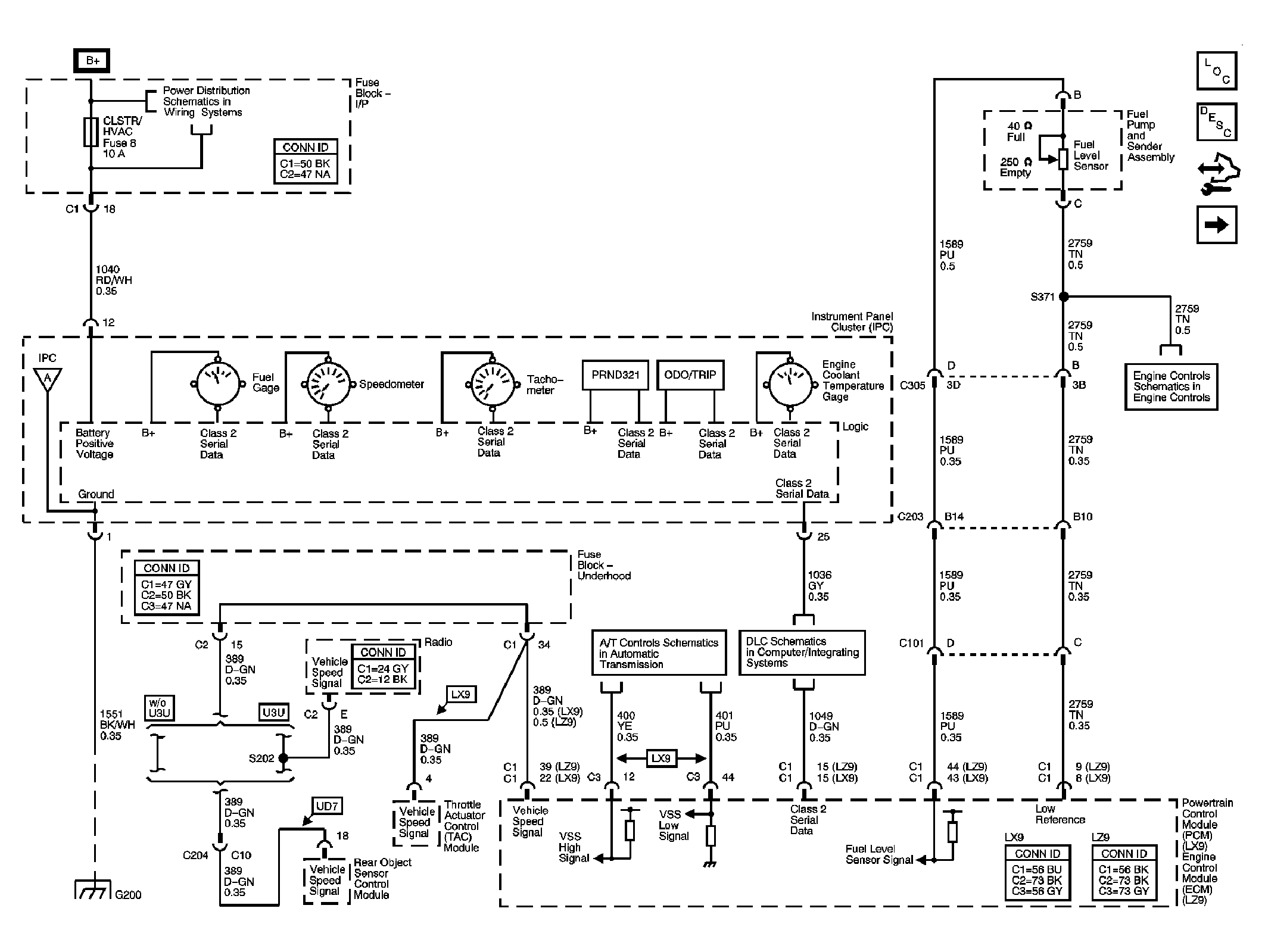

Fig 1: Gages, Ground, and Power
GM1636927Courtesy of GENERAL MOTORS CORP.

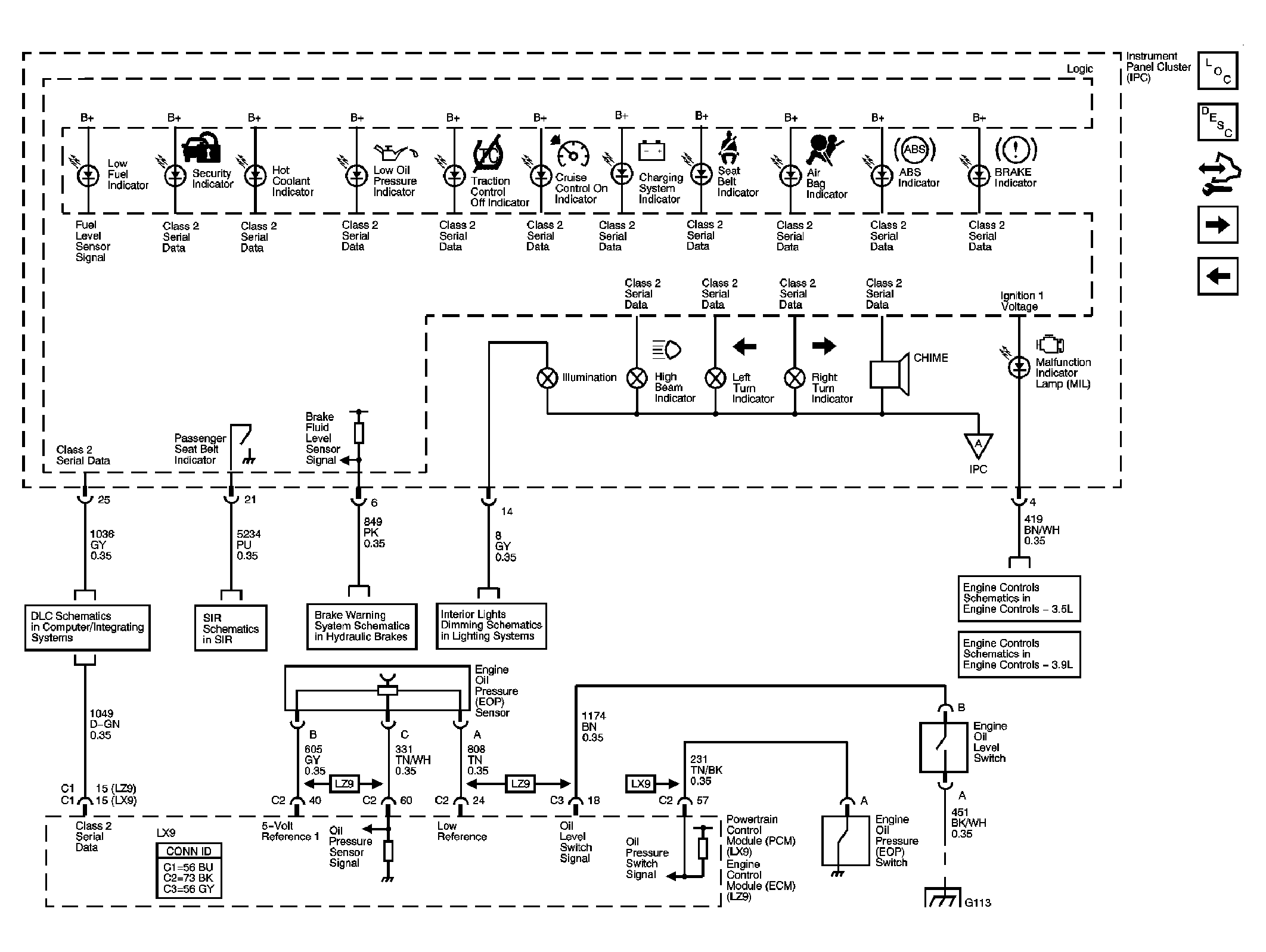

Fig 2: Indicators and Lighting
GM1636928Courtesy of GENERAL MOTORS CORP.

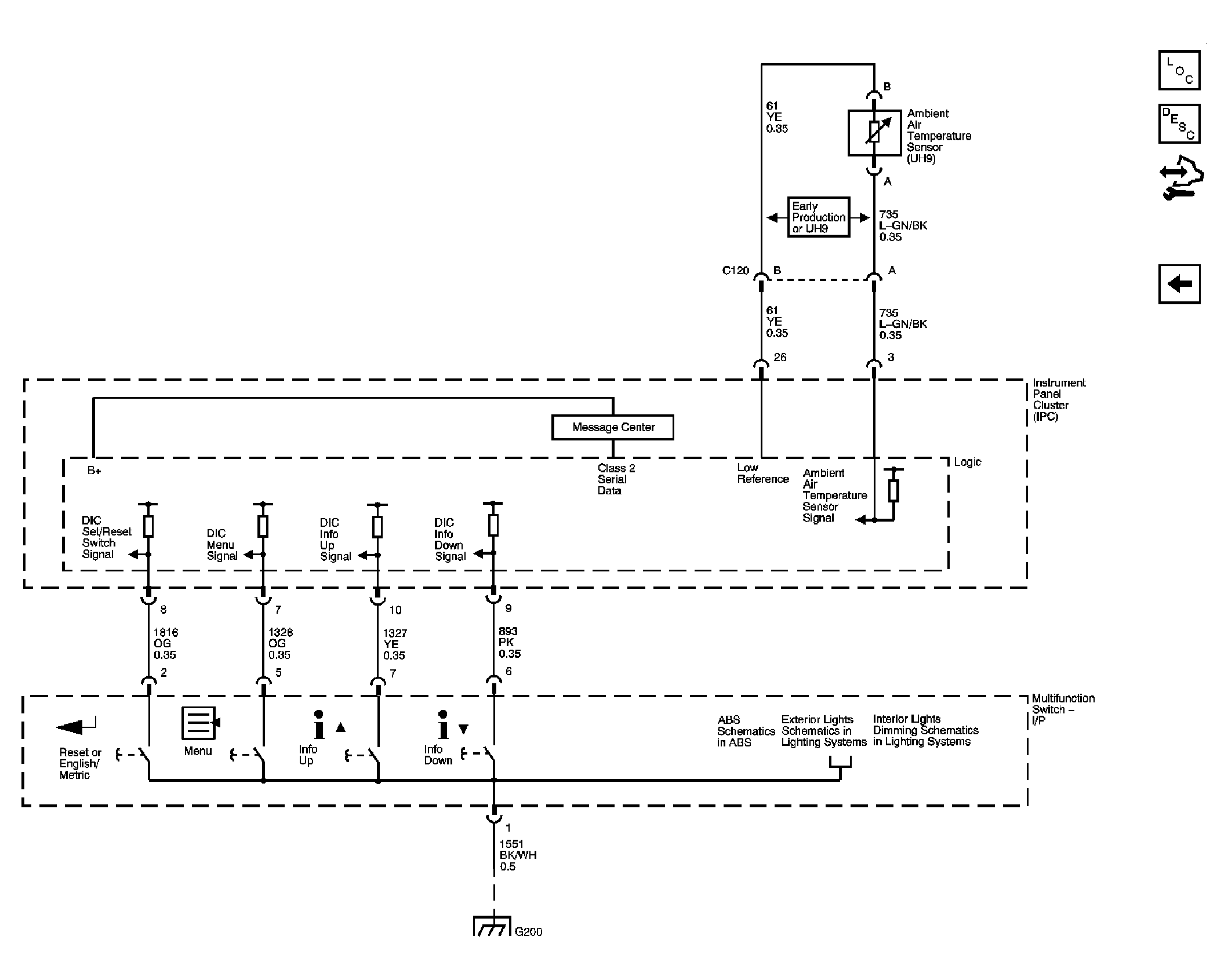

Fig 3: Messages
GM1636929Courtesy of GENERAL MOTORS CORP.
