Sliding Door Schematics

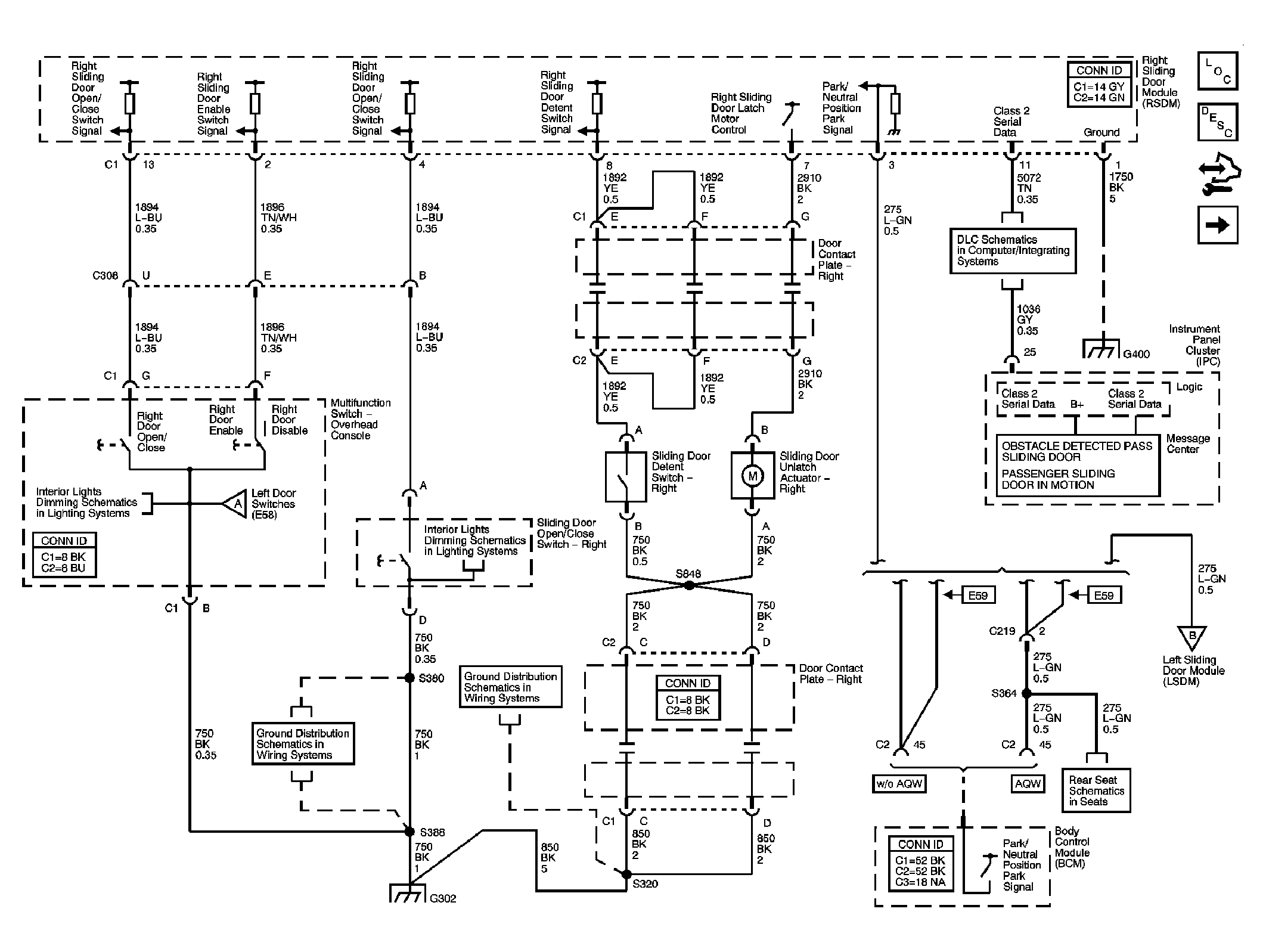

Fig 1: Right Door Controls Schematic
GM1636955Courtesy of GENERAL MOTORS CORP.

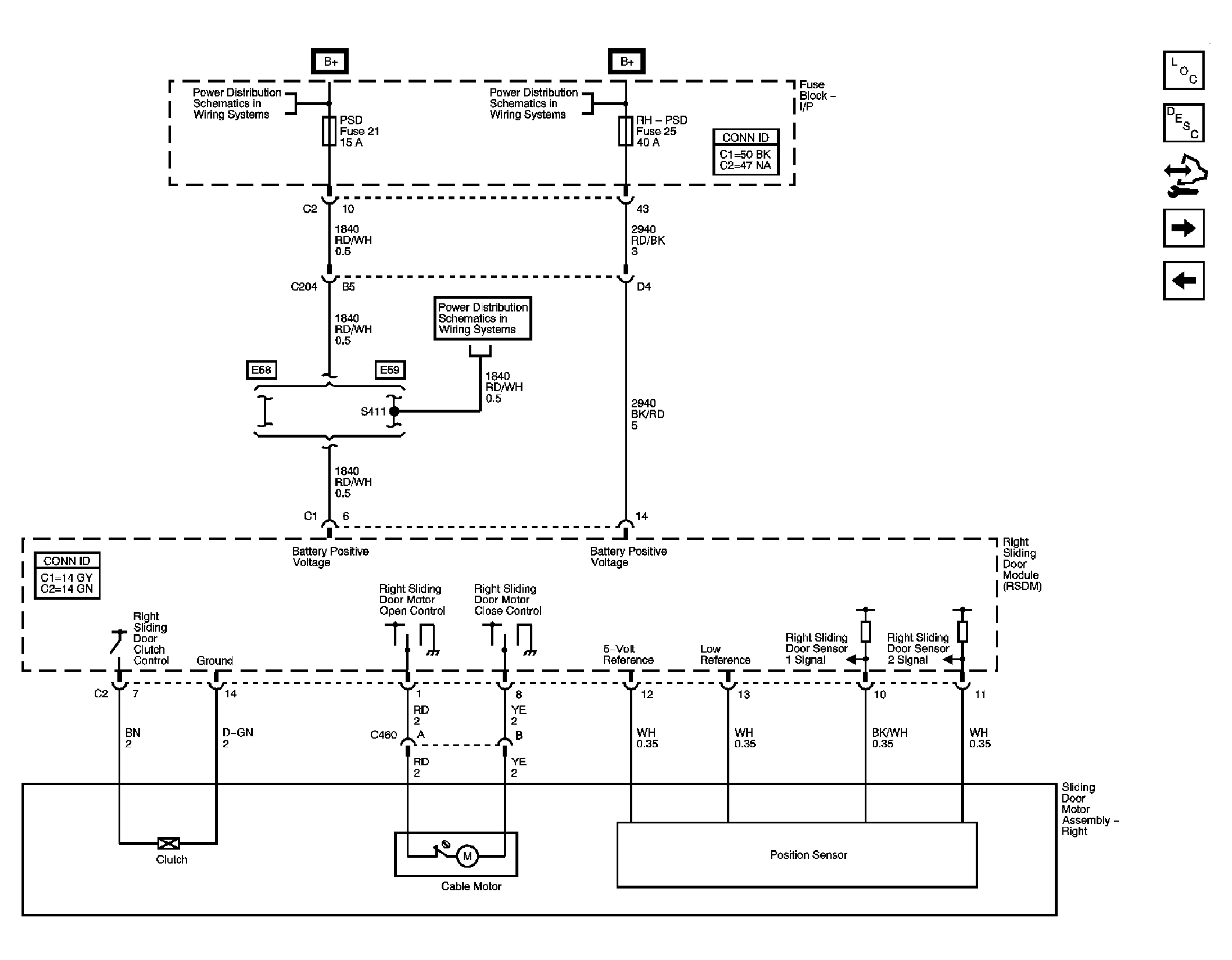

Fig 2: Right Door Motor Schematic
GM1636956Courtesy of GENERAL MOTORS CORP.

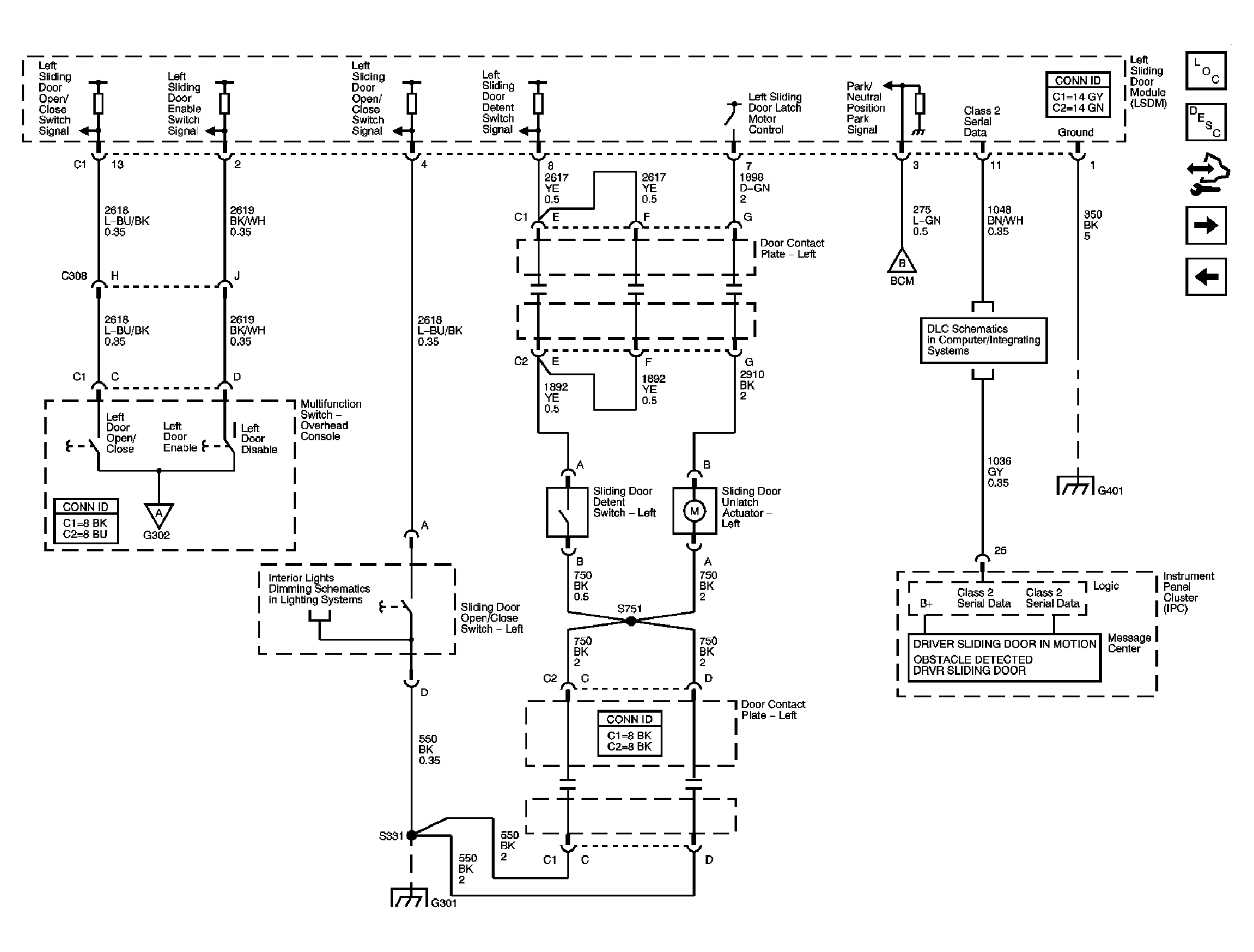

Fig 3: Left Door Controls Schematic
GM1636957Courtesy of GENERAL MOTORS CORP.

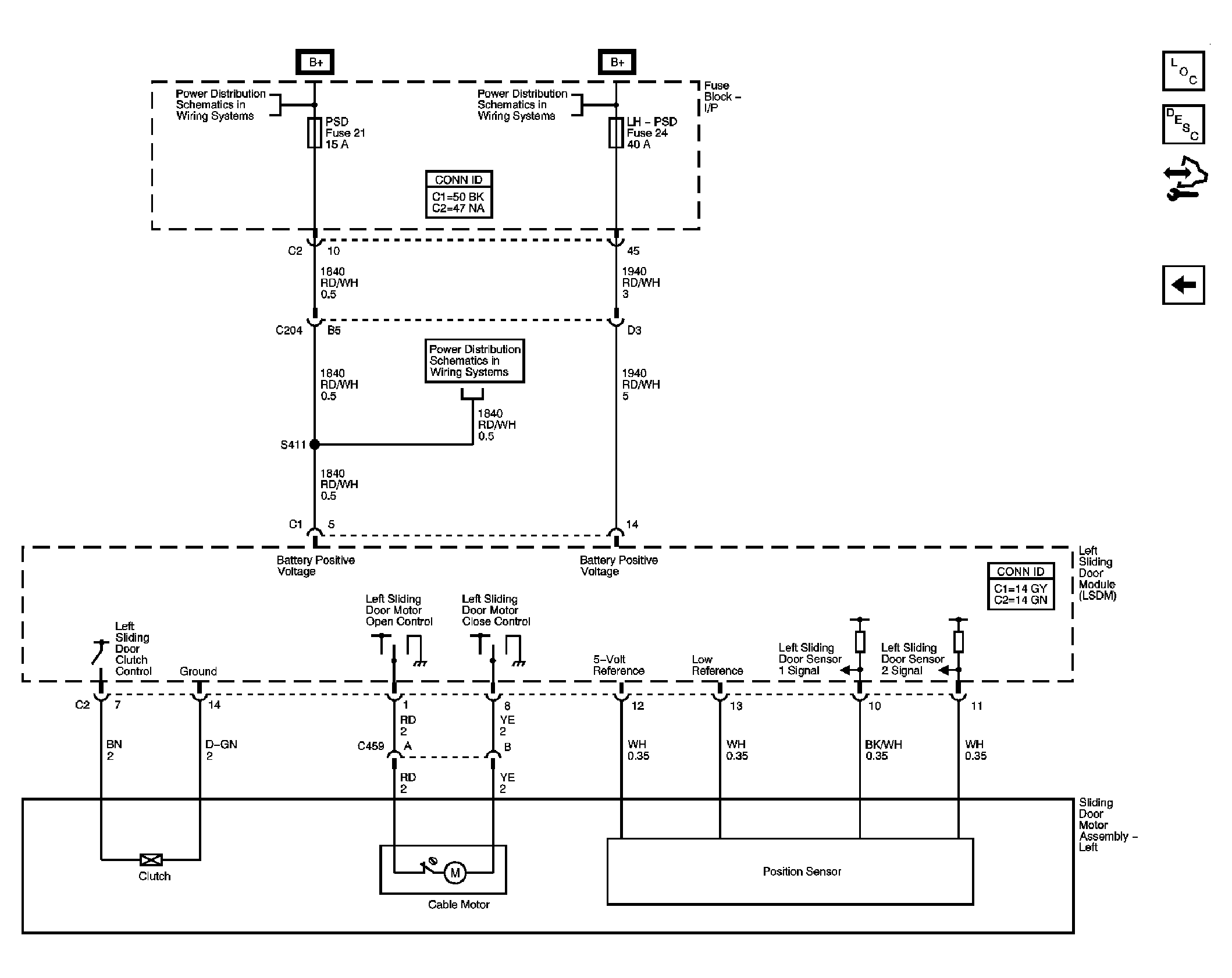

Fig 4: Left Door Motor Schematic
GM1636958Courtesy of GENERAL MOTORS CORP.
