Driver Seat Schematics

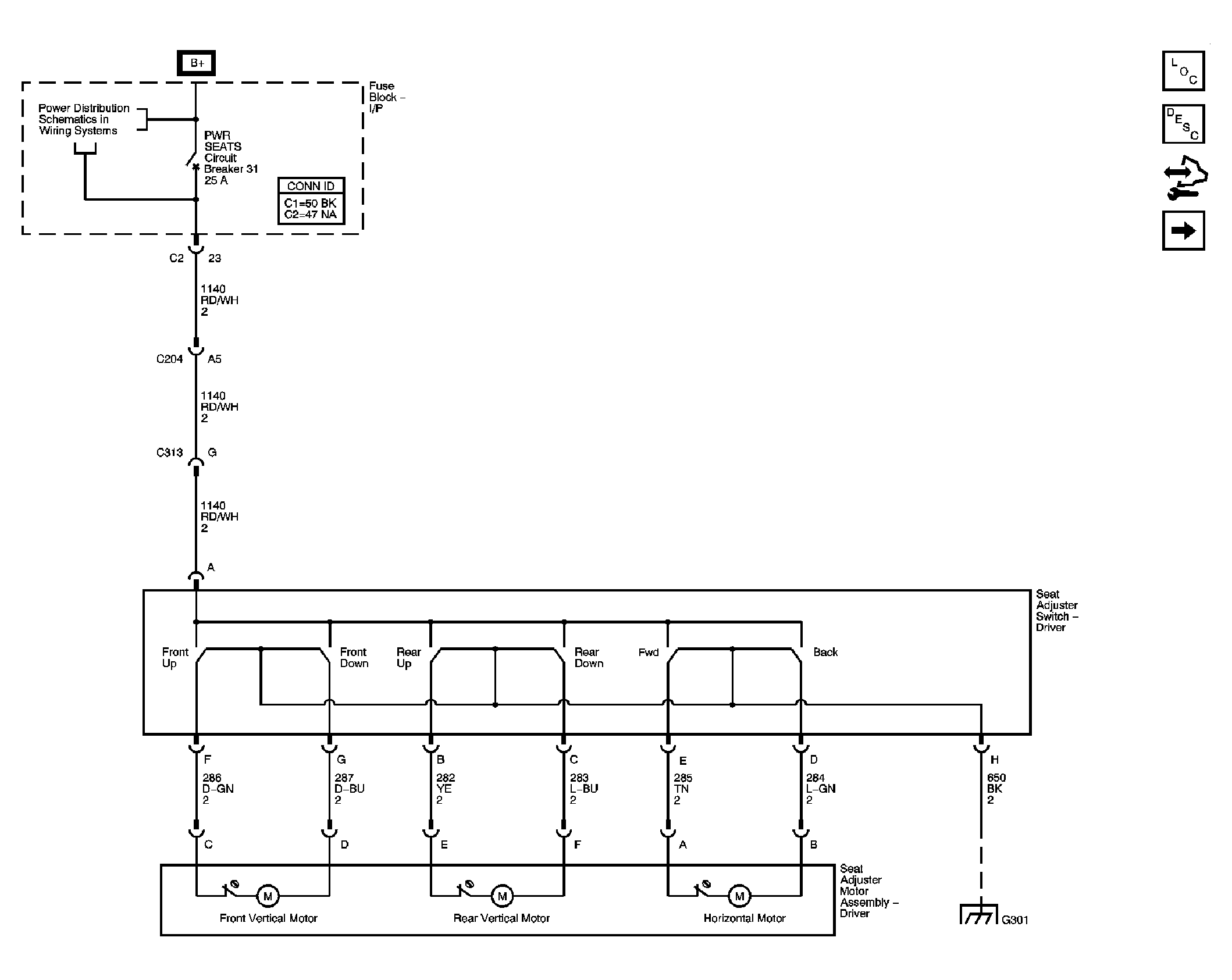

Fig 1: Power Seat Schematic
GM1636960Courtesy of GENERAL MOTORS CORP.

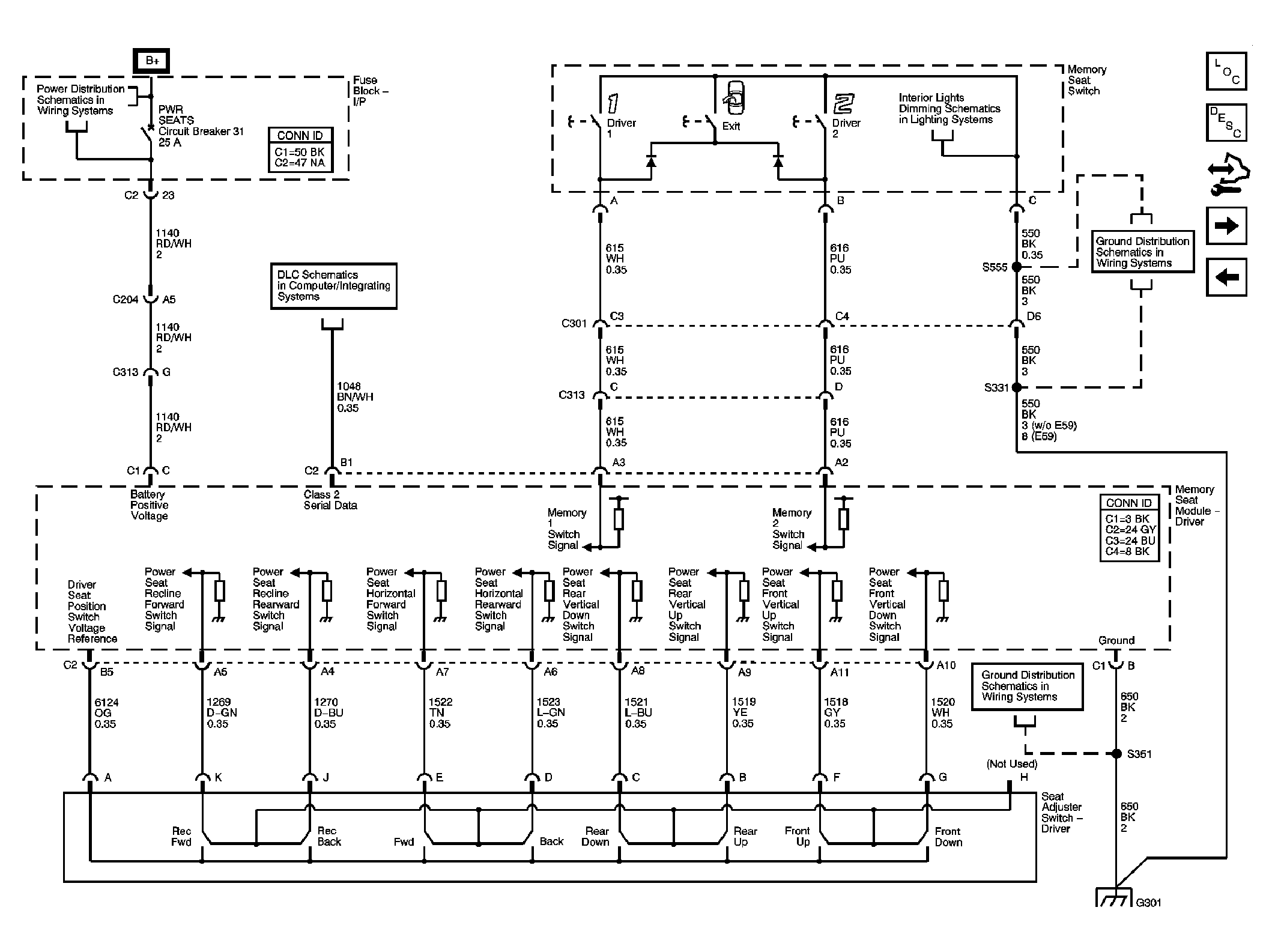

Fig 2: Memory Seat Controls Schematic
GM1636961Courtesy of GENERAL MOTORS CORP.

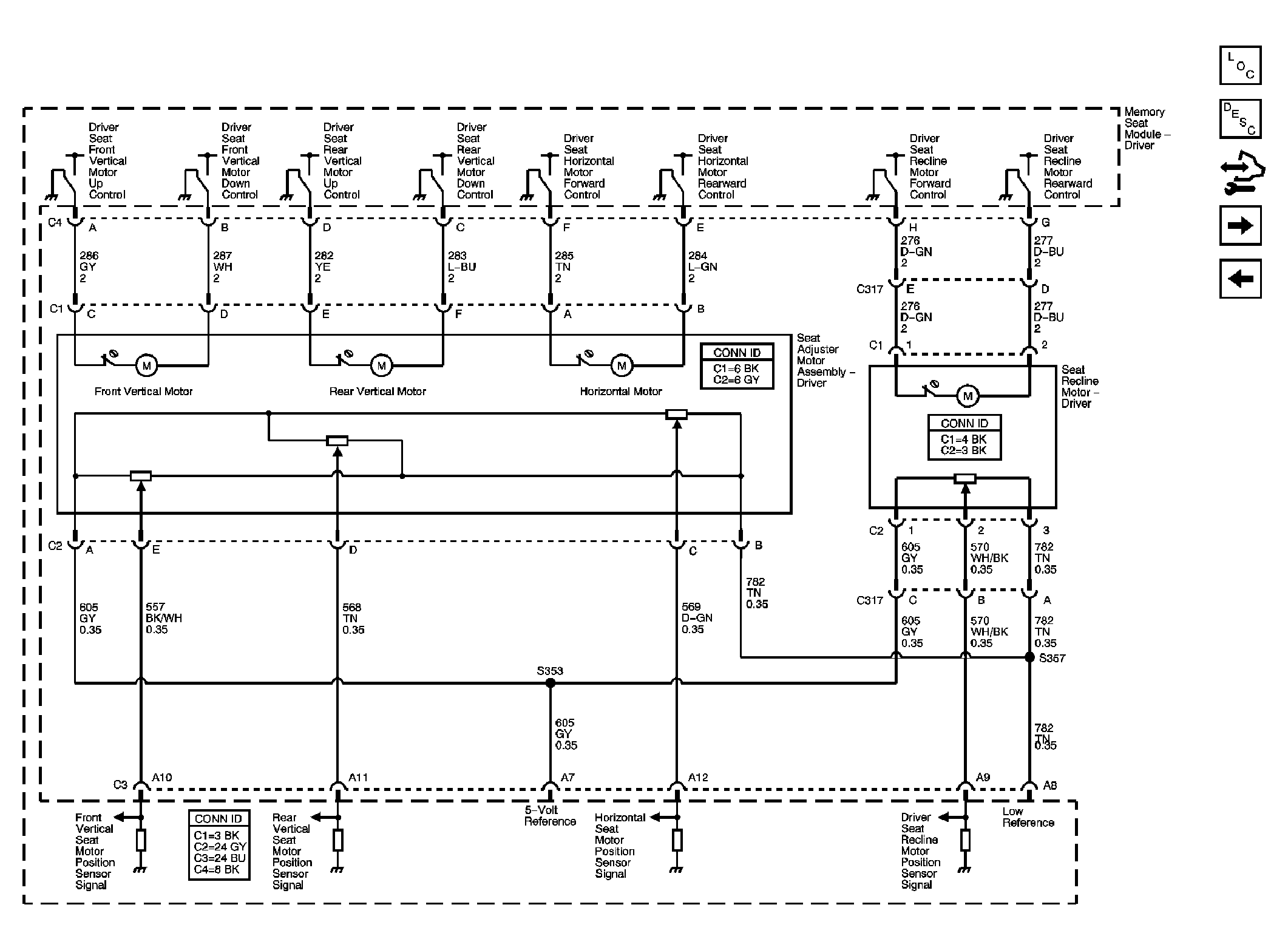

Fig 3: Memory Seat Motors and Sensors Schematic
GM1636962Courtesy of GENERAL MOTORS CORP.

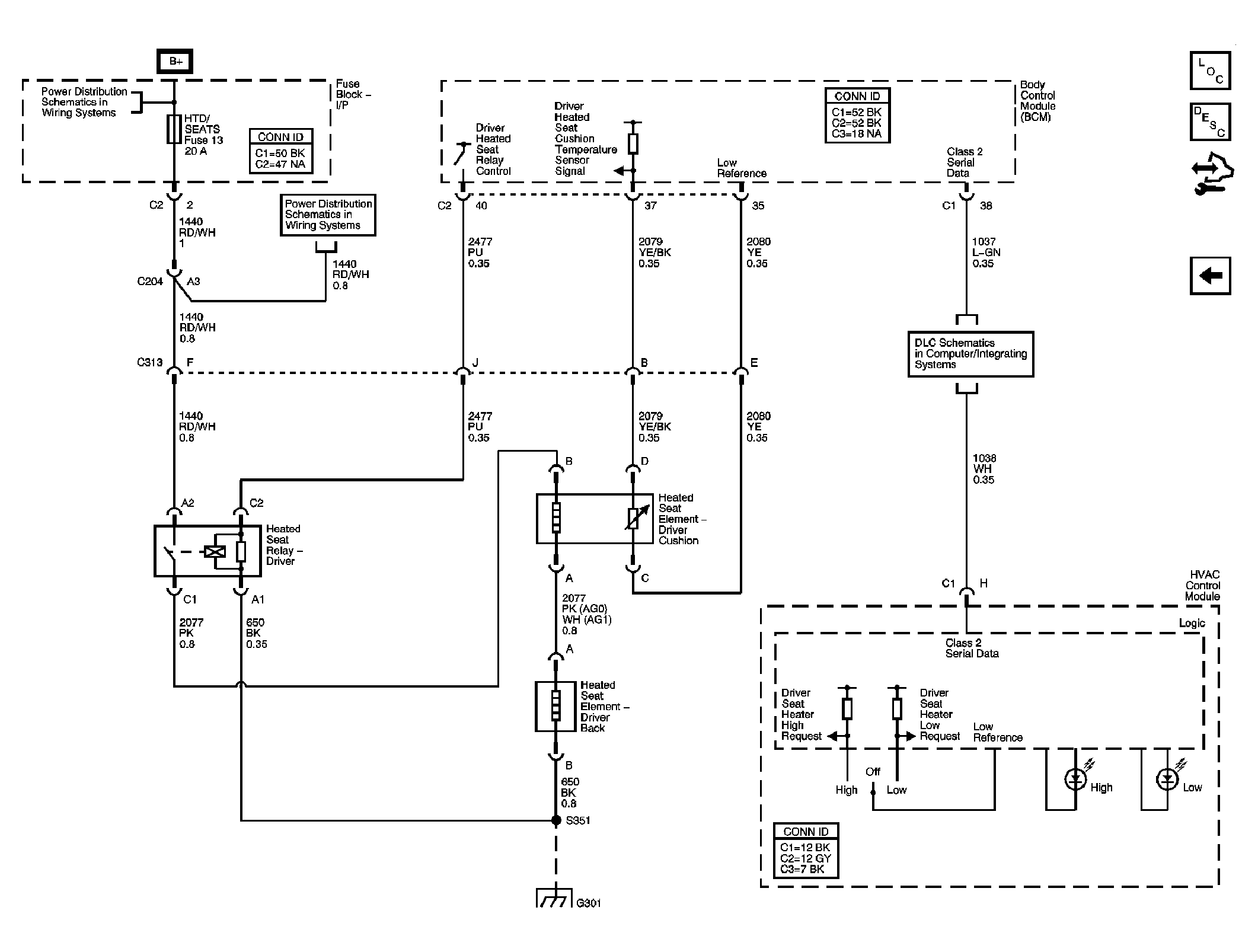

Fig 4: Heated Seat Schematic
GM1636963Courtesy of GENERAL MOTORS CORP.
