Windshield Pillar Garnish Molding Replacement

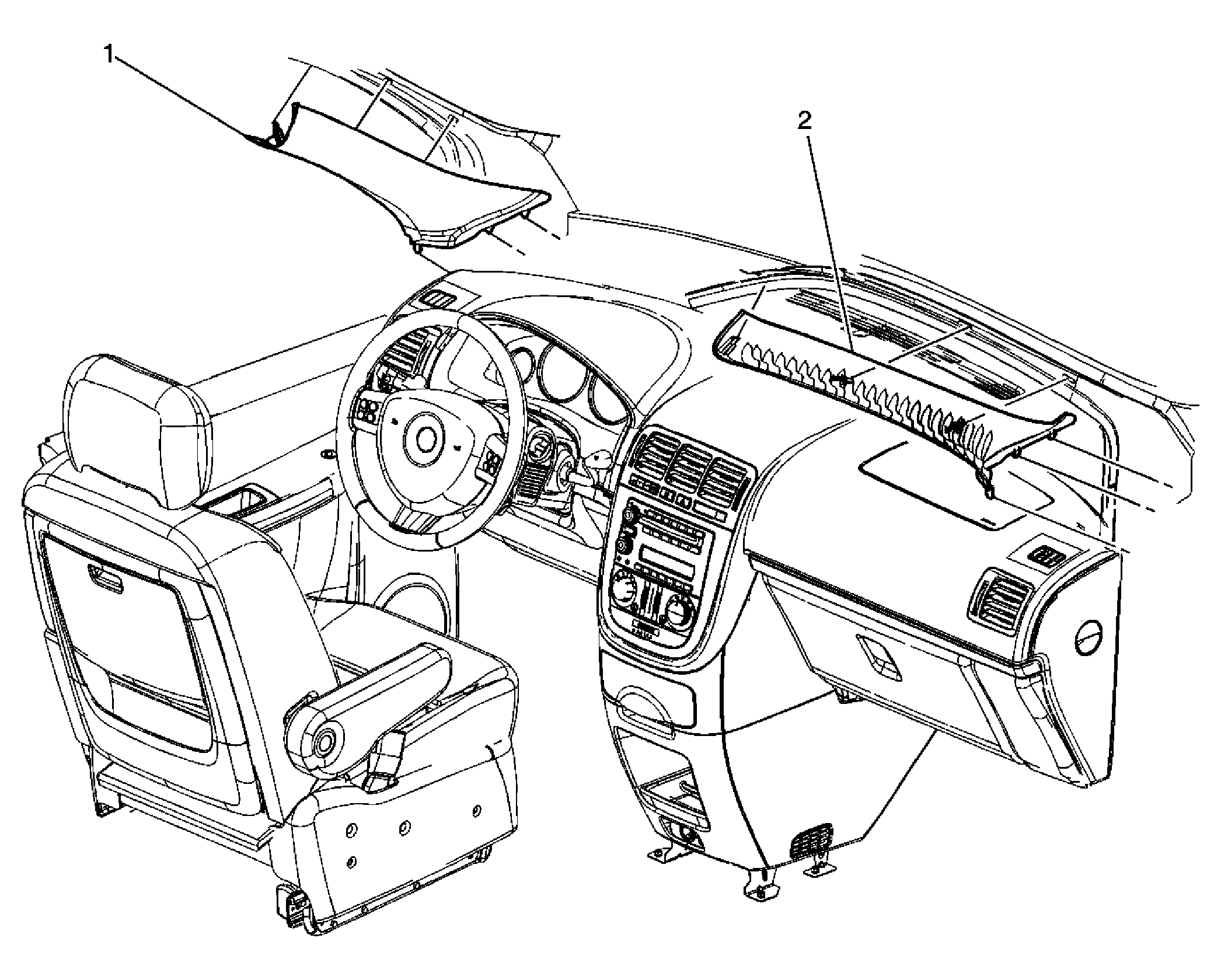

Fig 1: Identifying Windshield Pillar Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Windshield Pillar Garnish Molding Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Molding, Windshield Pillar Garnish - Left Tip:  Grasp the pillar molding and pull outward in order to disengage the retaining clips.
2	Molding, Windshield Pillar Garnish - Right Tip:  Grasp the pillar molding and pull outward in order to disengage the retaining clips.
