Radio/Audio System Schematics

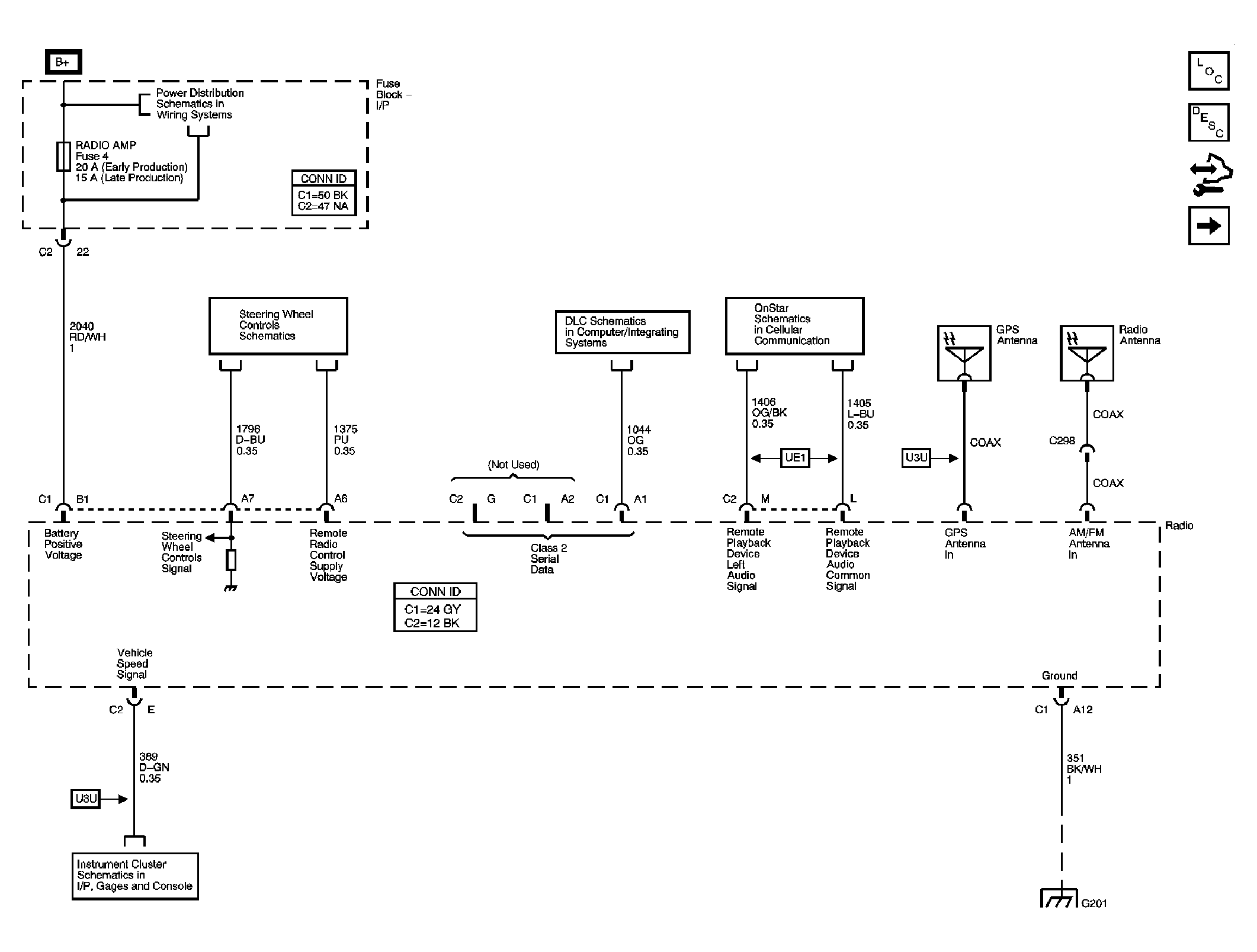

Fig 1: Antennas, Ground, Power, and Subsystem References
GM1636974Courtesy of GENERAL MOTORS CORP.

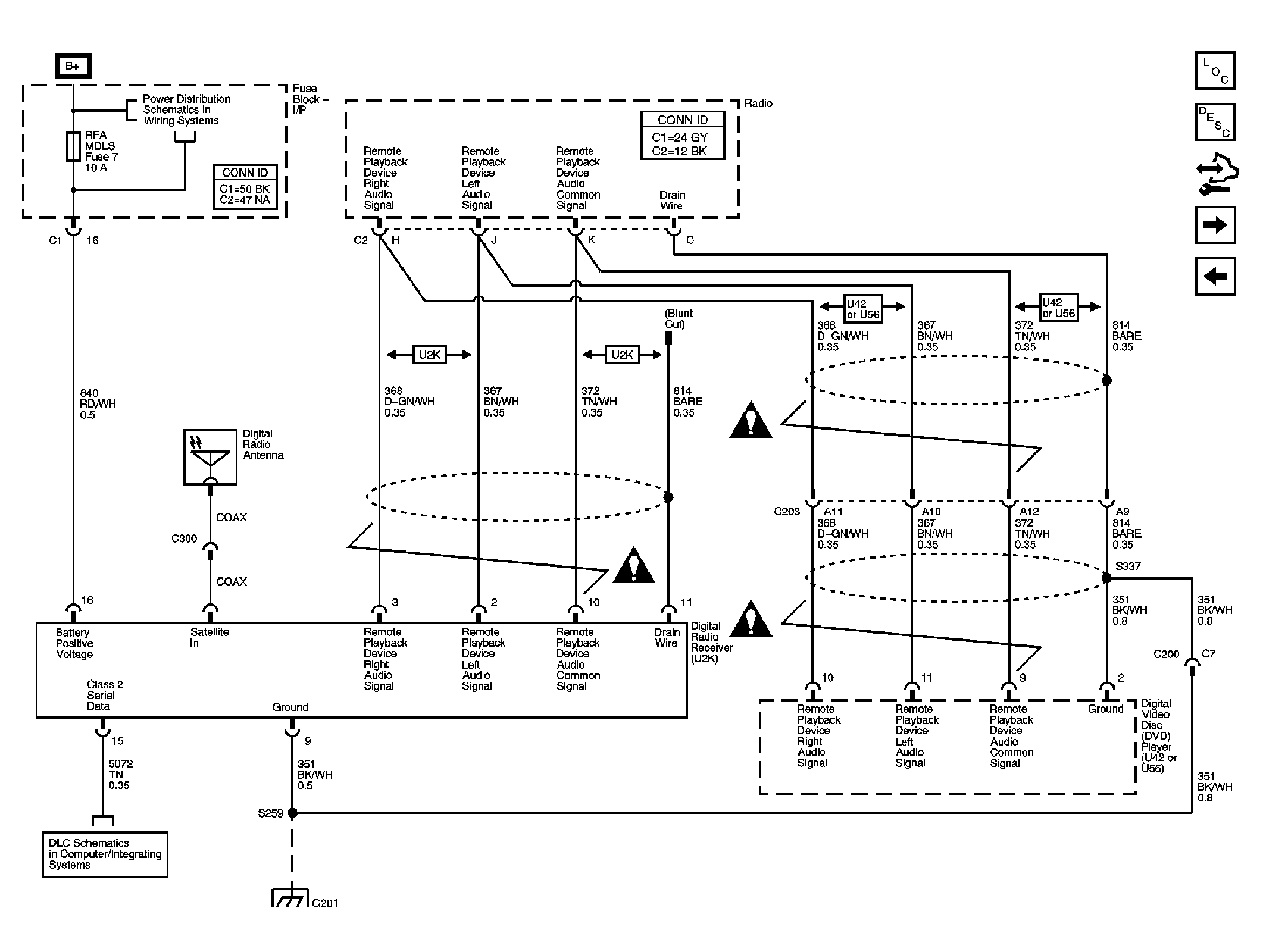

Fig 2: DVD and Satellite Audio Sources
GM1636975Courtesy of GENERAL MOTORS CORP.

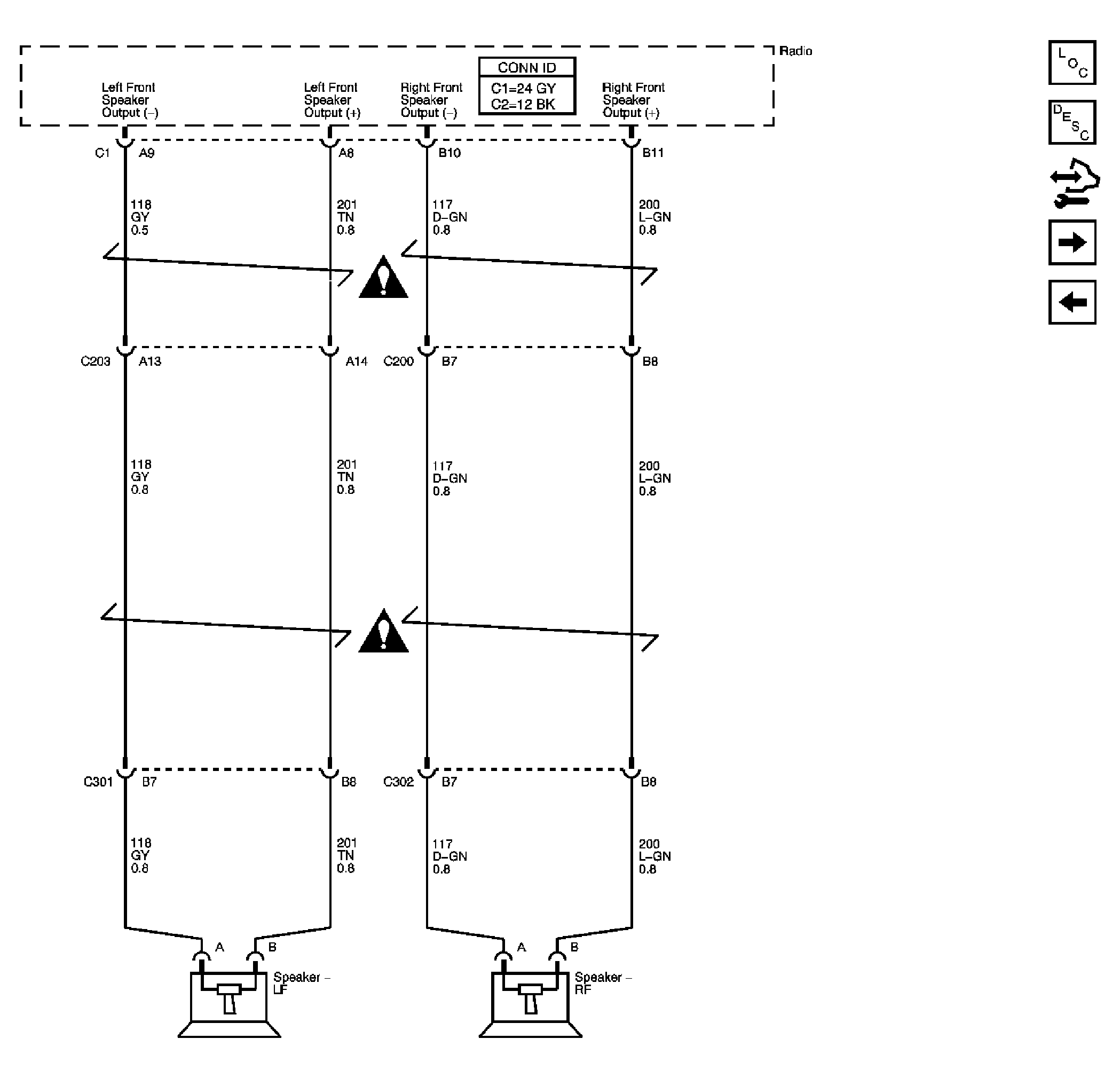

Fig 3: Front Speakers
GM1636976Courtesy of GENERAL MOTORS CORP.

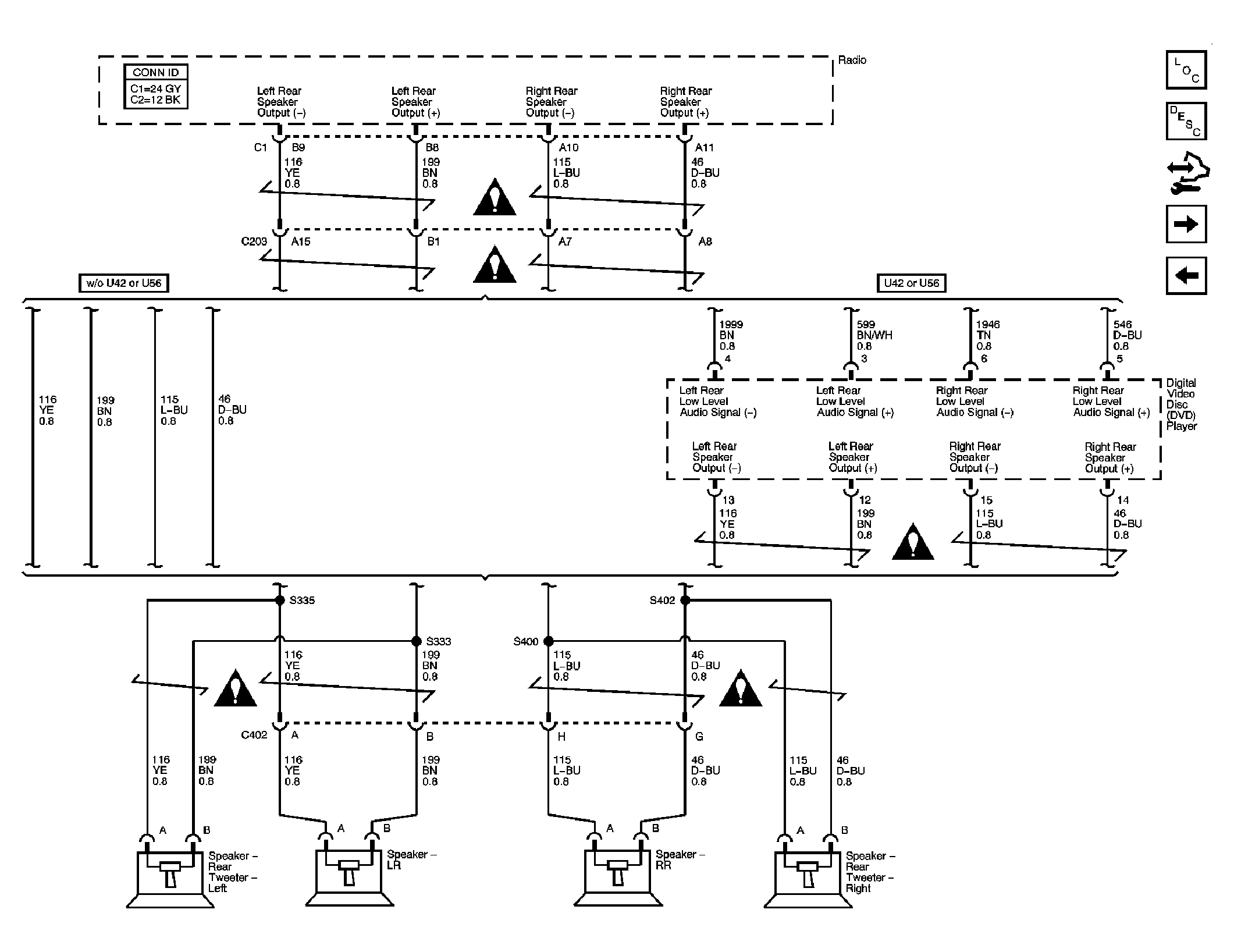

Fig 4: Rear Speakers
GM1636977Courtesy of GENERAL MOTORS CORP.

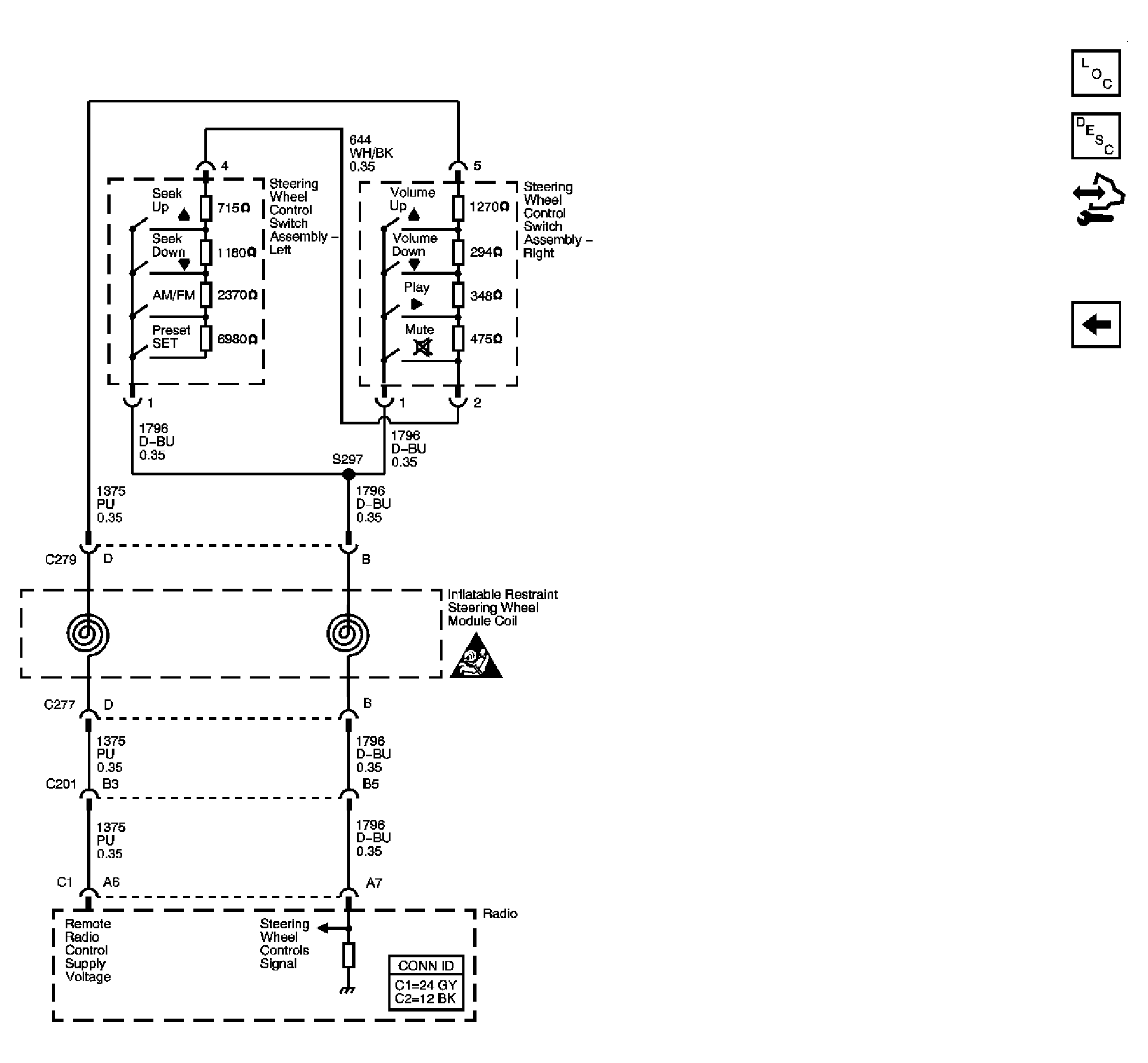

Fig 5: Steering Wheel Controls
GM1636978Courtesy of GENERAL MOTORS CORP.
