Compartment, Door, Latch, Panel, Mat Replacement - Front Floor Console (Base)

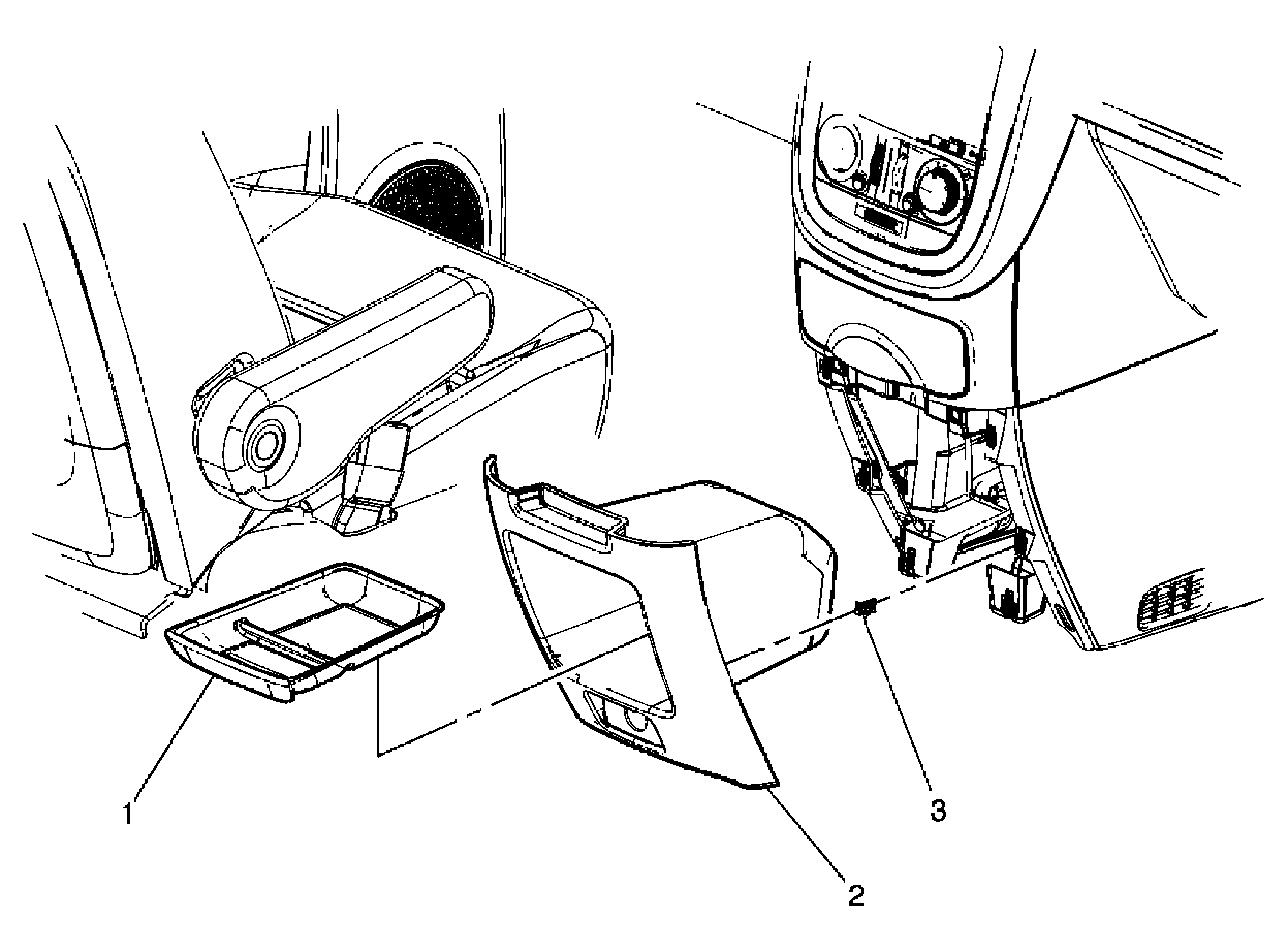

Fig 1: Identifying Compartment, Door, Latch, Panel, Mat - Front Floor Console (Base)

Courtesy of GENERAL MOTORS CORP.

Compartment, Door, Latch, Panel, Mat Replacement - Front Floor Console (Base)

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Front Floor Console Mat Replacement
1	Mat, Front Floor Console
Front Floor Console Trim Panel Replacement
2	Panel, Front Floor Console Trim Tip:  Disconnect the electrical connector.
3	Clip, Front Floor Console (Qty: 6)
