Accessory Trim Plate, Driver Information Display Switch Replacement - Instrument Panel

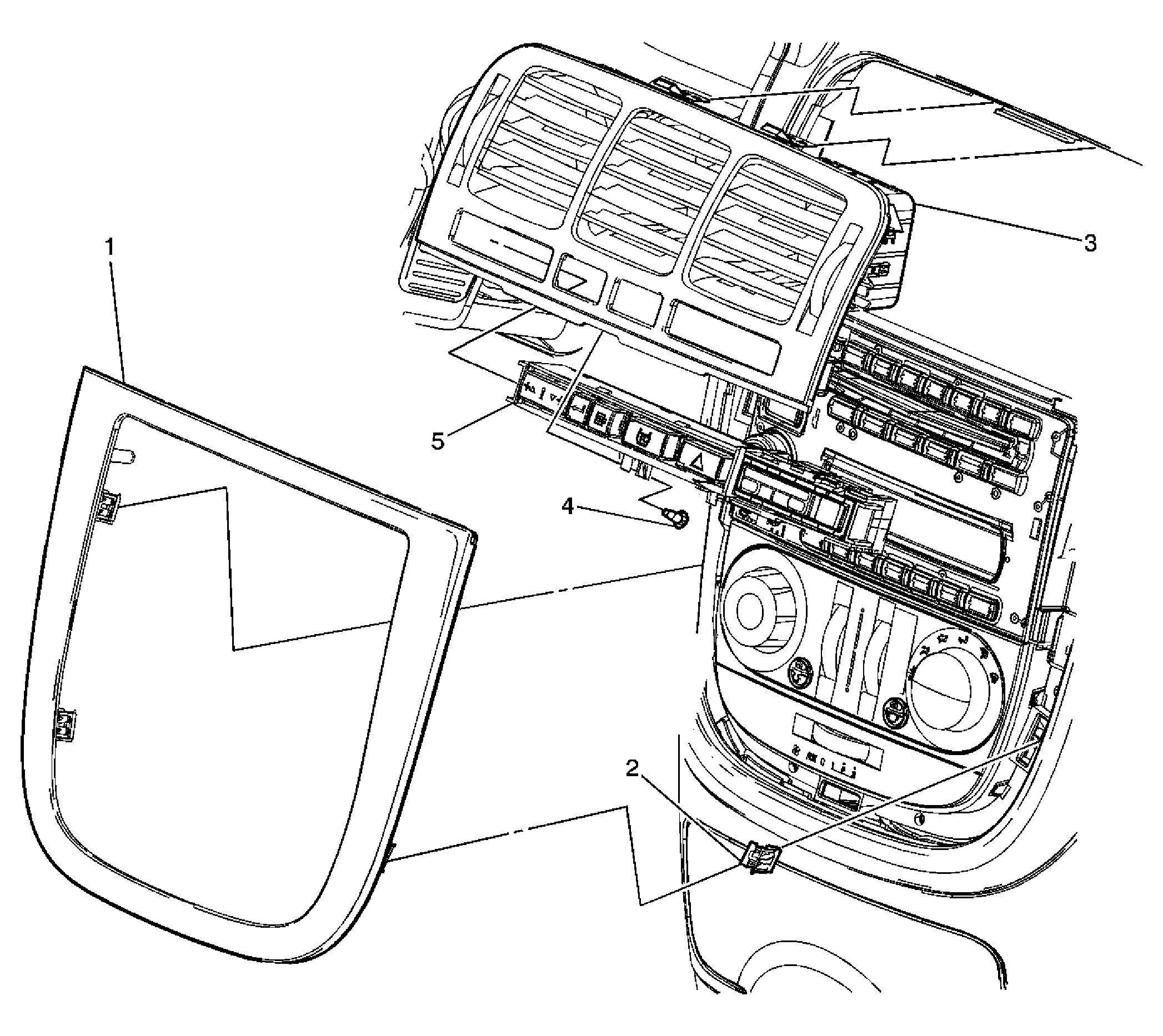

Fig 1: Identifying Instrument Panel Accessory Trim Plate, Driver Information Display Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Instrument Panel (I/P) Accessory Trim Panel Replacement
1	Panel, I/P Accessory Trim
2	Clip, I/P Accessory Trim Panel (Qty: 5)
Driver Information Center Display Switch Replacement
1	Panel, I/P Accessory Trim
3	Outlet Assembly, I/P A/C Center Tip: Pull rearward of the instrument panel (I/P) to remove. Disconnect electrical connectors from the switches.
4	Screw, Driver Information Center Display Switch Tighten: 2 N.m (18 lb in)
5	Switch Assembly, Driver Information Center Display
