Exterior Lights Schematics

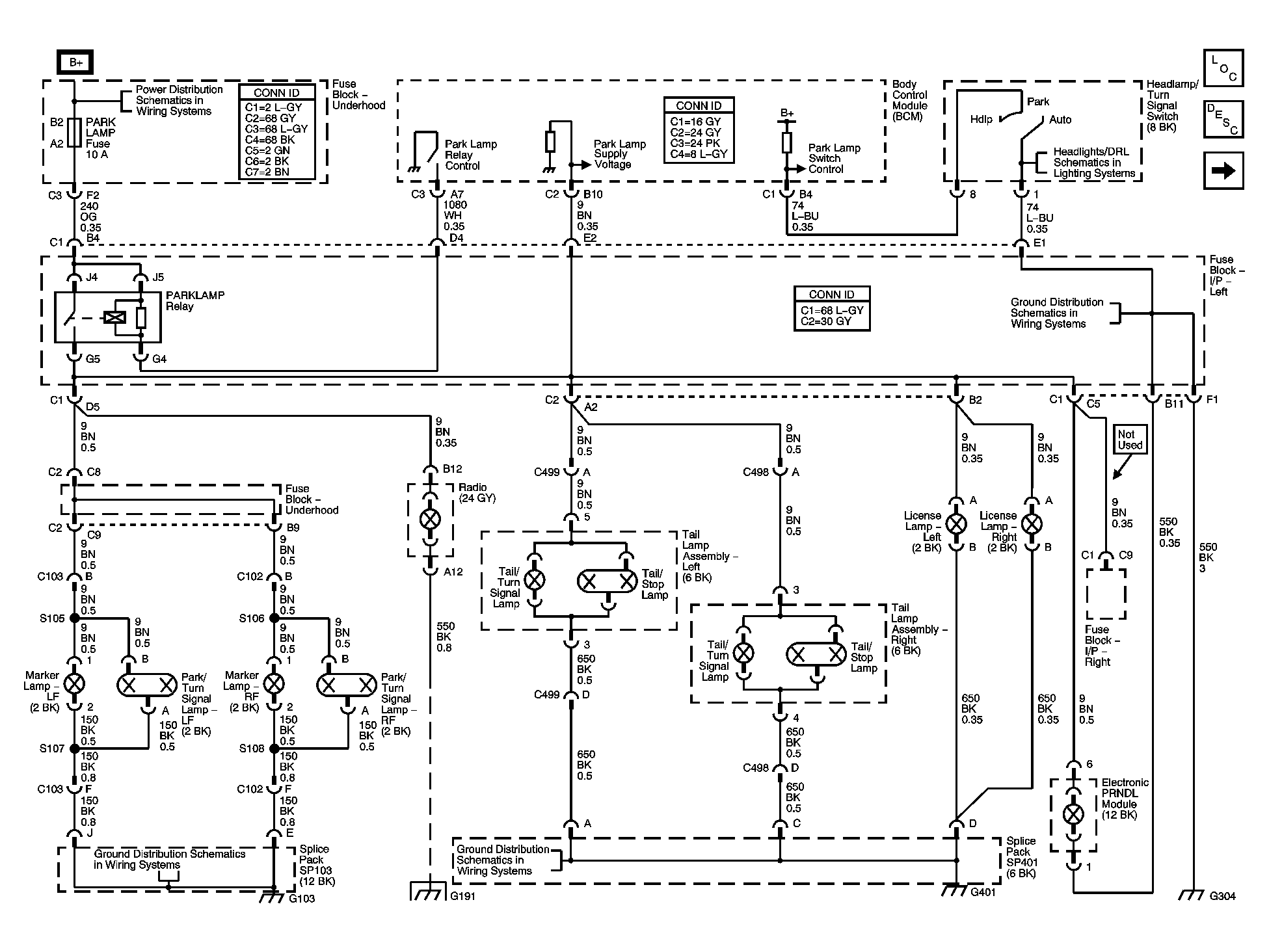

Fig 1: Parking Lamps Schematic
GM1458197Courtesy of GENERAL MOTORS CORP.

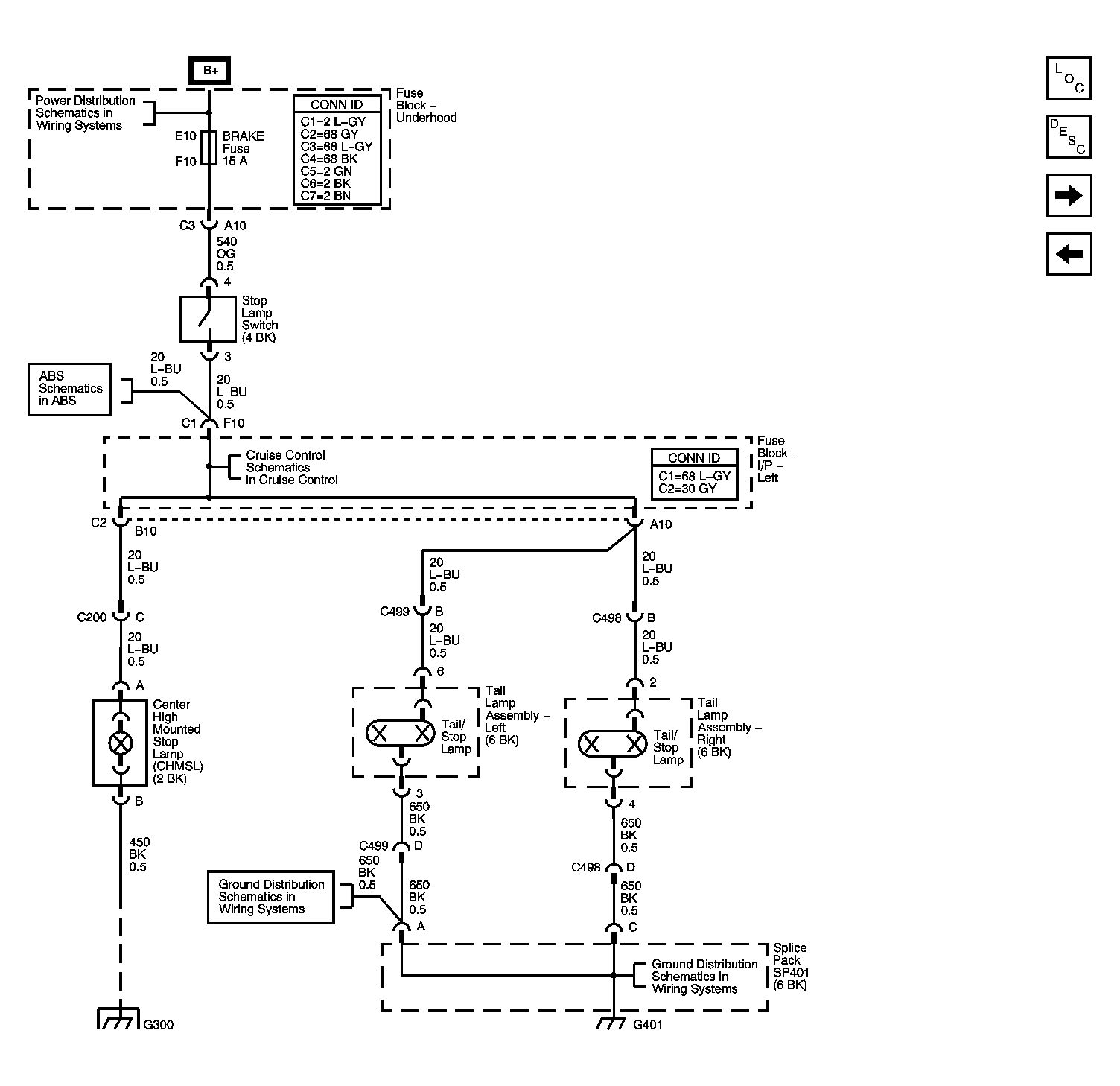

Fig 2: Stop Lamps Schematic
GM1485534Courtesy of GENERAL MOTORS CORP.

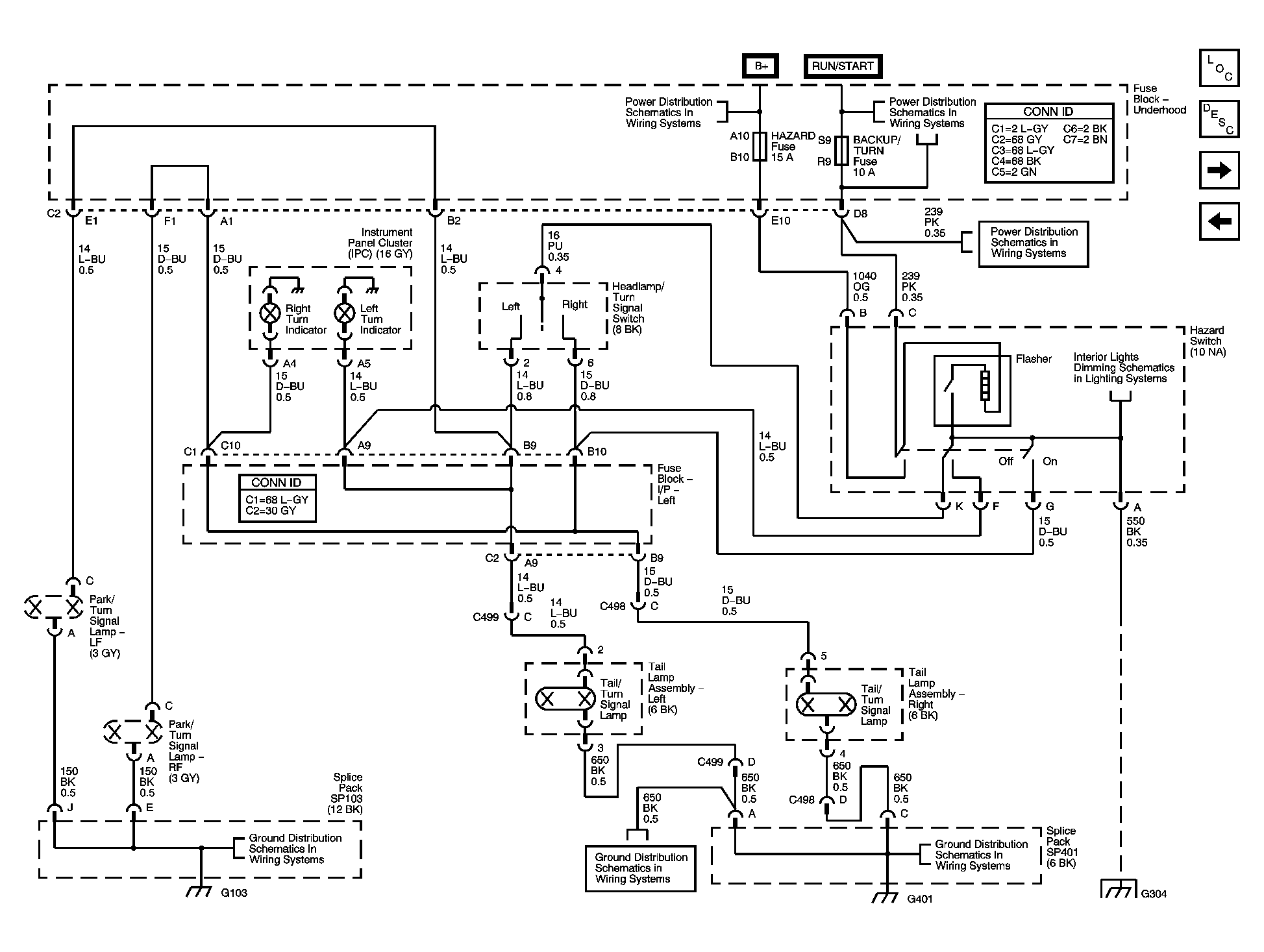

Fig 3: Turn/Hazard Lamps Schematic
GM1485539Courtesy of GENERAL MOTORS CORP.

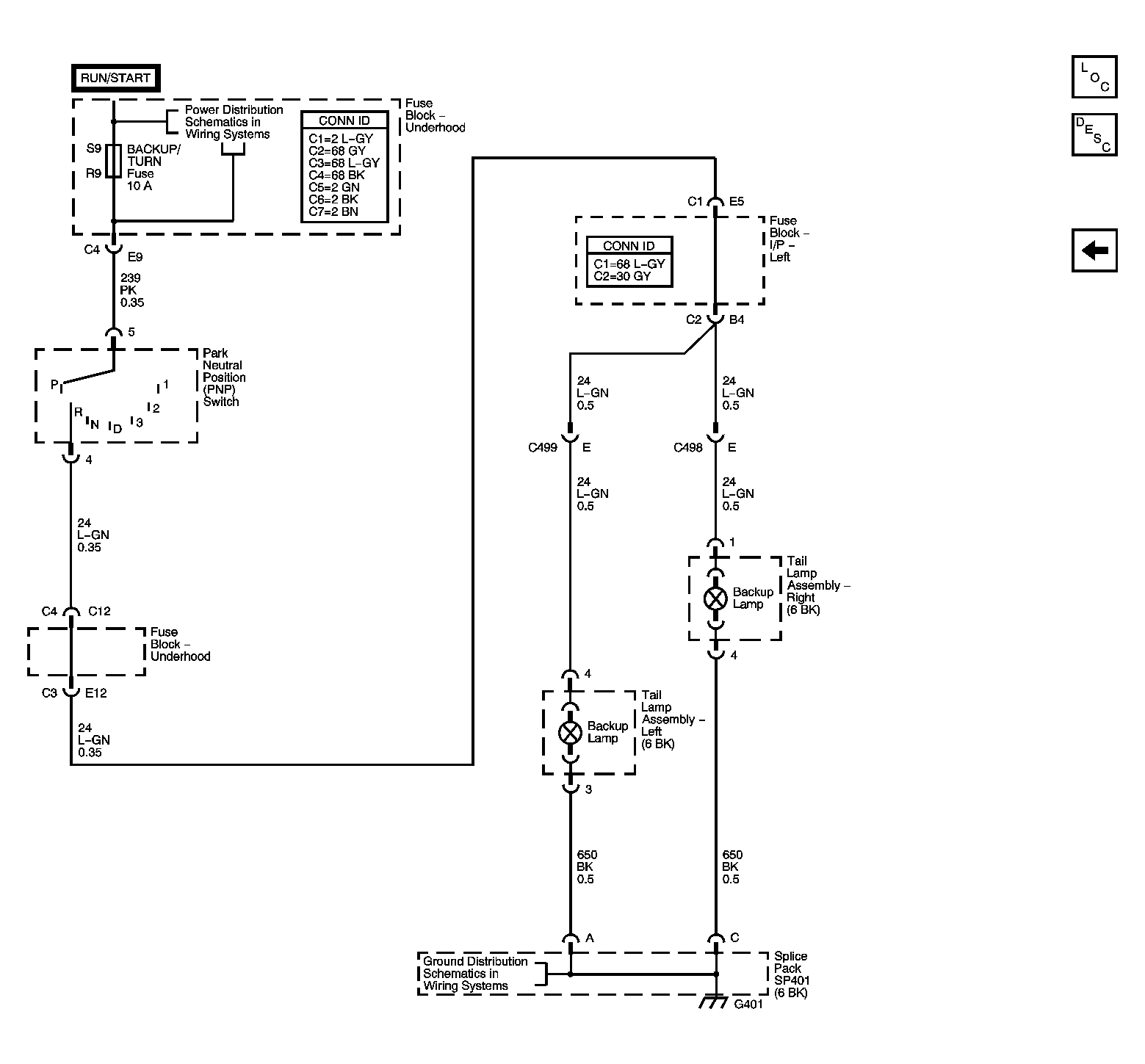

Fig 4: Backup Lamps Schematic
GM1485546Courtesy of GENERAL MOTORS CORP.
