Radio/Audio System Schematics

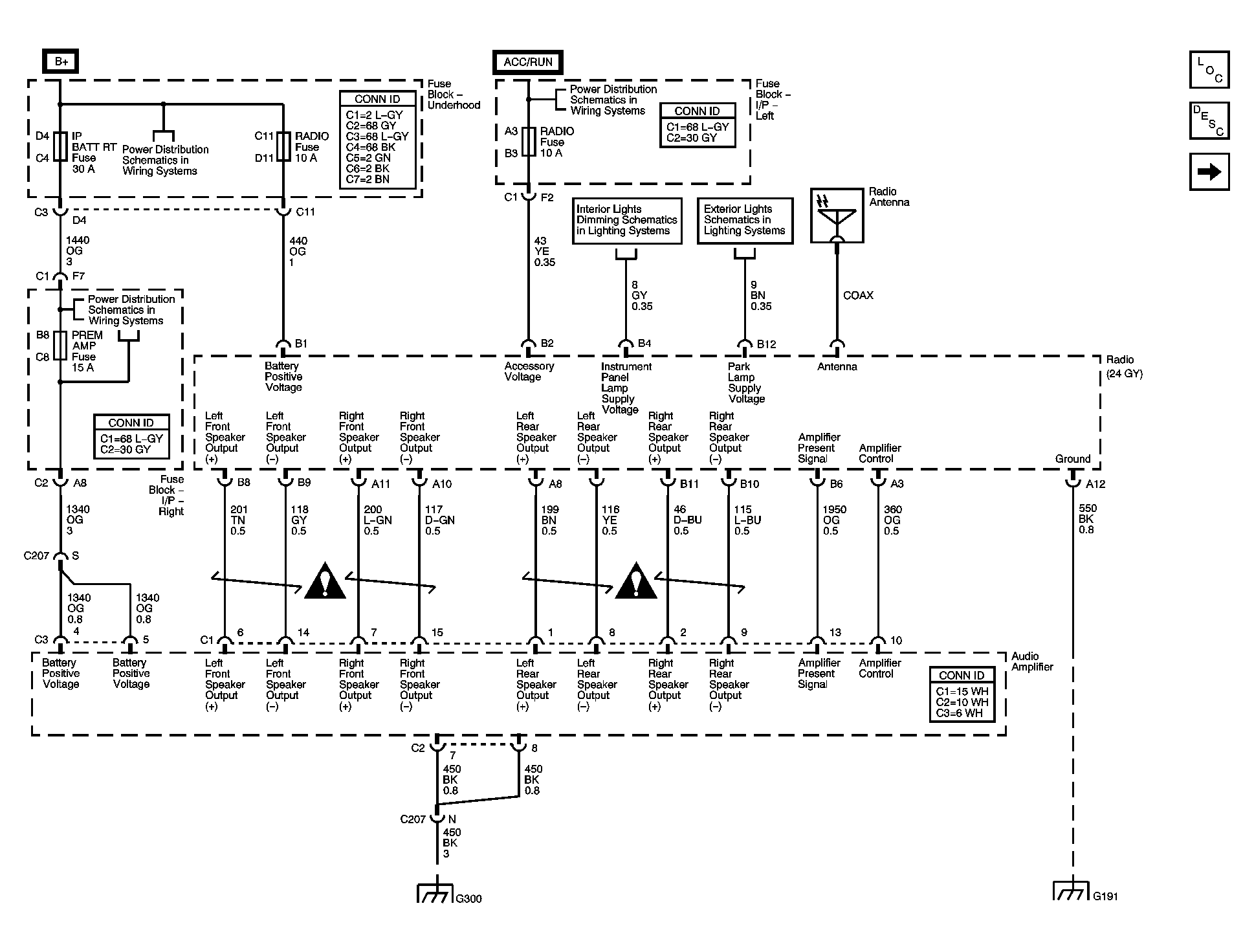

Fig 1: Radio Power, Ground, and Audio Amplifier Schematic

GM1429099

Courtesy of GENERAL MOTORS CORP.

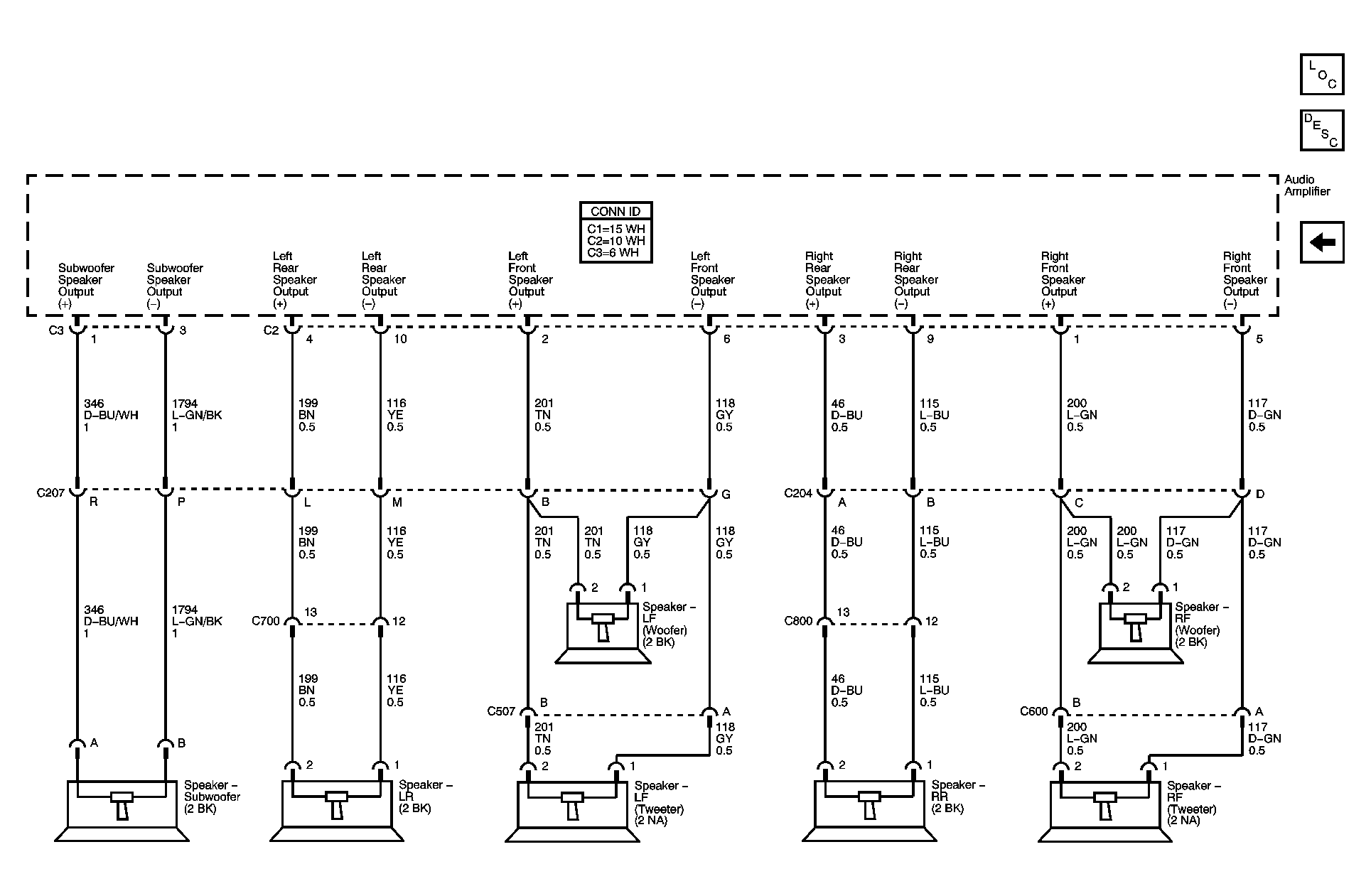

Fig 2: Speakers Schematic

GM1429103

Courtesy of GENERAL MOTORS CORP.
