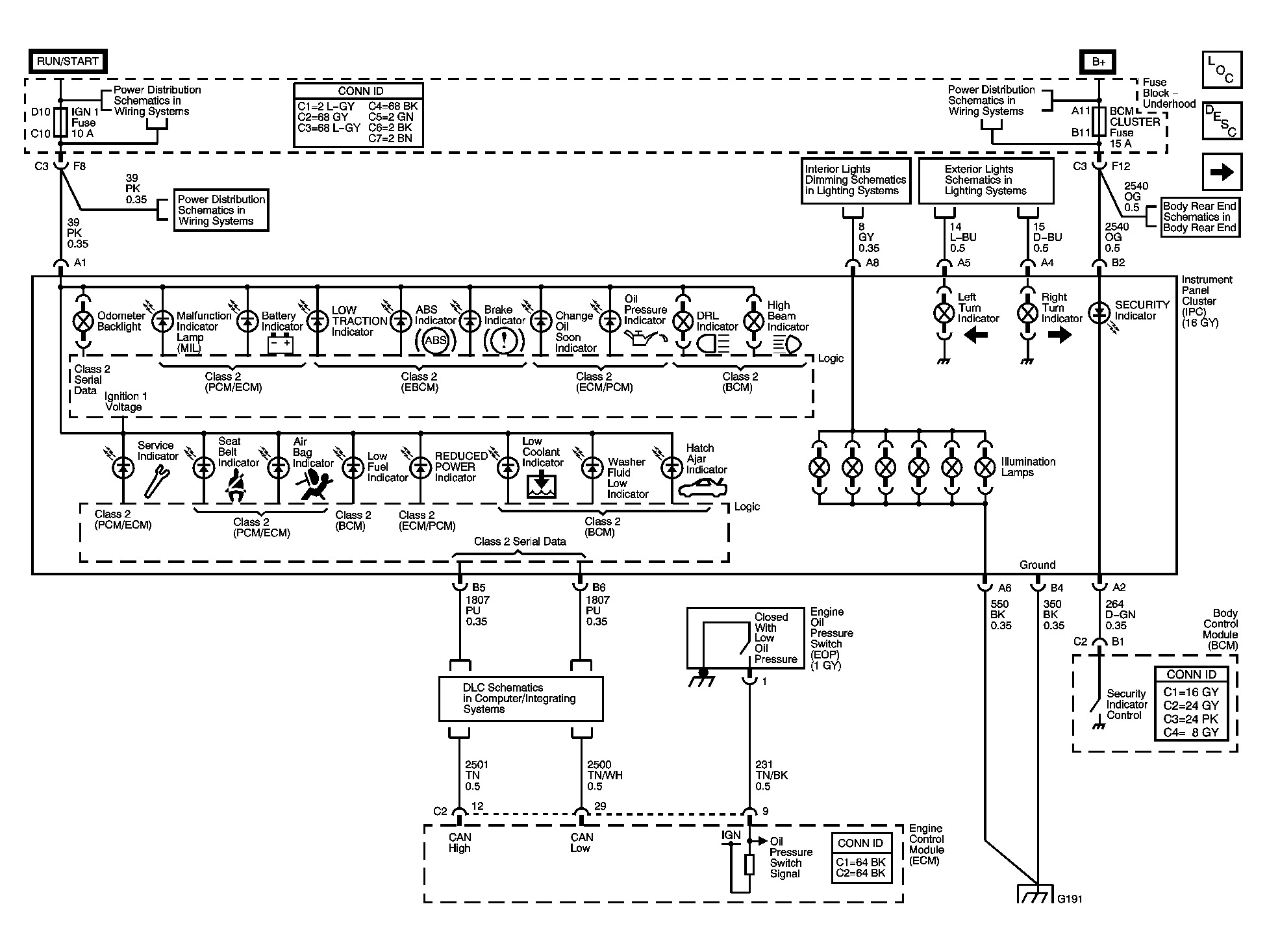

Home >> Saturn >> 2005 >> L300 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Instrument Cluster Schematics
