Instrument Cluster Schematics

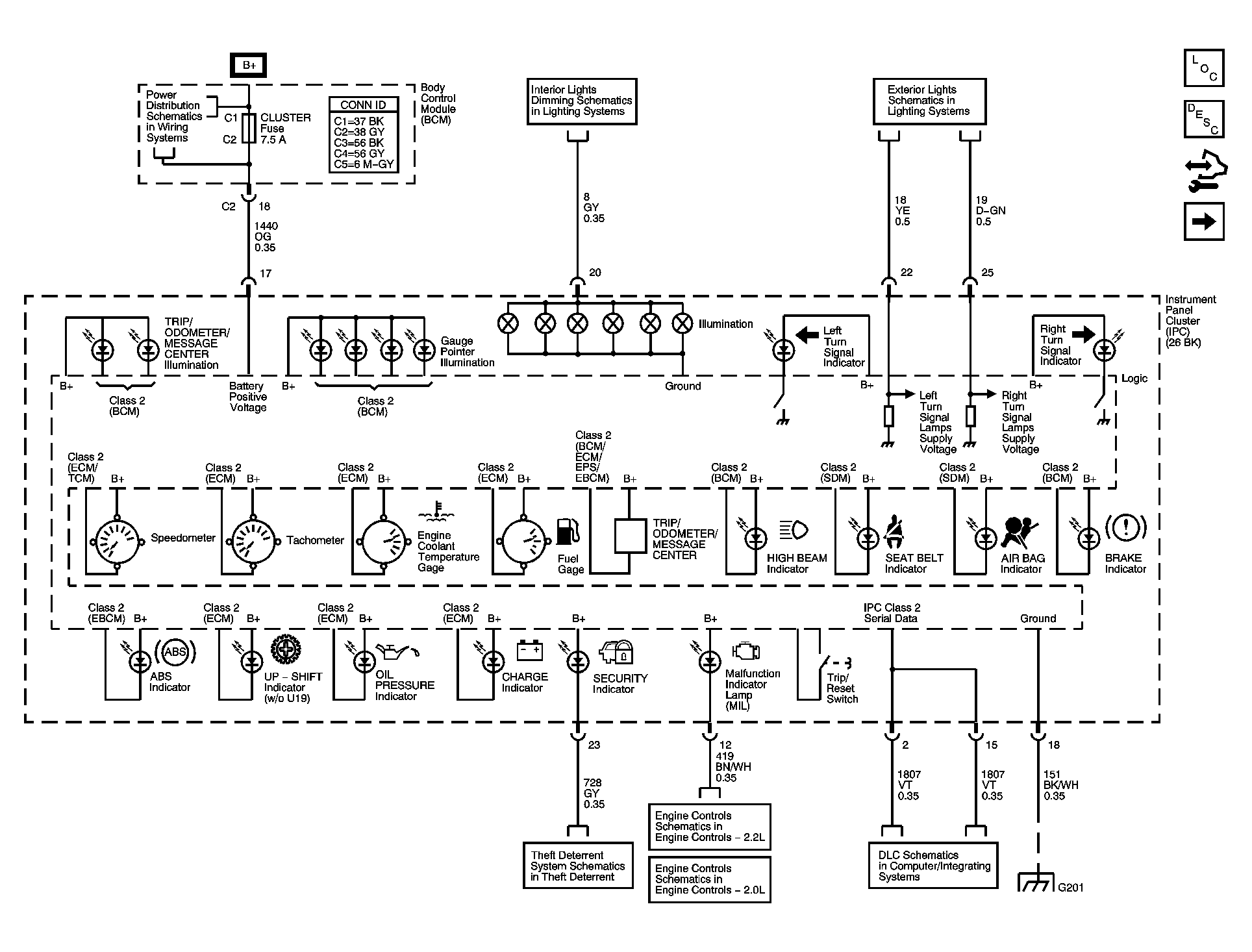

Fig 1: DLC, Gages, Ground, Indicators, and Power Schematic

GM1434124

Courtesy of GENERAL MOTORS CORP.

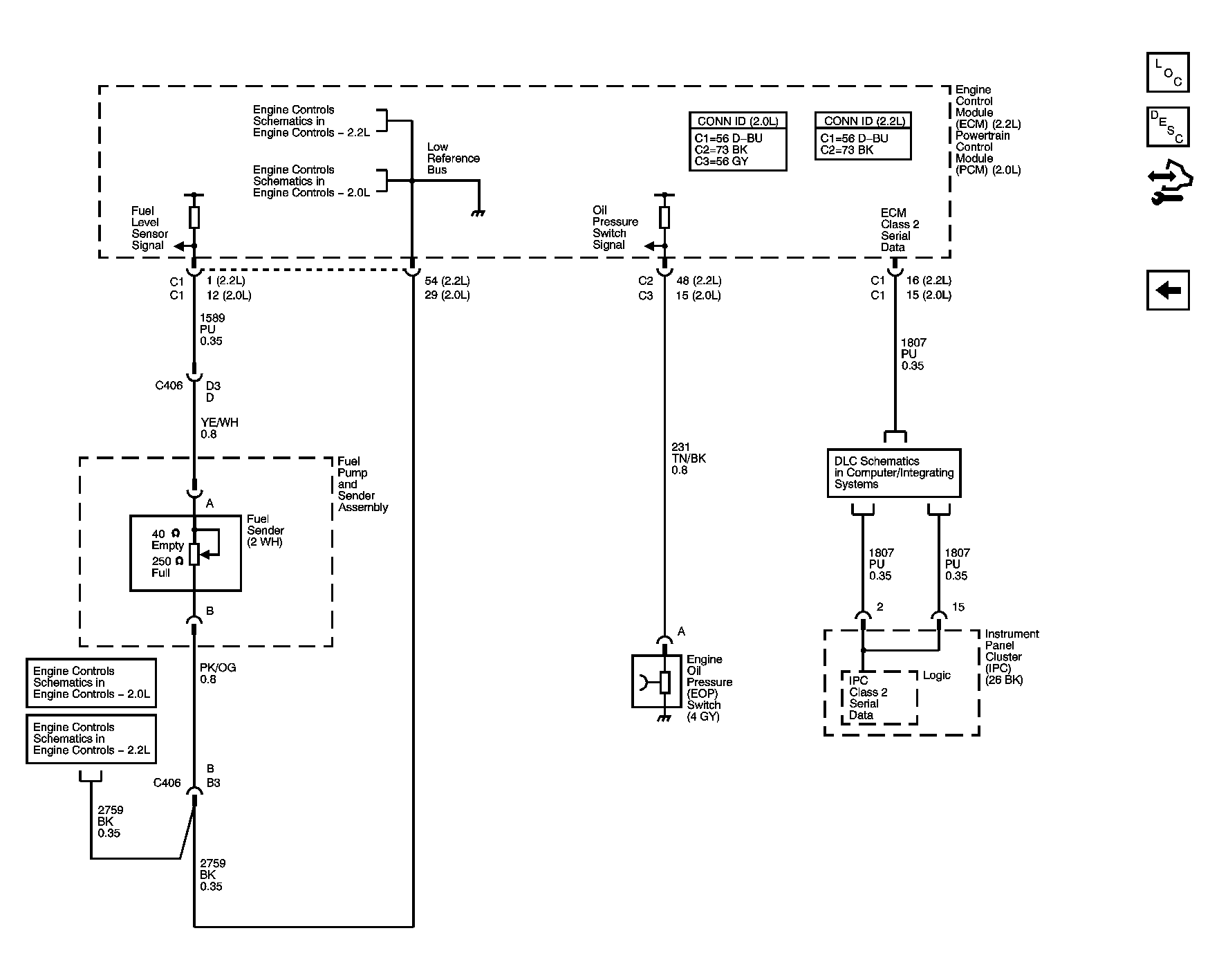

Fig 2: Fuel Level and Oil Pressure Schematic

GM1434126

Courtesy of GENERAL MOTORS CORP.
