Instrument Panel, Gages, and Console Component Views

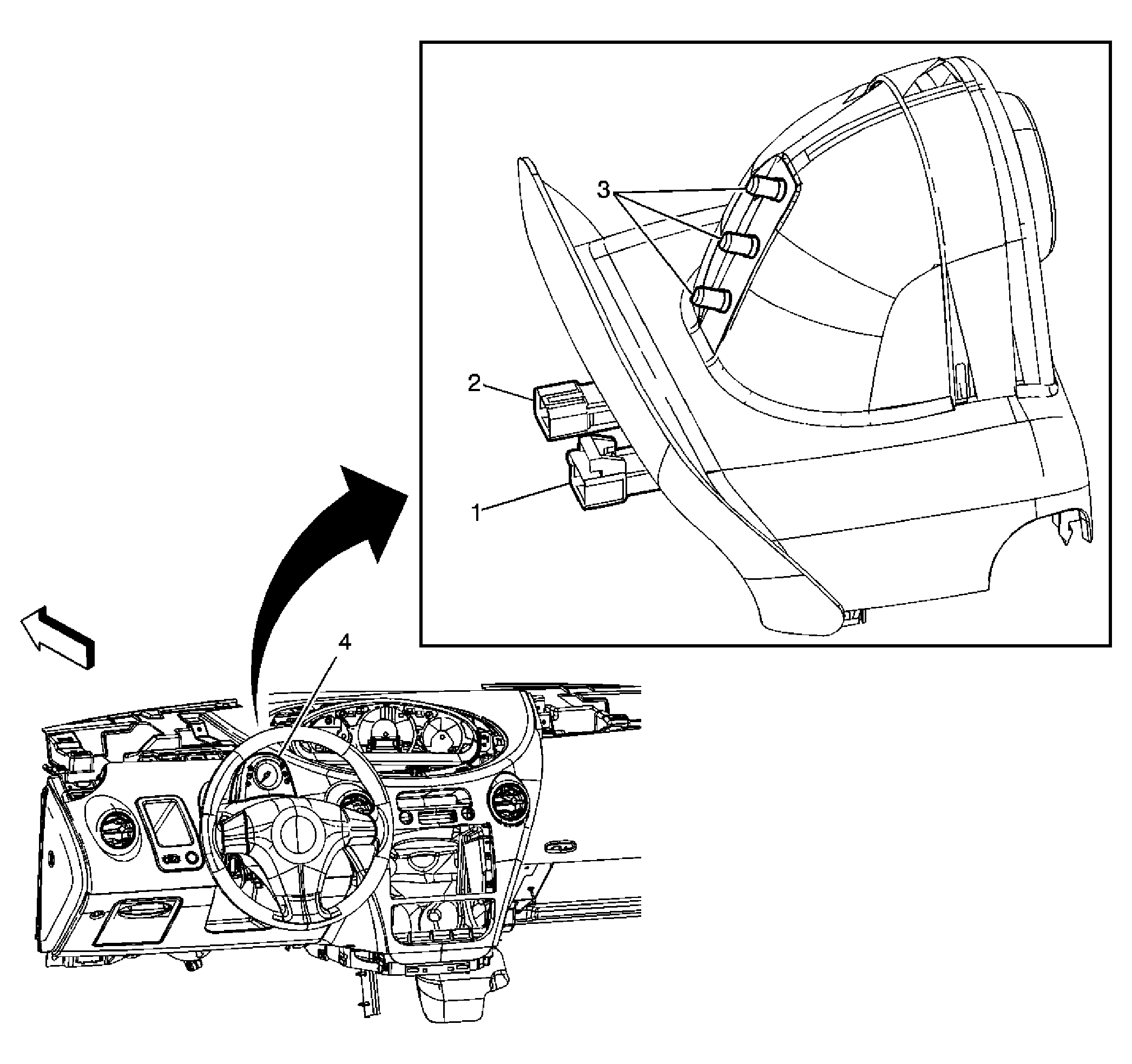

Fig 1: Boost, Gage/Shift Indicator Module (UXE) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Boost Gage
2	Shift Indicator Module
3	Engine RPM Indicator Adjusters
4	Boost Gage/Shift Indicator Module

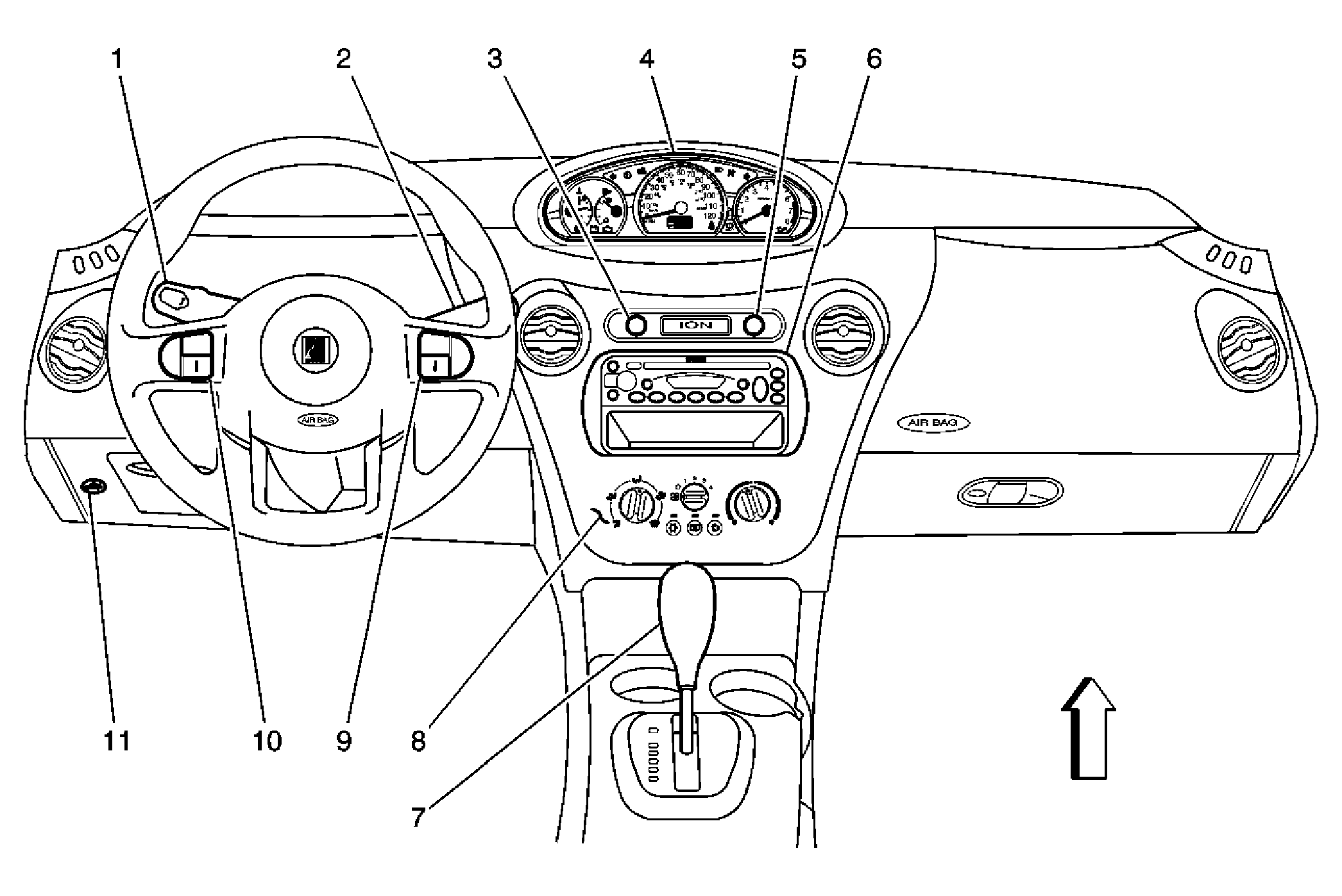

Fig 2: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch

Fig 3: Fuel Pump & Sender Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor
2	Fuel Pump and Sender Assembly
3	Fuel Pump Strainer
4	Fuel Level Sensor

Fig 4: Front Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor
2	Engine Oil Pressure (EOP) Switch
