Headlights/Daytime Running Lights (DRL) Schematics

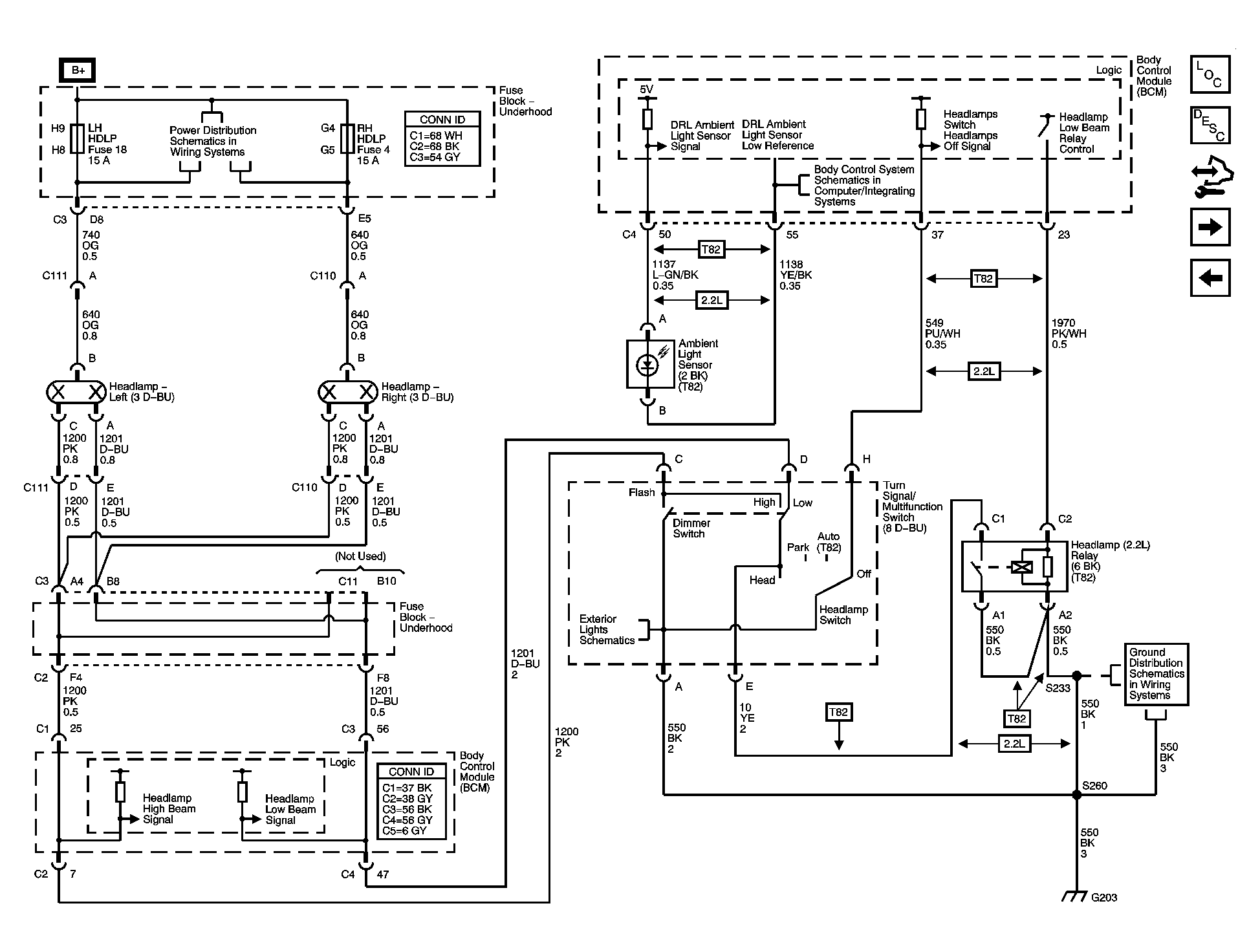

Fig 1: Headlamps Schematics - Coupe

Courtesy of GENERAL MOTORS CORP.

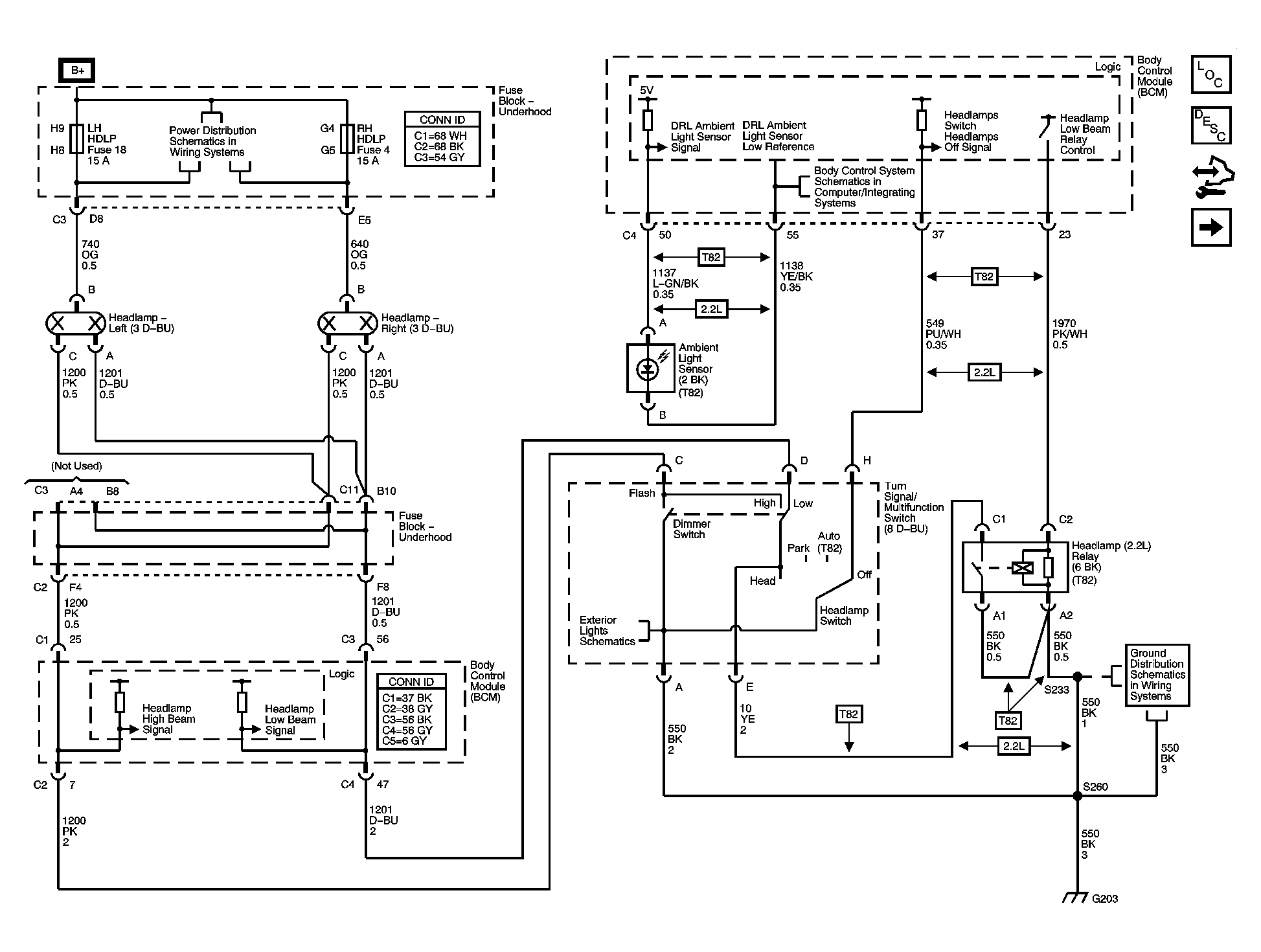

Fig 2: Headlamps Schematics - Sedan

Courtesy of GENERAL MOTORS CORP.

Fig 3: Daytime Running Lamps Schematics

Courtesy of GENERAL MOTORS CORP.
