Exterior Lights Schematics

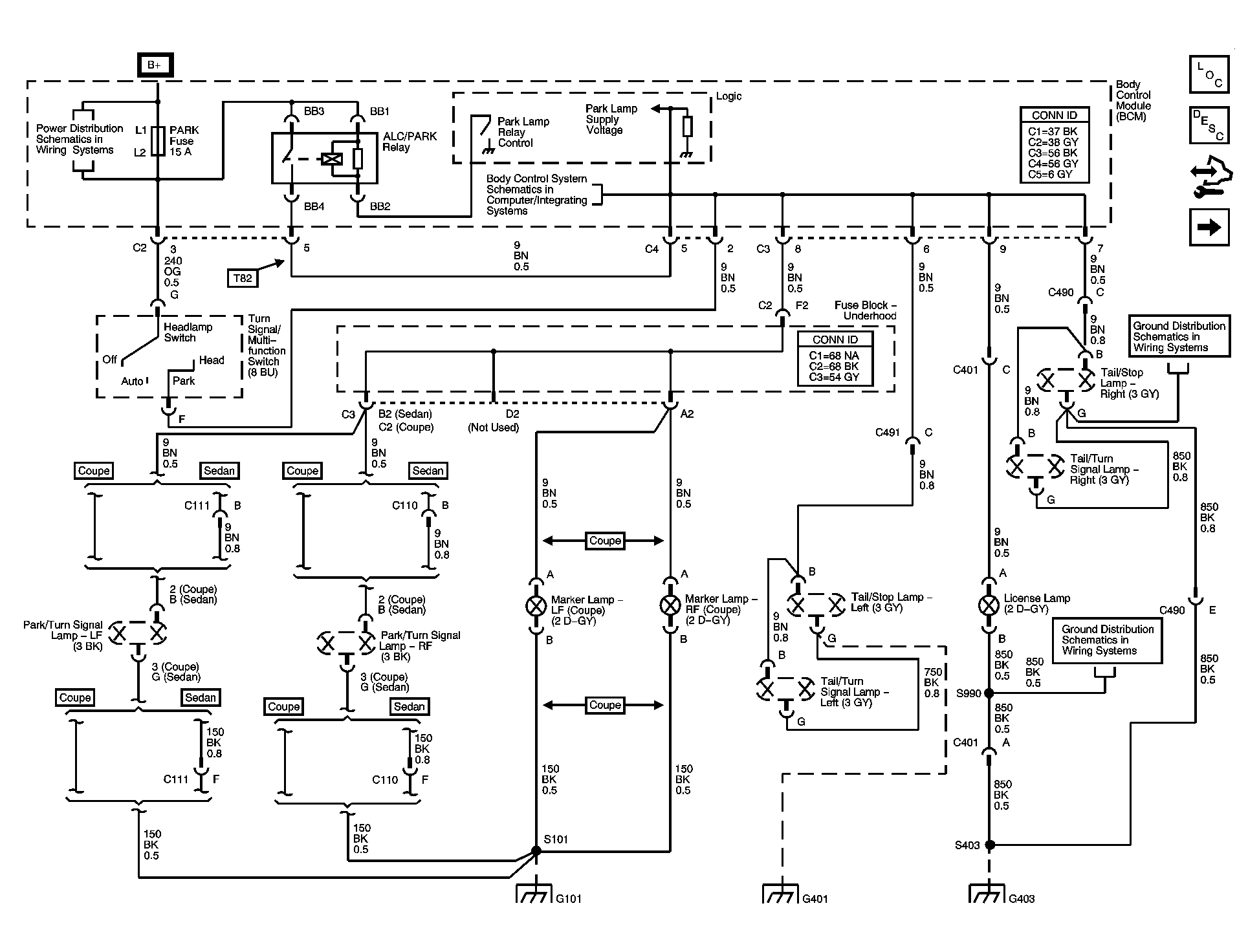

Fig 1: Parking Lamps Schematics
GM1434438Courtesy of GENERAL MOTORS CORP.

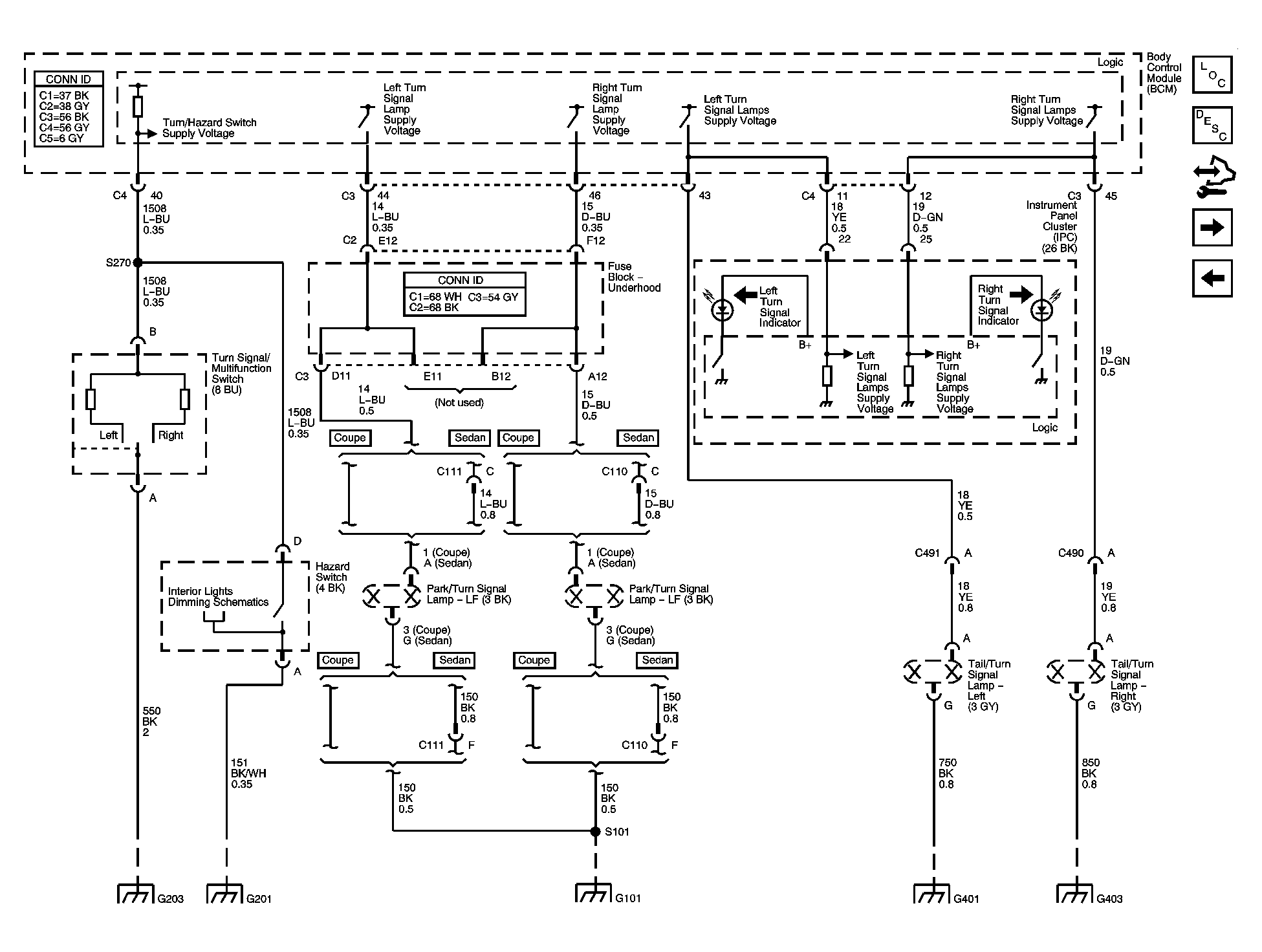

Fig 2: Turn/Hazard Lamps Schematics
GM1434441Courtesy of GENERAL MOTORS CORP.

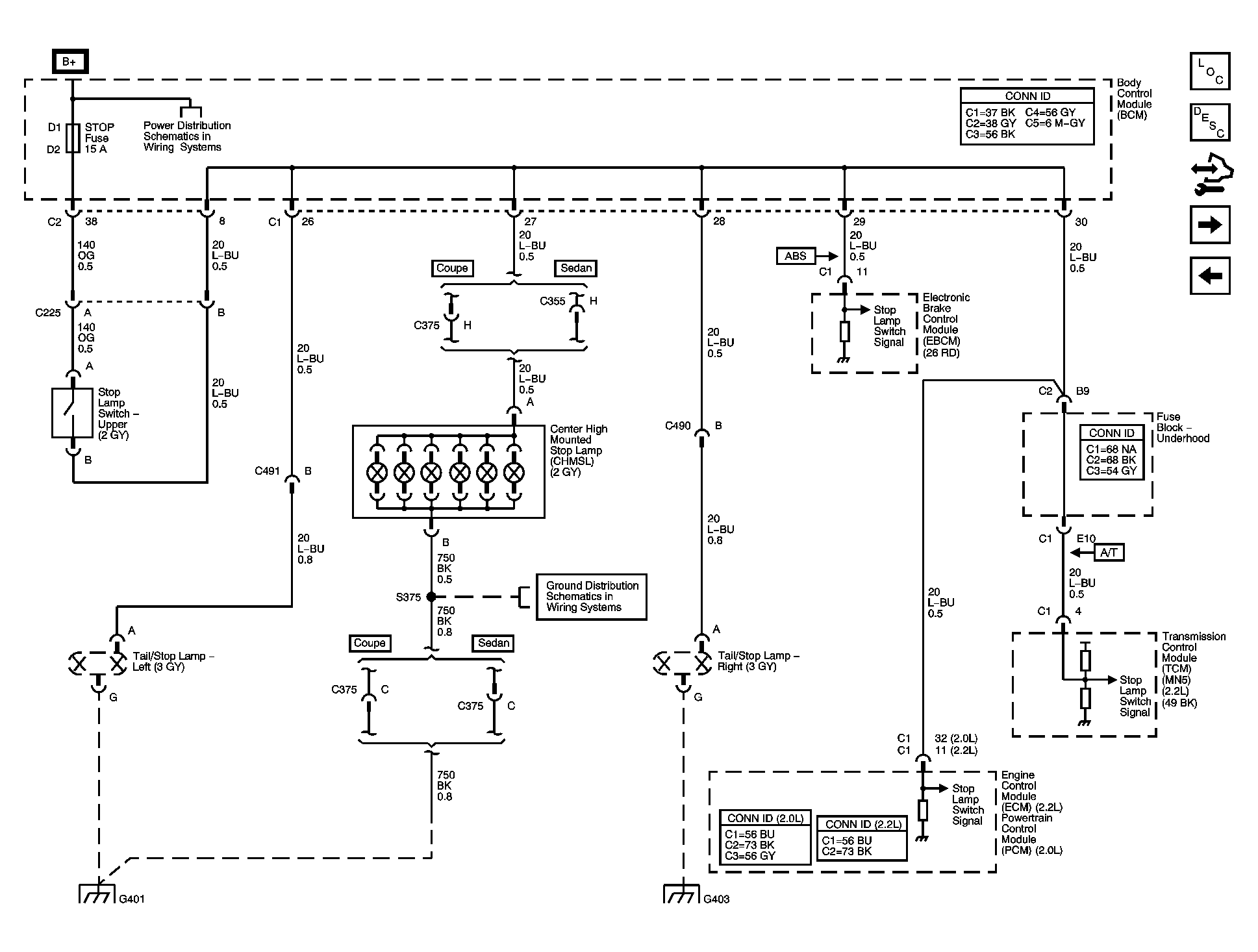

Fig 3: Stop Lamps Schematics
GM1434443Courtesy of GENERAL MOTORS CORP.

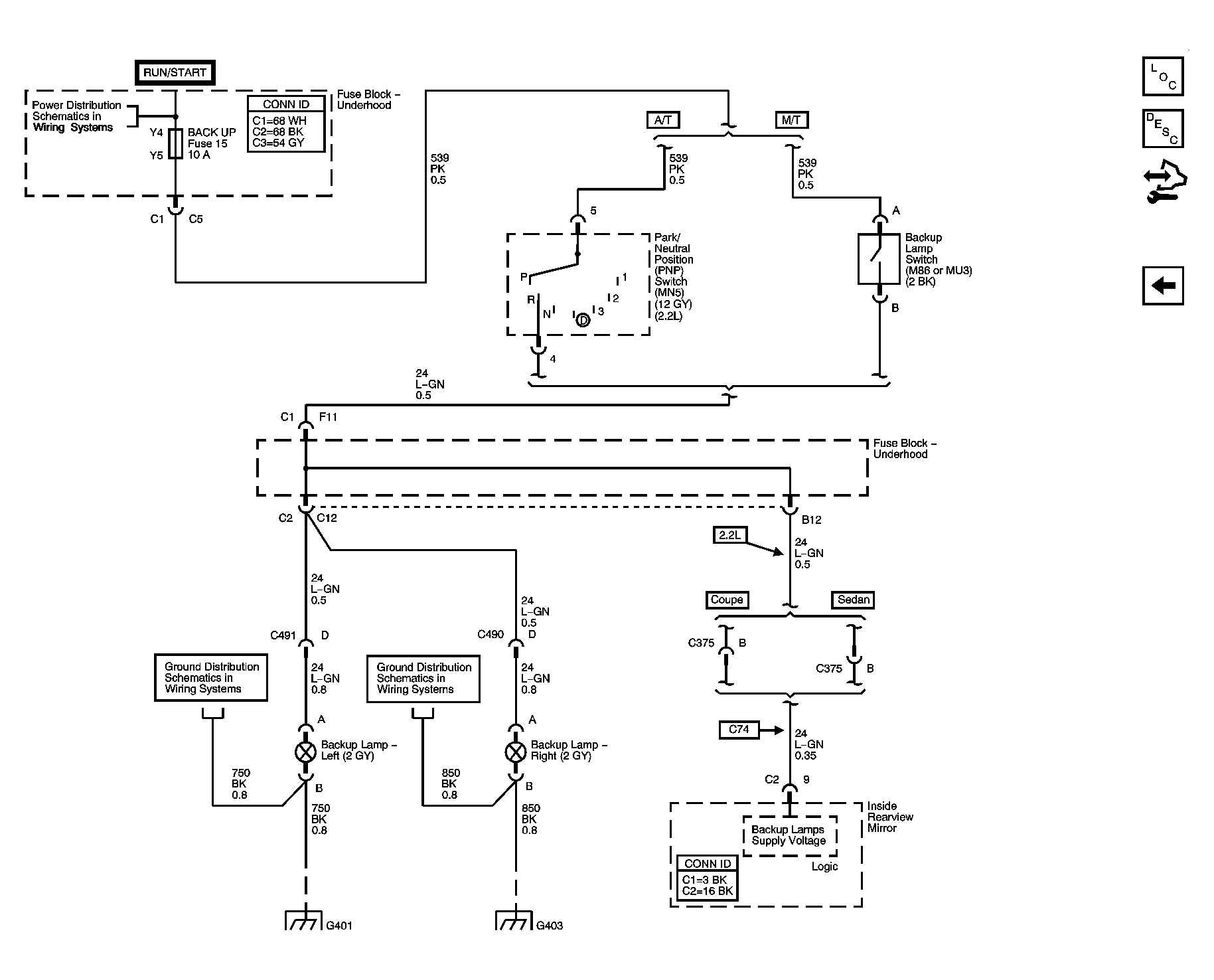

Fig 4: Backup Lamps Schematics
GM1434445Courtesy of GENERAL MOTORS CORP.
